COB 480
LED Strip · RGB Diffuse-Lens
Art-Net RGB LED Strip · Diffuser Lens
ARTNET Enhanced Magic RGB LED Strip 8 Segments with 48 Lights SPI Control Fresnel Type 12mm PCB Width Copper Body
Individually addressable IC RGB LED strip for pixel-mapped accent, contour and signage runs.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the Art-Net RGB LED Strip · Diffuser Lens

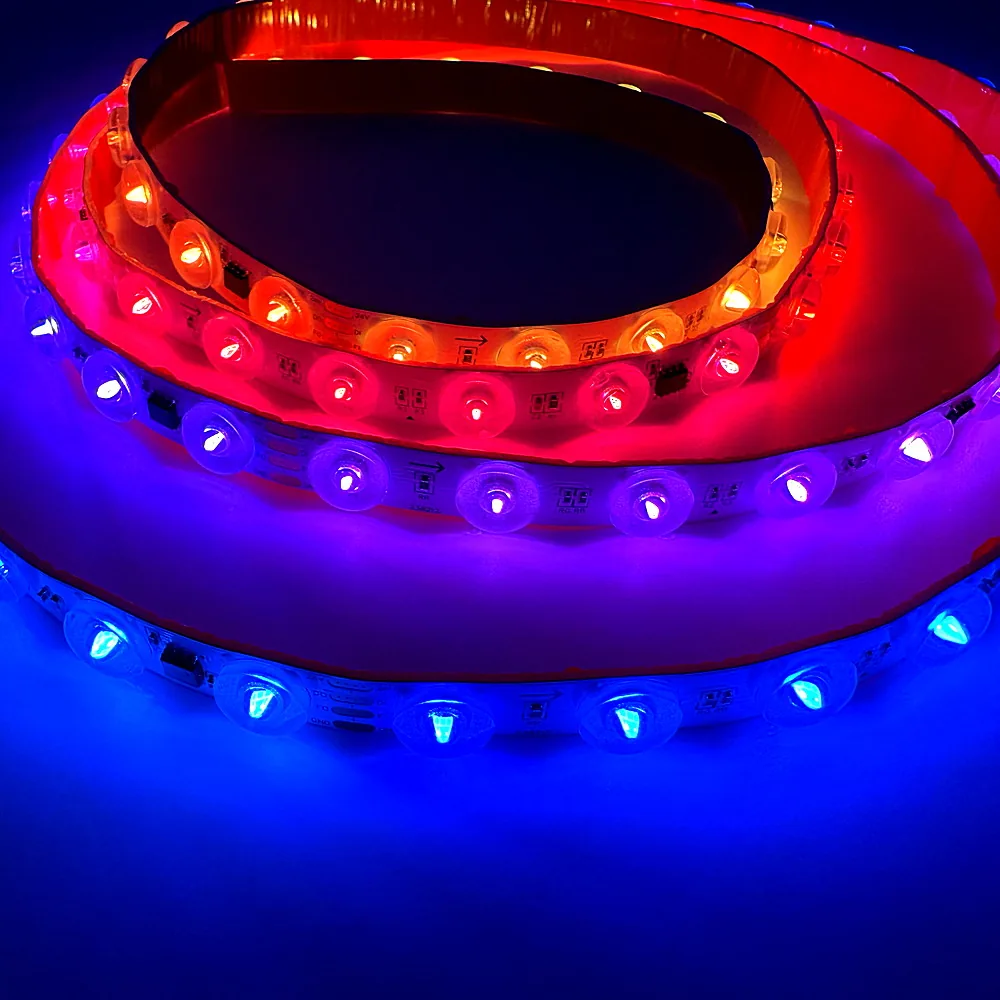

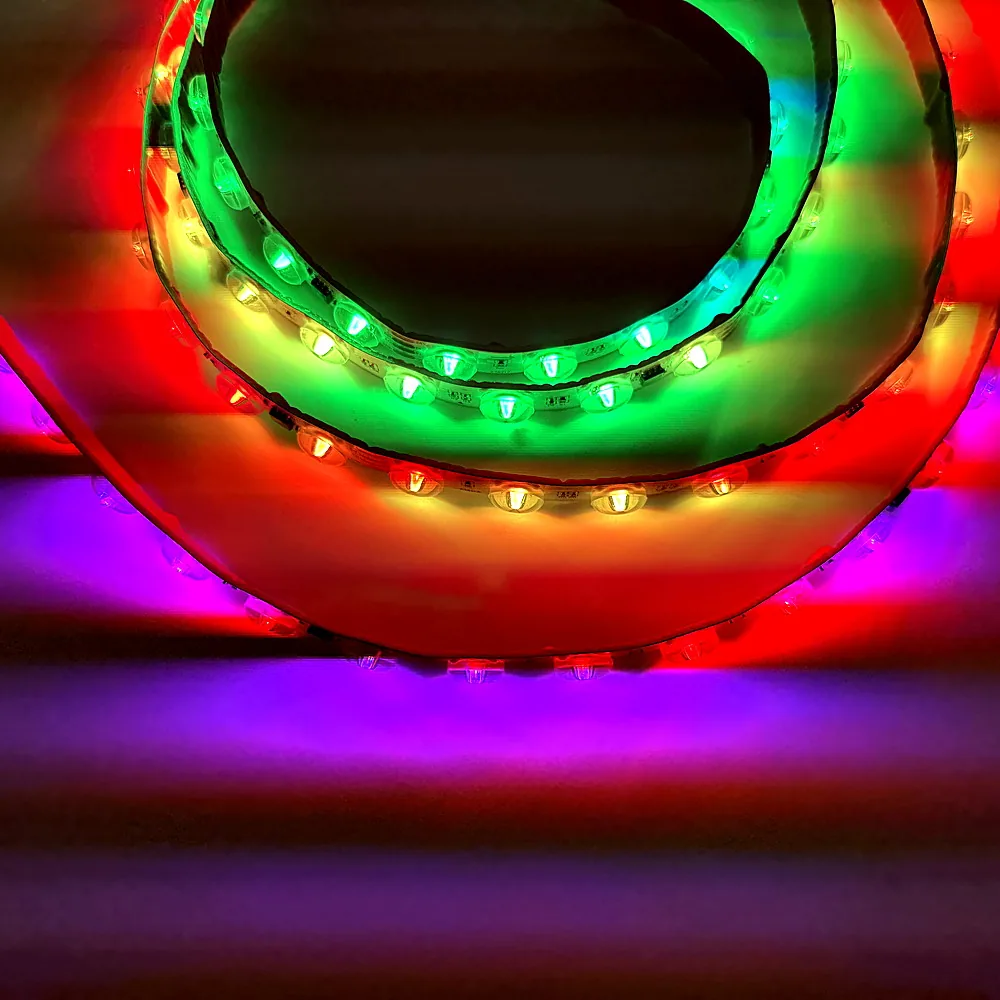

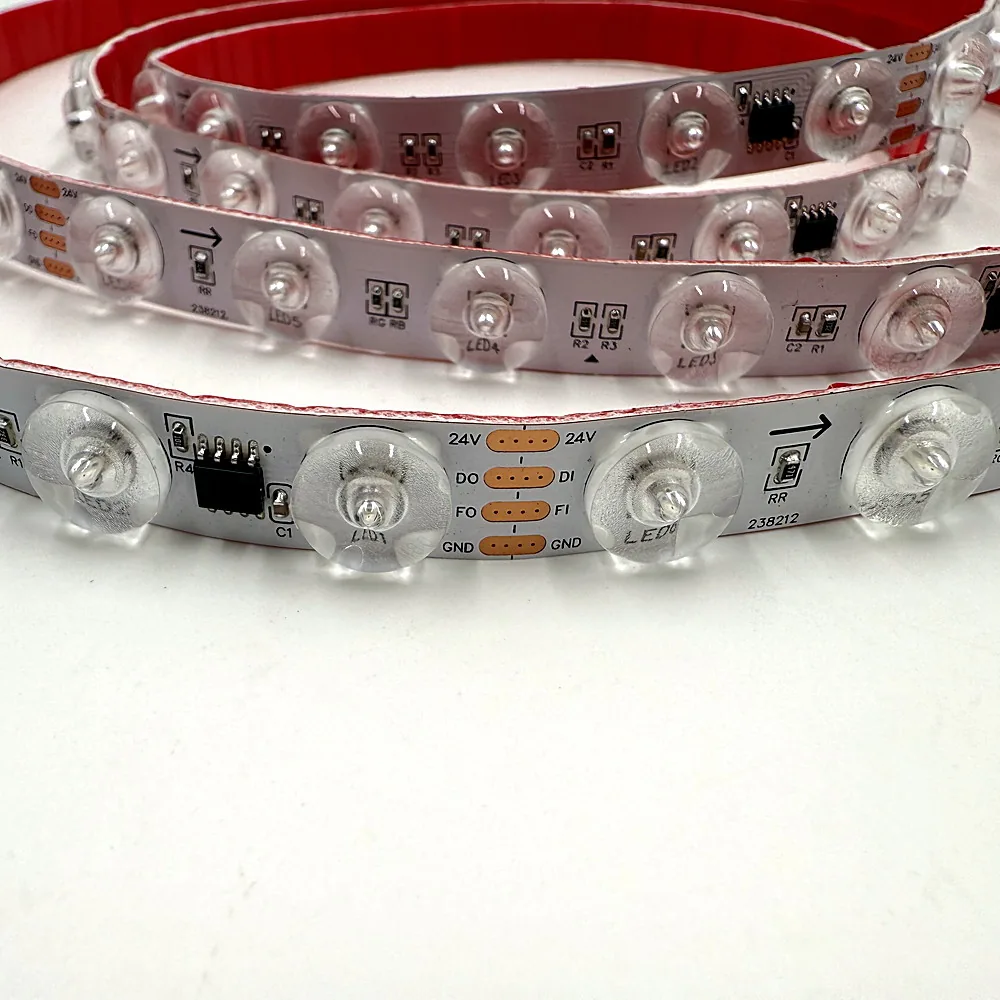

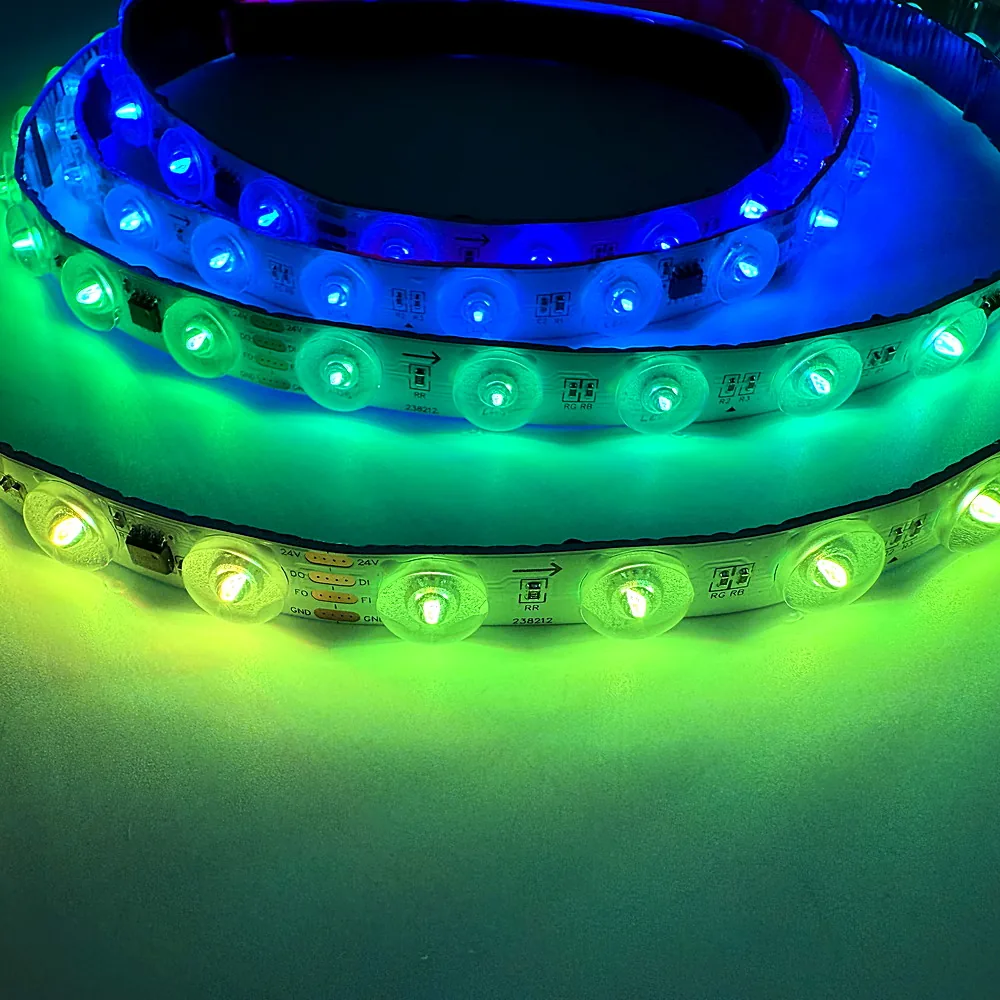

Art-Net RGB LED Strip · Diffuser Lens is an addressable IC RGB LED strip built on SMD5050 emitters at 48/LEDs/M. Each LED is individually addressable, so the strip drives pixel-mapped wash, chase and contour effects.
Control is over RF/WIFI/APP, with WS2811,SM16703 driver IC. It runs on DC24V. A 180° beam angle gives an even spread across the run.
It ships in IP20/IP65/IP67/IP68 and links end-to-end for longer runs. Expect a rated life of 50,000 Hours.
Highlighted features
- Individually addressable pixels for full pixel-mapping and video effects
- IC RGB colour mixing with smooth dimming and gradients
- IP20/IP65/IP67/IP68 sealing for outdoor and wet-location use
- Cuttable and end-to-end linkable
- 180° beam angle for even, wide coverage
Technical parameters
- Control Mode
- RF/WIFI/APP
- Beam Angle
- 180°
- Color
- IC RGB
- Working Temperature
- -20℃~50℃
- Size
- L10000*W10mm
- LED Quantity
- 48/LEDs/M
- IC
- WS2811,SM16703
- LED Type
- SMD5050
- Lifespan
- 50,000 Hours
- Voltage
- DC24V
- IP Grade
- IP20/IP65/IP67/IP68
Model RGB Diffuse-Lens — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.
OEM & ODM — built to your spec.
Cut-to-length: fixtures are built to the run length your project needs.
Driver IC selection: WS2811,SM16703 to match your controller ecosystem.
Control protocol: configurable for RF/WIFI/APP.
Ingress protection: IP20/IP65/IP67/IP68.
