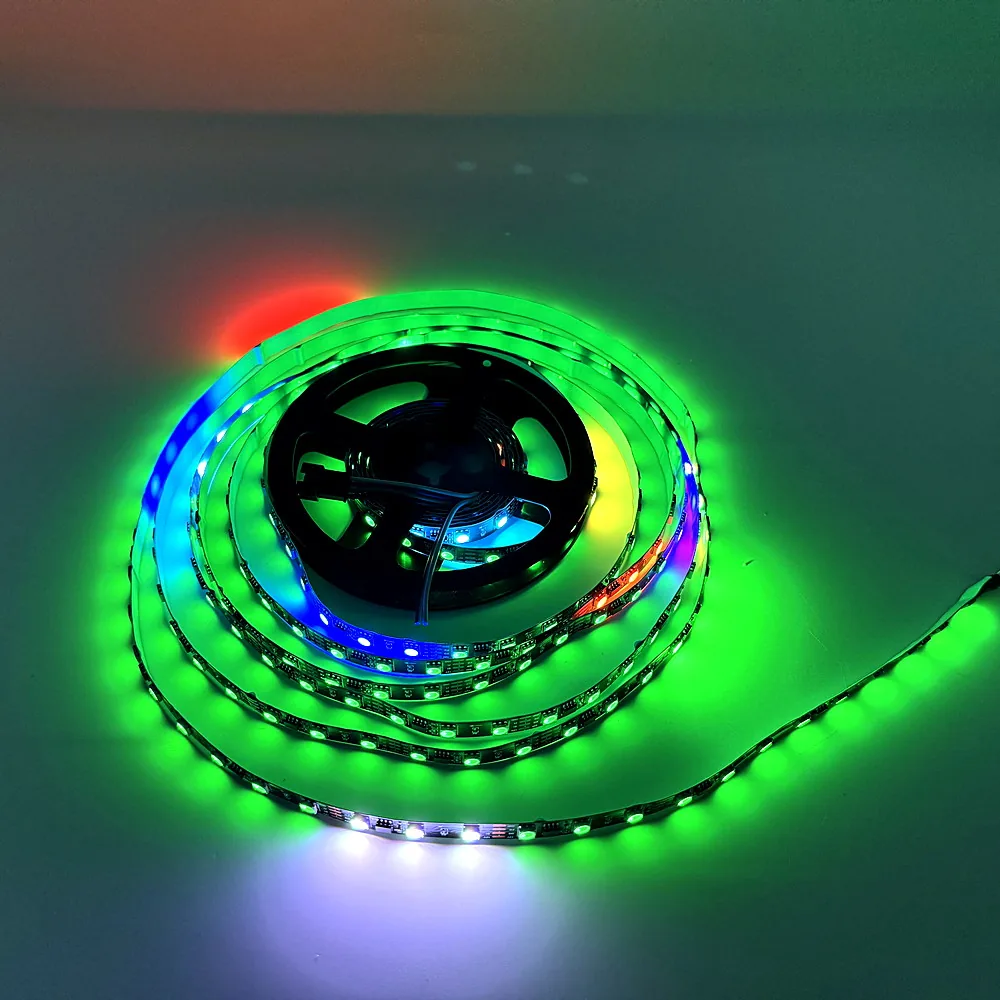

PI-10060ICRGB-50S
10mm Addressable RGB LED Strip
- Size L5000*W10mm
- Color IC RGB
- Control Mode RF/WIFI/APP
Product Category
LED Strip
Compare PILEDS addressable pixel LED strips and non-addressable LED strips for signs, coves and architectural lighting. The range includes RGB, RGBW, tunable-white and COB models. Start with the required lighting effect, then match the control interface, voltage, pixel grouping and installation conditions to the exact model. Long runs still need a verified power-feed layout; higher voltage does not eliminate voltage drop.
- LED Density 60 / 90 / 96 LED/m
- Input Voltage DC 24V / 48V
- Power 14 – 21.6 W/m
- IP Rating IP20 / IP65
Get a Quote20 models · OEM / ODM welcome
LED Strip range
Real factory models — pick one, or tell us your spec and we'll match the SKU.

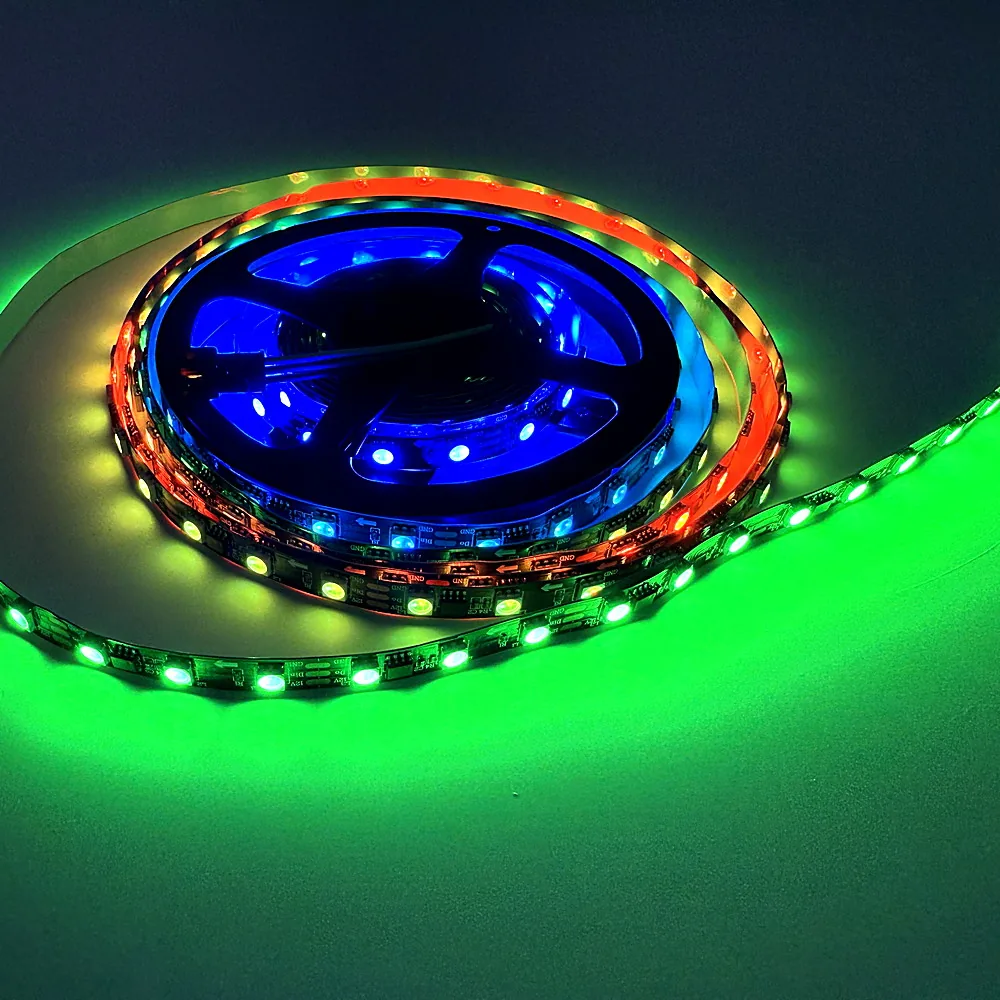

PI-10060ICRGB-50
10mm RGB LED Strip
- Size L5000*W10mm
- Color IC RGB
- Control Mode RF/WIFI/APP

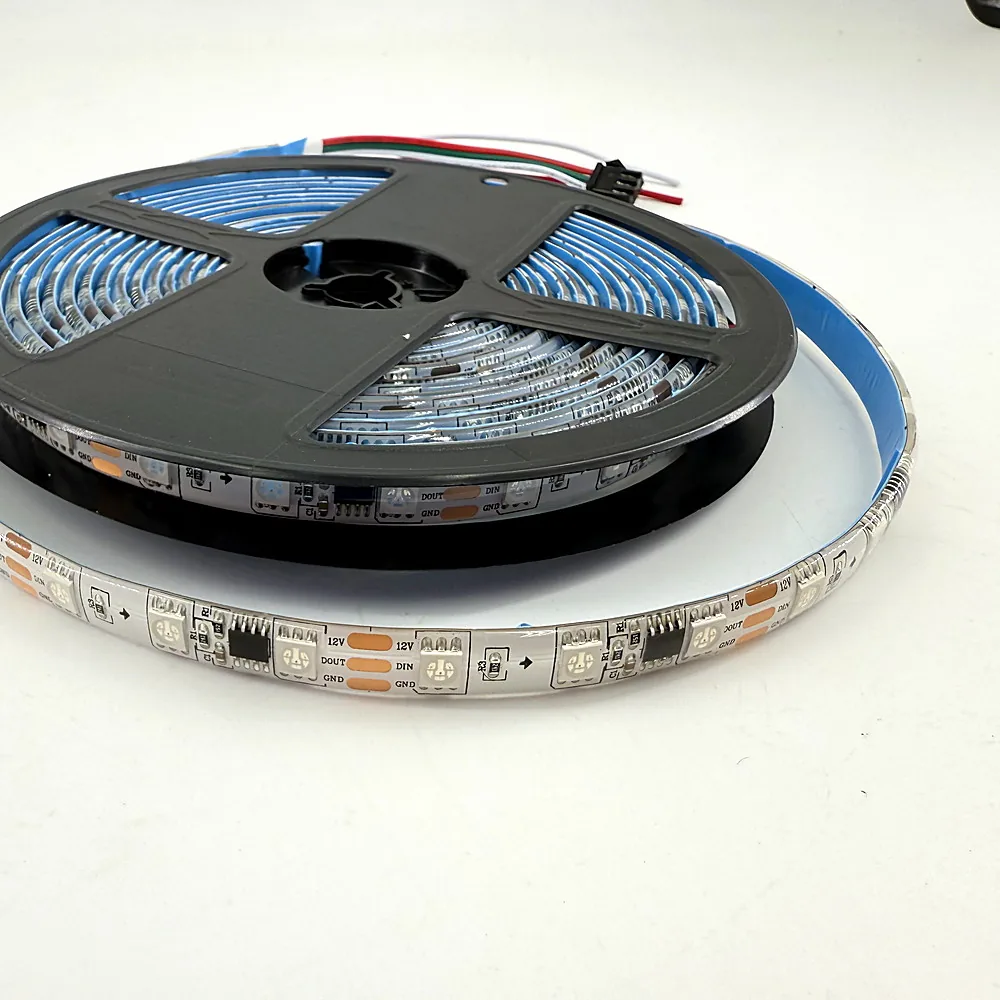

PI-10060ICRGB-50
Epoxy RGB LED Strip
- Control Mode RF/WIFI/APP
- LED Type SMD5050
- IP Rating IP20/IP65/IP67/IP68

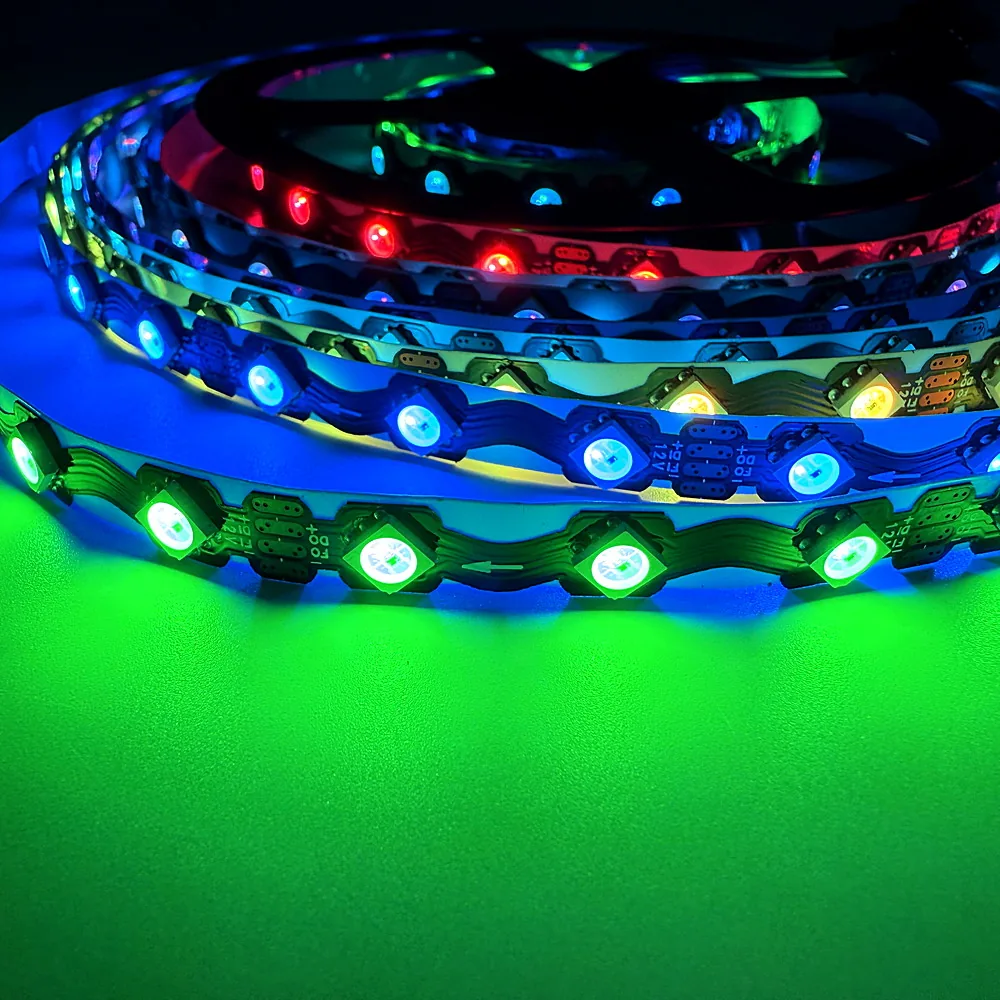

PI-10060ICRGB
S-Shape RGB LED Strip
- Color SPI-RGB
- Control Mode DMX/SD Card/RF/WIFI/APP
- LED Type SMD5050

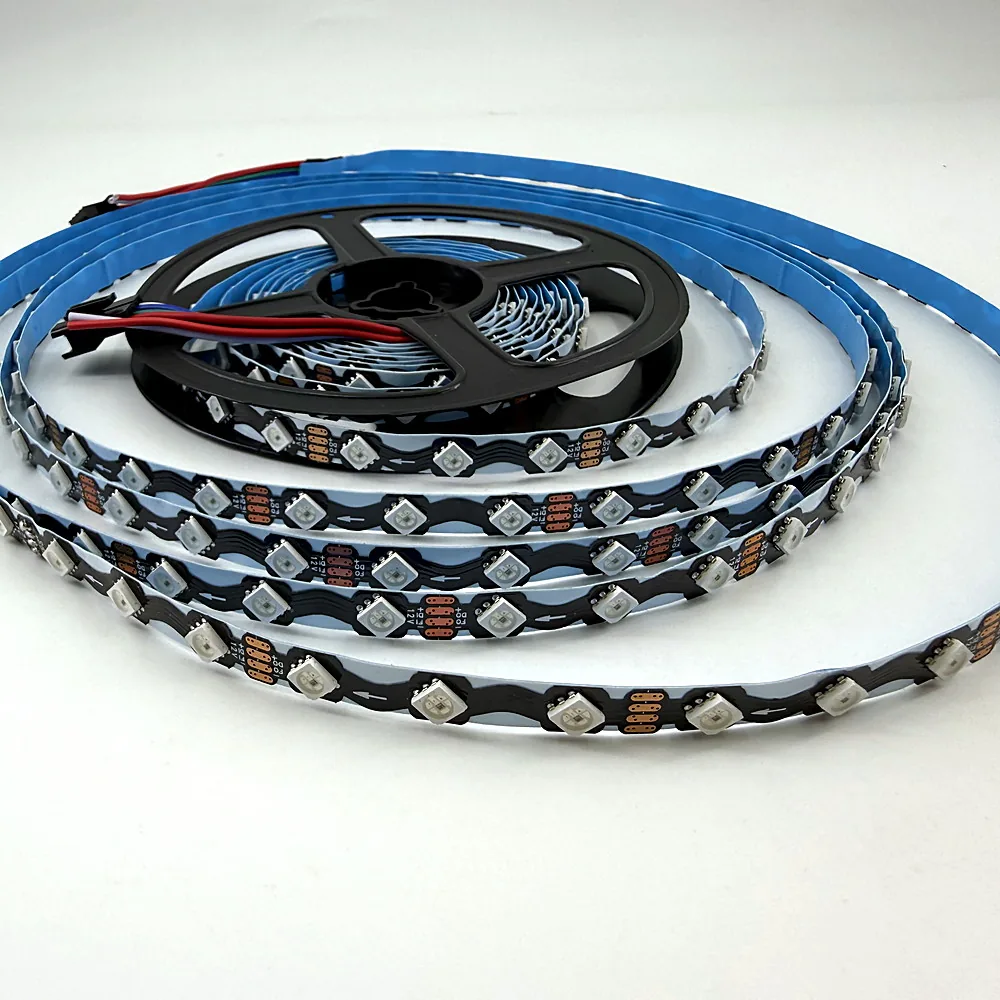

WS2815 S-Shape
S-Shape Bendable RGB Pixel LED Strip
- Voltage DC12V
- LED Type SMD5050
- Color IC RGB

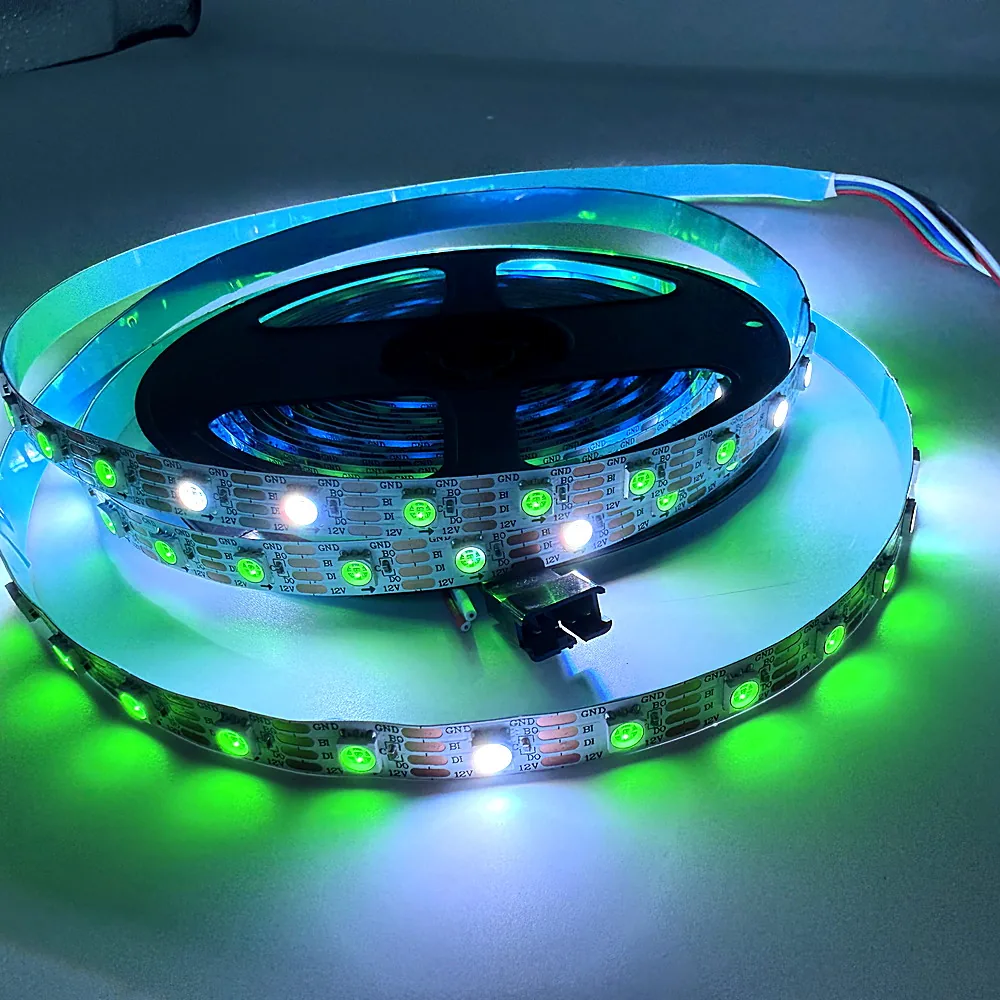

WS2815 60px
WS2815 Addressable RGB LED Strip
- LED Type SMD5050
- Color IC RGB
- LED Quantity 60/LEDs/M

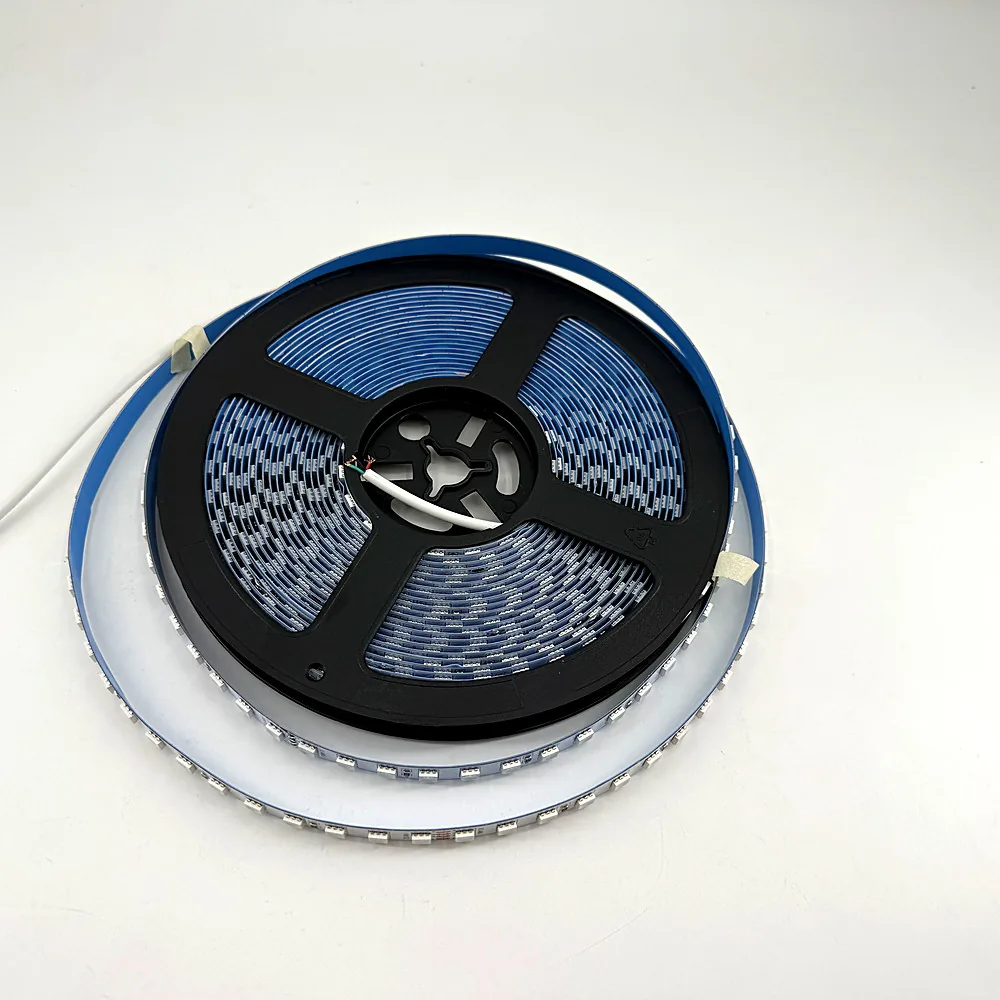

DC48V 90px
DC48V Long-Run RGB Pixel LED Strip
- Voltage DC48V
- Led SMD5050
- Number Of Leds 90LED/M

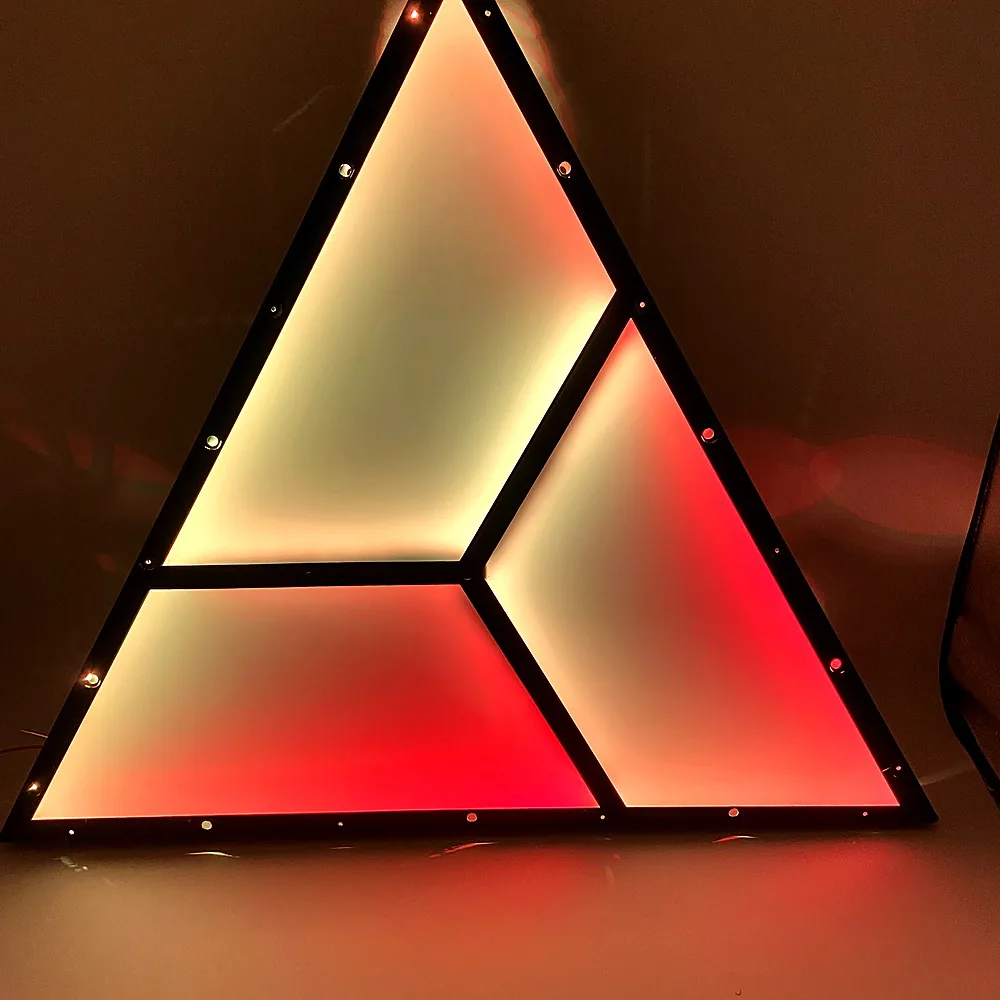

RGBIC Triangle
RGBIC Triangle Light-Guide LED Panel
- Input Voltage DC12V
- Lifespan 100,000 Hours
- Color Temperature RGB IC
IP68 RGBW
IP68 Addressable RGBW LED Strip
- Voltage DC12V
- LED Type SMD5050
- LED Quantity 60/LEDs/M (60IC/M, 60pixel/M)

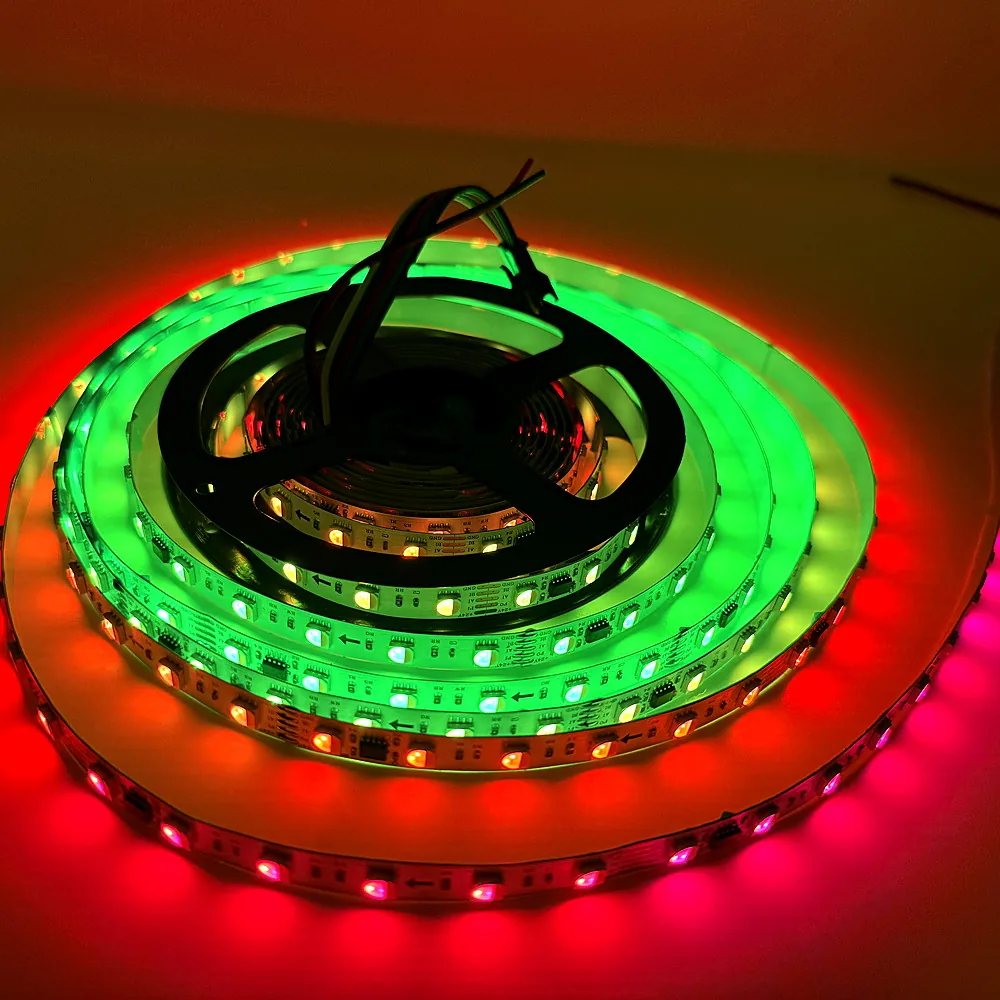

DMX RGBW
Waterproof DMX RGBW Pixel LED Strip
- Voltage DC 12V
- Input Voltage DC12V
- LED Type SMD 5050

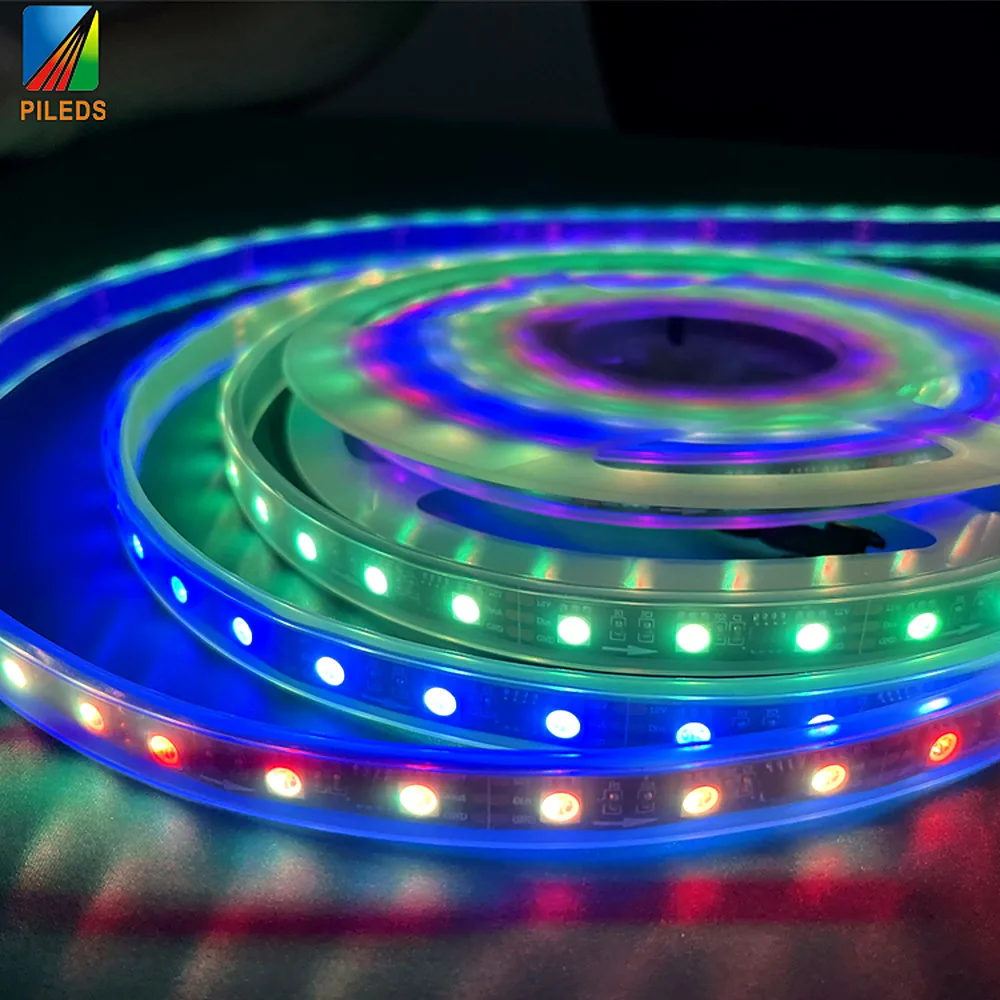

RGB Sleeve
Sleeve-Waterproof RGB Pixel LED Strip
- Voltage DC 12V
- LED Type SMD 5050RGB
- Color Color Changing RGB

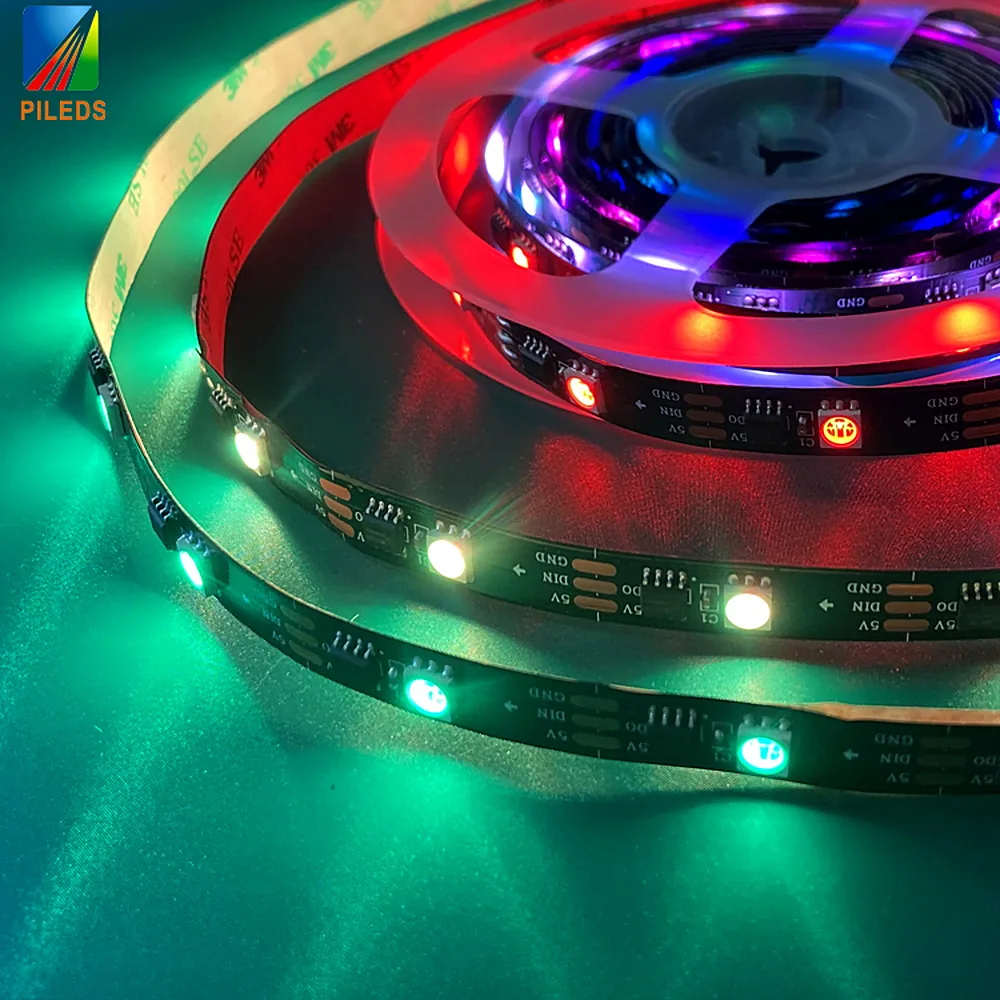

Dual-Signal IC
Dual-Signal Dream-Color LED Strip
- Voltage DC12V
- LED Type SMD5050
- Color SPI-RGB

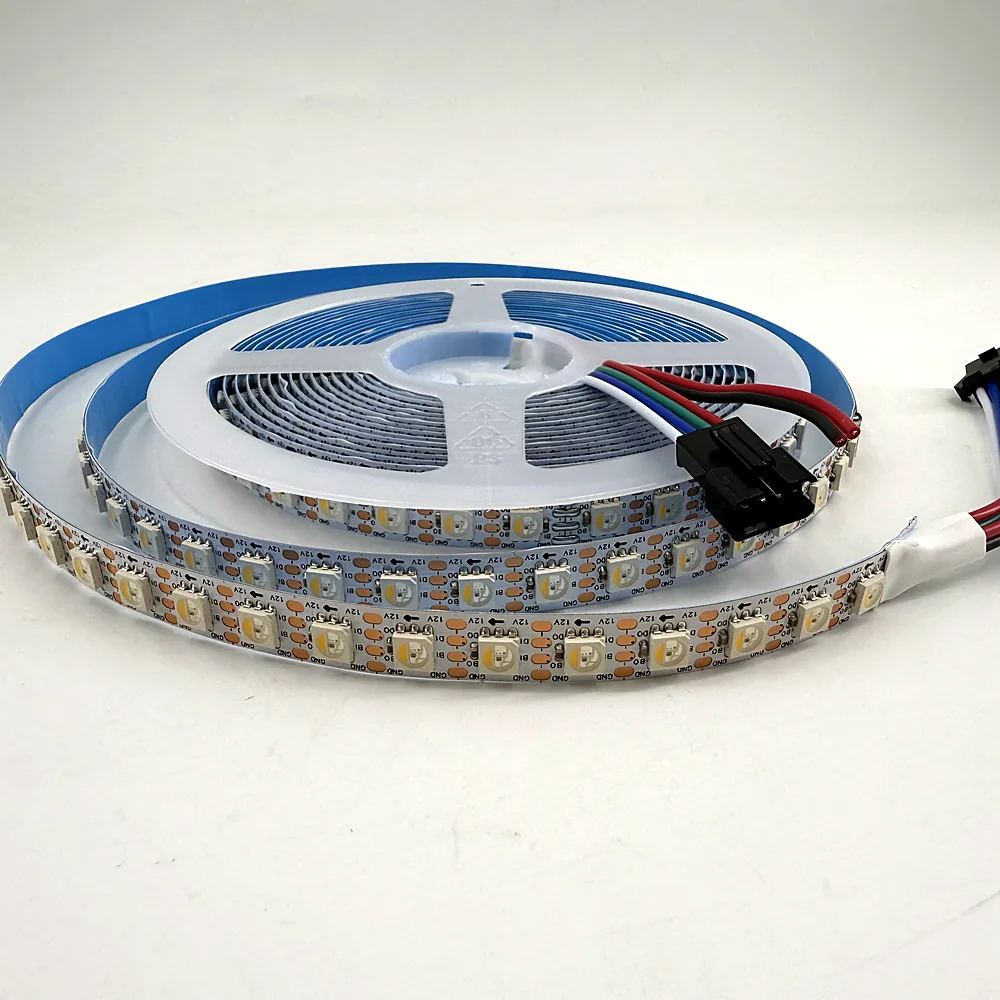

SK6812 RGBW
SK6812 RGBW Addressable LED Strip
- Voltage DC5V (RGBW)
- LED Type SMD5050
- Color RGBW

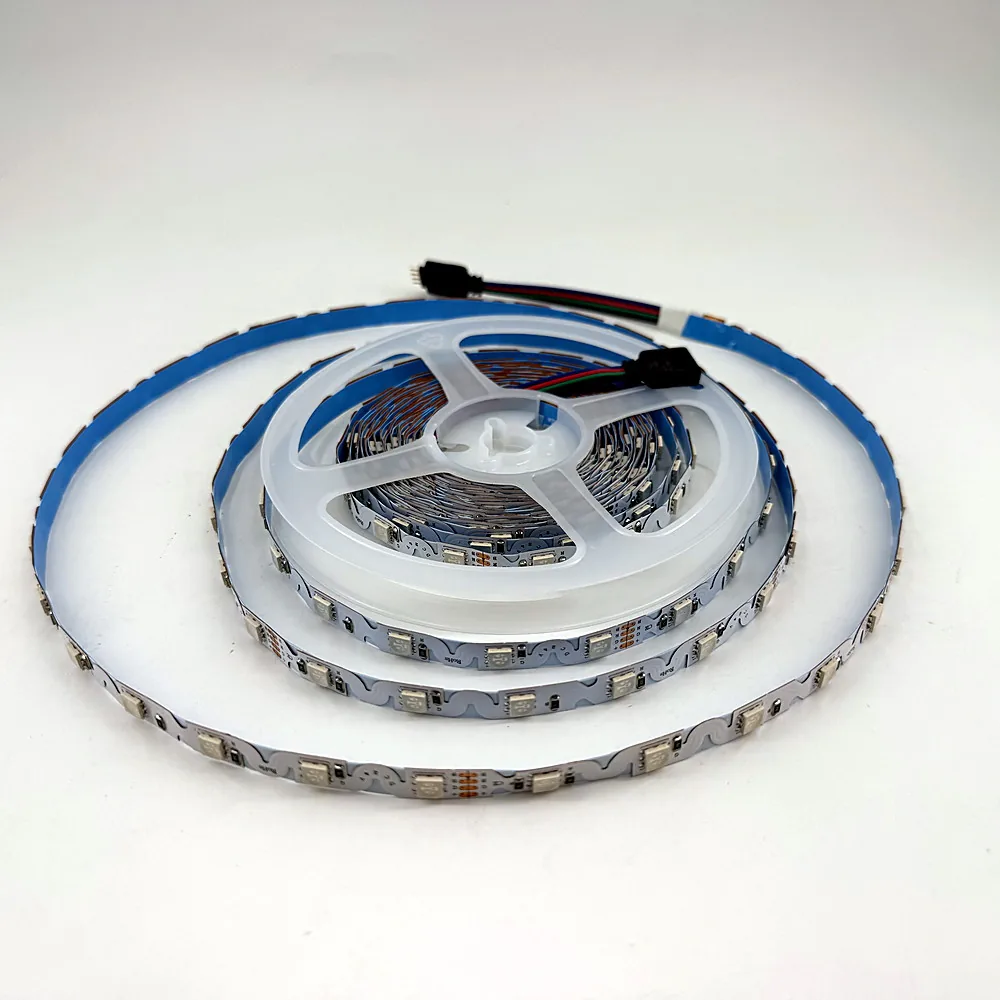

DC24V RGB S-Shape
DC24V 5050 RGB S-Shape LED Strip
- Voltage DC24V
- Color RGB
- Beam Angle 120 Degree

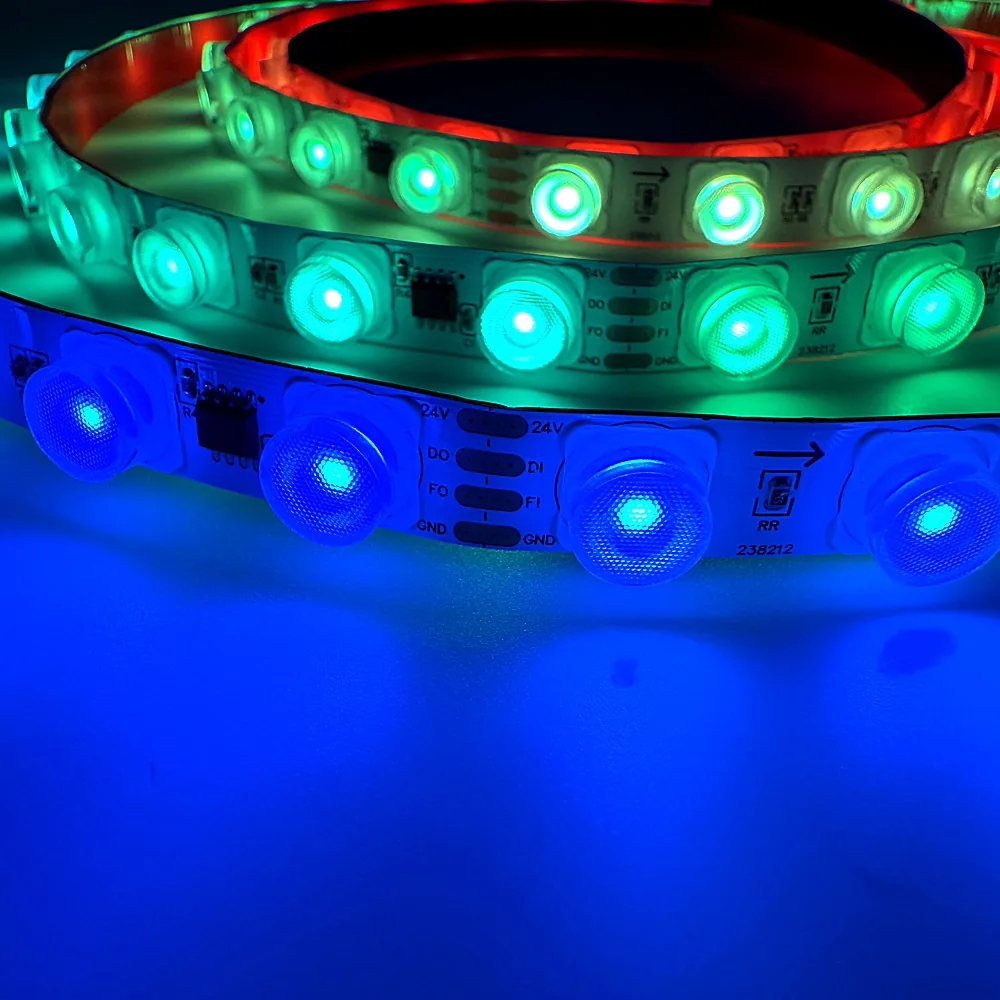

RGB Side-Lens
24V RGB Pixel LED Strip · Side Lens
- Voltage DC24V
- LED Type SMD5050
- LED Quantity 48/LEDs/M

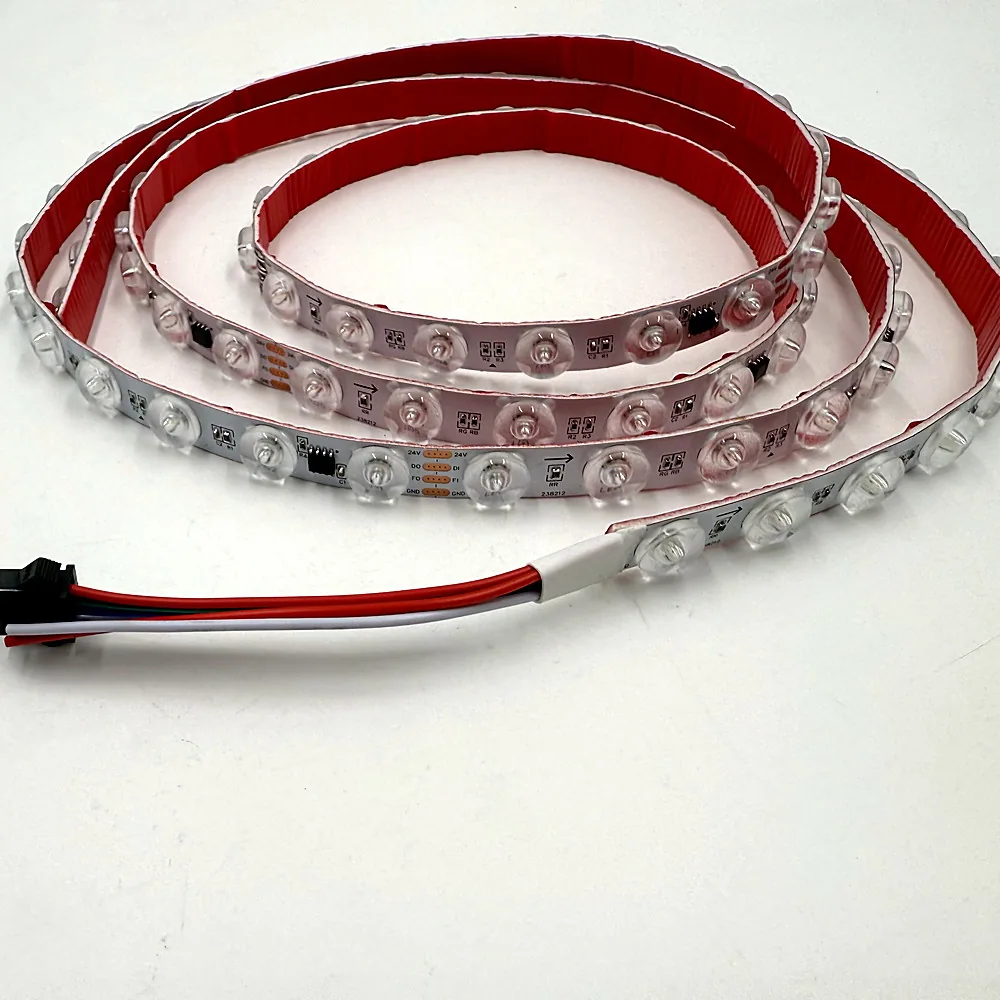

RGB Diffuse-Lens
Art-Net RGB LED Strip · Diffuser Lens
- Voltage DC24V
- LED Type SMD5050
- Color IC RGB

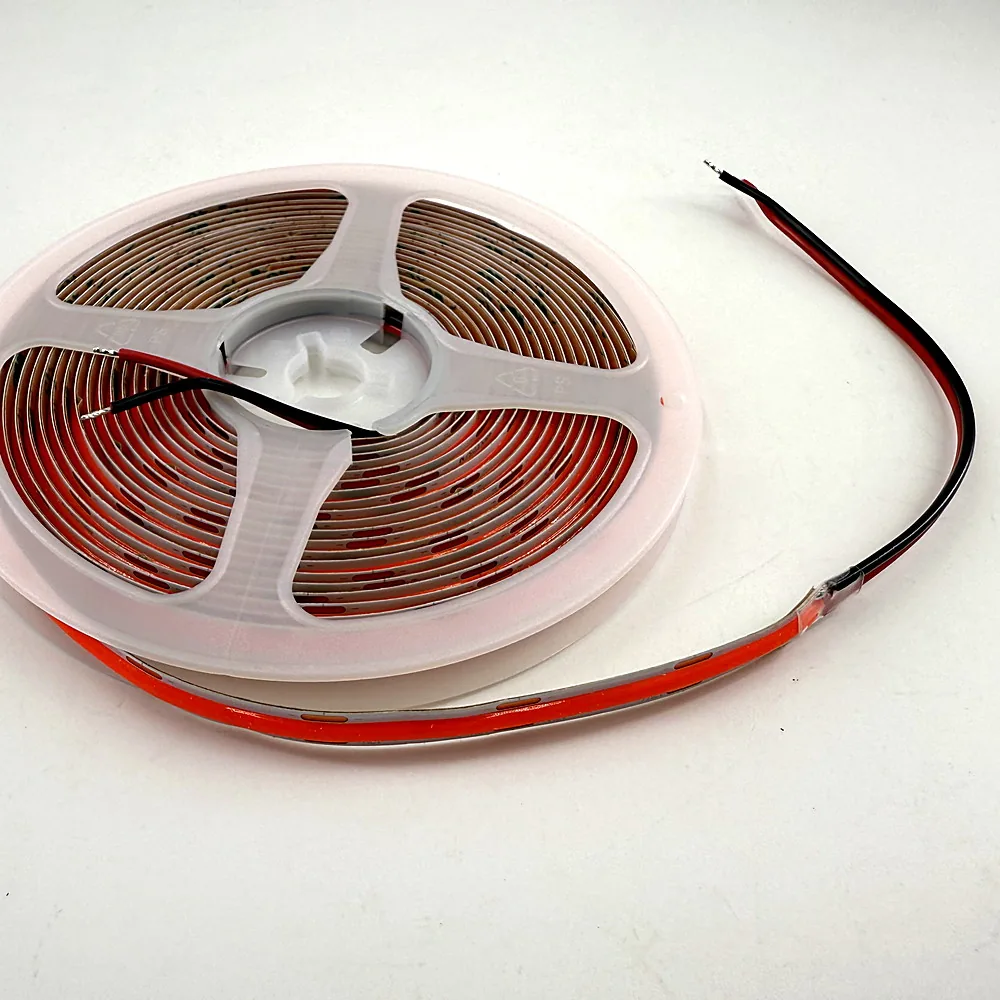

COB 480
COB Single-Color LED Strip
- Voltage DC 12V/DC24V
- LED Type COB LED
- LED Quantity 320LEDS/M, 480 LEDs/m

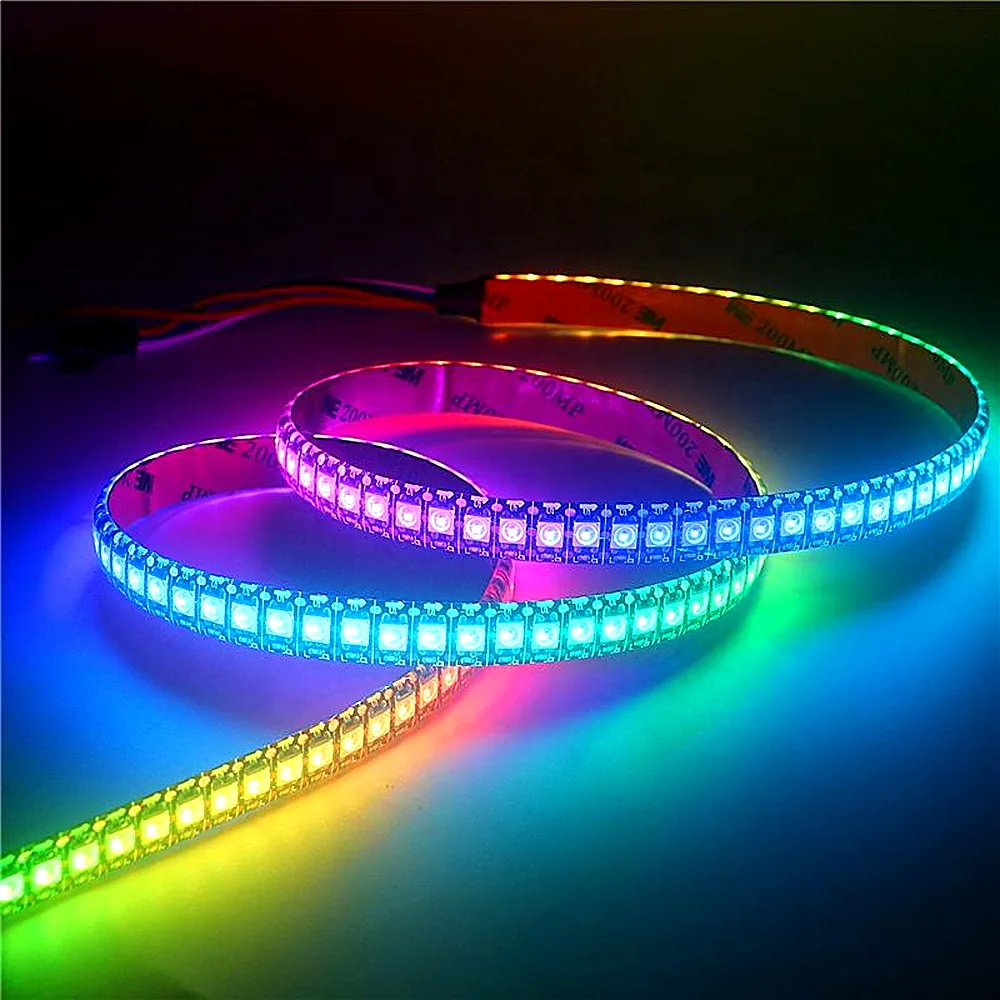

SK6812 144px
144-Pixel SK6812 RGB LED Strip
- LED Type SMD5050
- Color FULL-RGB
- LED Quantity 144 LEDs/M

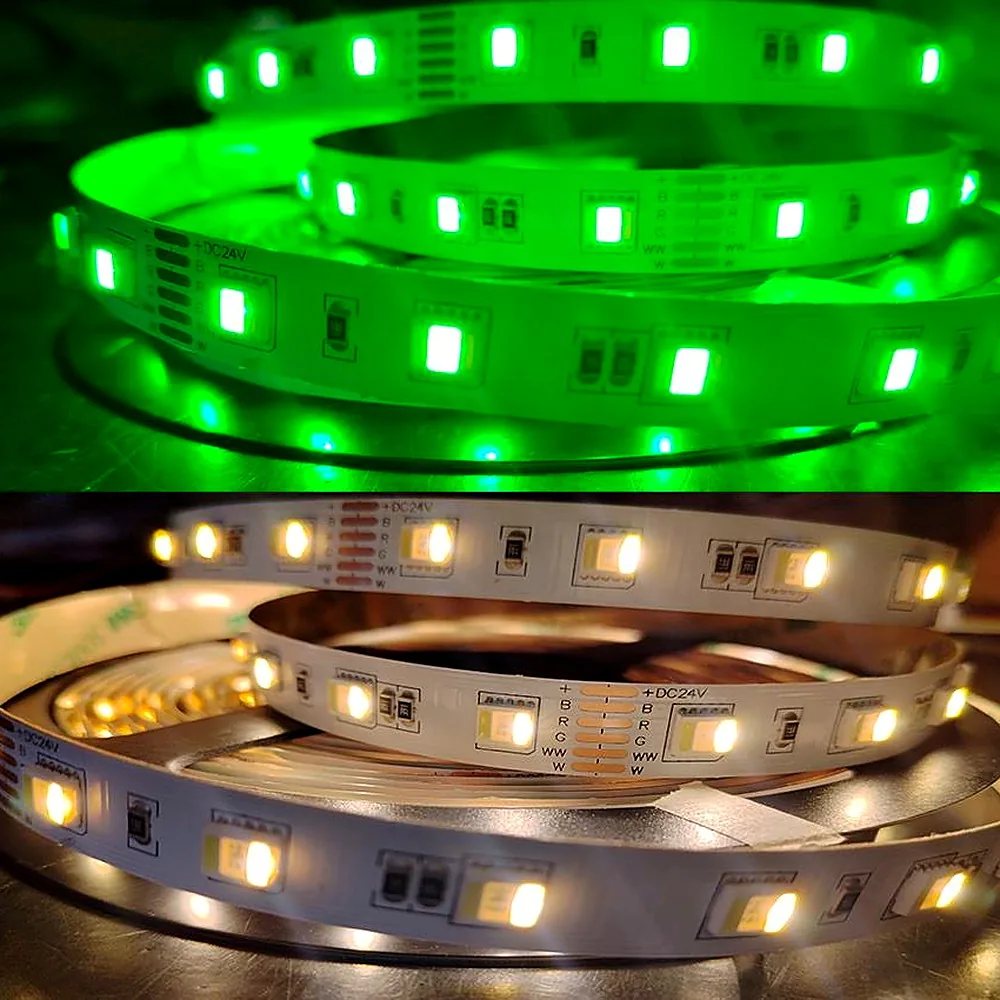

RGBCCT 5in1
5050 RGBCCT 5-in-1 LED Strip
- Voltage DC24V
- Led SMD5050 5 In 1
- Color RGBWWW

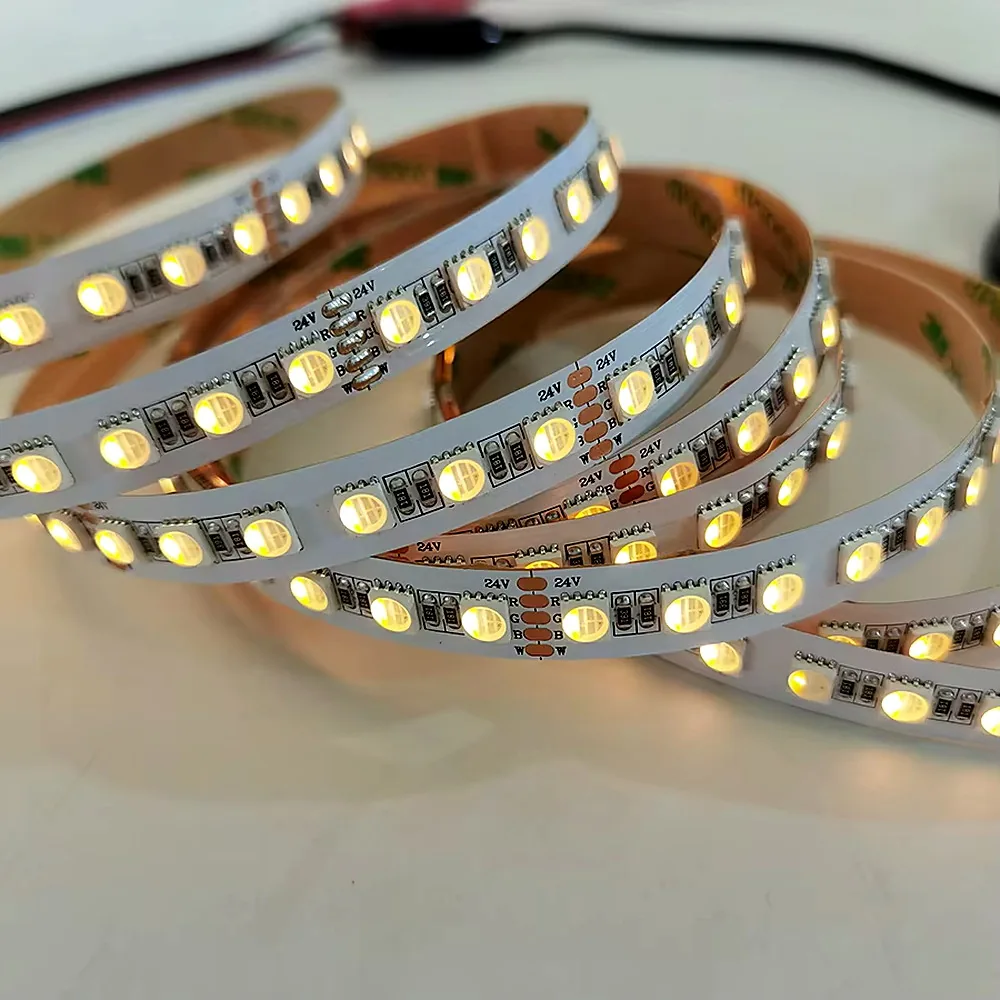

RGBWW 4in1
5050 RGBWW 4-in-1 LED Strip
- Voltage DC12V / DC24V
- LED Type SMD5050
- Color RGBWW
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Payment
- T/T
- Delivery
- 5–7 days
- Warranty
- 2 years
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Selection guide
Choose the right led strip configuration
Use these decisions to narrow the model range before controller, power, cabling, and mounting quantities are engineered.
Lighting effect and color channels
Whole-run dimming or pixel effects; RGB, RGBW or tunable white
Choose uniform color or white-light dimming for the whole run, or independently controlled pixels for animation. Confirm the ordered color channels and white-light requirements; a color name alone does not identify the control interface.
Strip interface and controller output
Non-addressable dimming, SPI pixel data or DMX512 by model
Match the exact strip IC or DMX interface to the controller output, channel order and wiring. Art-Net belongs on the network side of a compatible controller; it is not proof that a strip accepts Ethernet directly.
Voltage and power-feed layout
Model-rated supply, run length, cable and feed locations
Use the voltage and wattage specified for the ordered model. Check each run, cable length, conductor size and feed location for voltage drop and loading. Do not treat a higher-voltage strip as an unlimited single-feed run.
LED density, pixel grouping and cut points
LEDs per meter, pixels per meter and cut interval are different
Specify the visual resolution and physical cut lengths separately. Multiple LEDs may form one controllable pixel. Confirm the model datasheet and sample mapping rather than calculating pixel count from LED count alone.
Installation and finished assembly
Indoor or exposed use; profile, connectors and end seals
Provide the mounting path, bend direction, cooling arrangement and exposure conditions. Verify the exact assembly rating, cut-end sealing and connector details; a strip rating alone does not qualify the completed installation.
Built for these venues.
Pairs well with
Questions to resolve before ordering
How do I choose between addressable and non-addressable LED strips?
Choose non-addressable control when the connected run should dim or change color together. Choose an addressable model when the design needs separately controlled pixels. Then confirm the exact IC or DMX interface, color channels, pixel grouping and controller output for that model.
Can I select an LED strip by voltage alone?
No. Voltage must match the ordered strip, but it does not establish the control interface, white-light channels, power per meter, cut interval or allowable feed layout. Provide the required effect, exact run lengths, cable distances and installation conditions so the strip, controller and power distribution can be reviewed together.
Are LEDs per meter the same as pixels per meter?
Not necessarily. LED density describes the physical emitters; pixel density describes independently controlled groups. A pixel may contain one or several LEDs. Request the IC, LEDs per pixel, cut interval and channel mapping for the exact model before setting the controller patch.
Does a 48 V strip remove the need to check voltage drop?
No. Supply voltage is only one input. Load, strip construction, run length, cable resistance, connections and feed locations still affect voltage at the load. Use a preliminary calculation and confirm the proposed layout against the ordered model before installation.
What should I send for model confirmation and a quotation?
Send a model link or required lighting effect, color and white-light requirements, total length and individual runs, pixel density, control platform, supply, cable distances, mounting details, exposure conditions, project country and required delivery date. Ask for the exact model datasheet, wiring and cut-point drawing, sample configuration, and written quotation terms. MOQ, lead time and warranty should be confirmed for the proposed order.
