WS2815 60px
LED Strip · WS2815 S-Shape

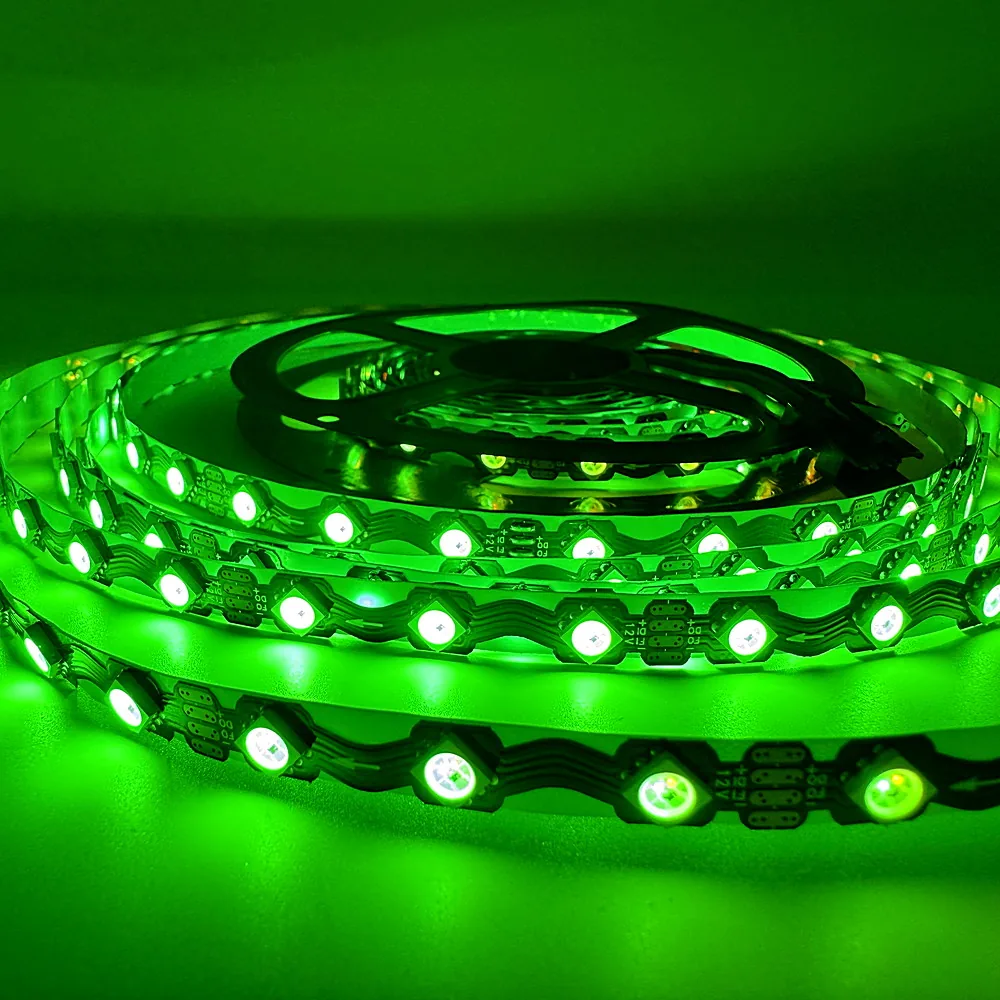

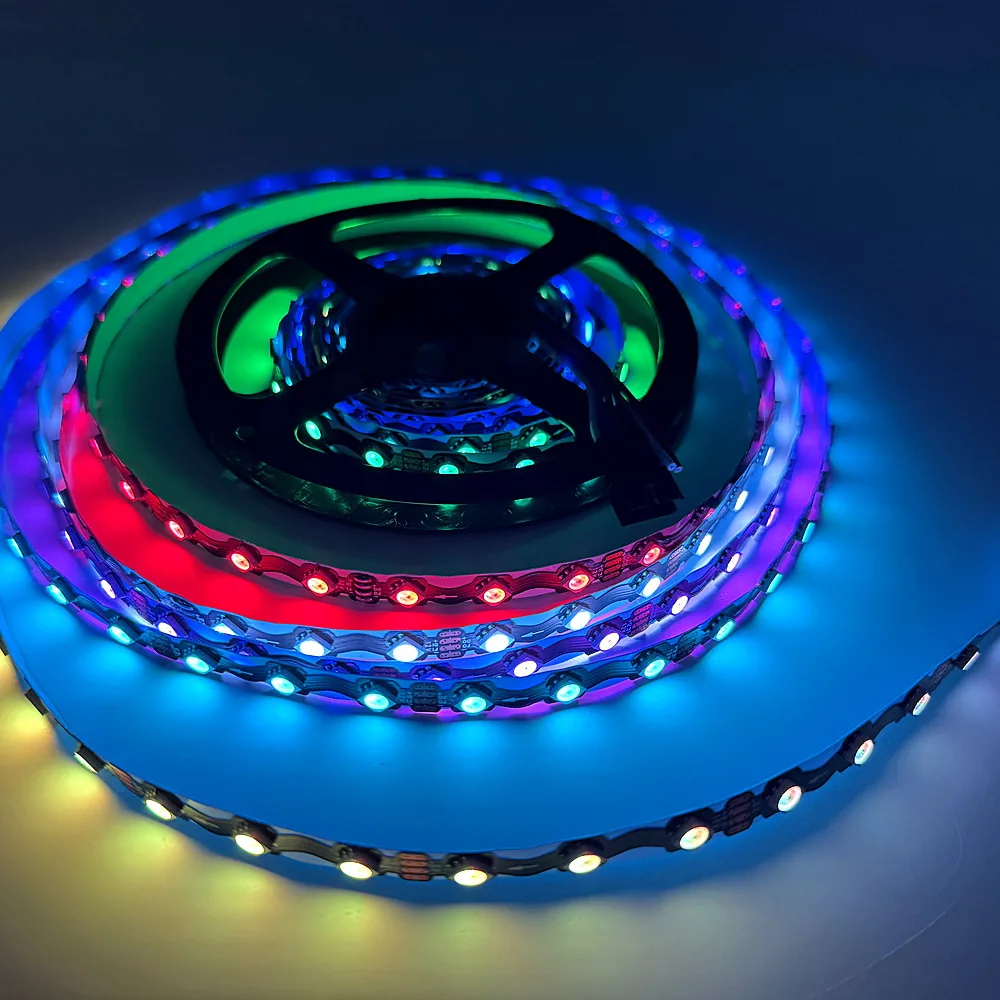

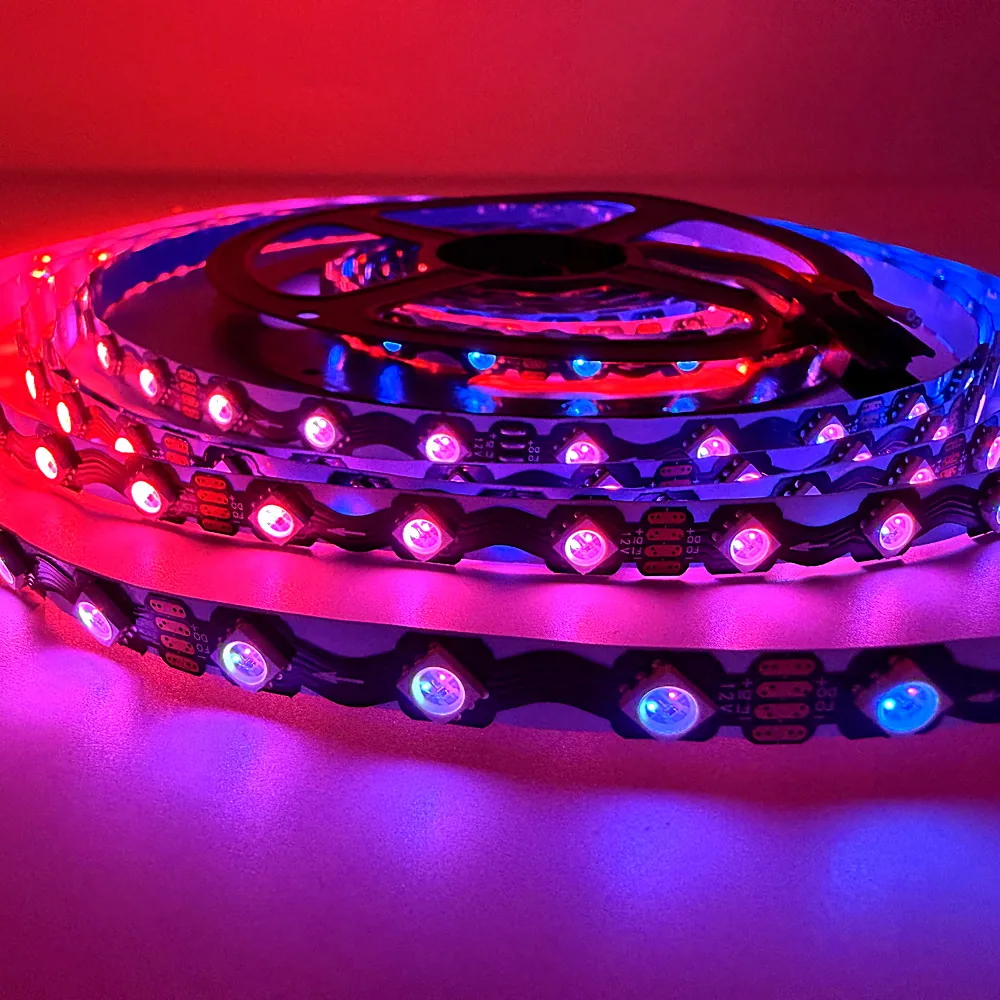

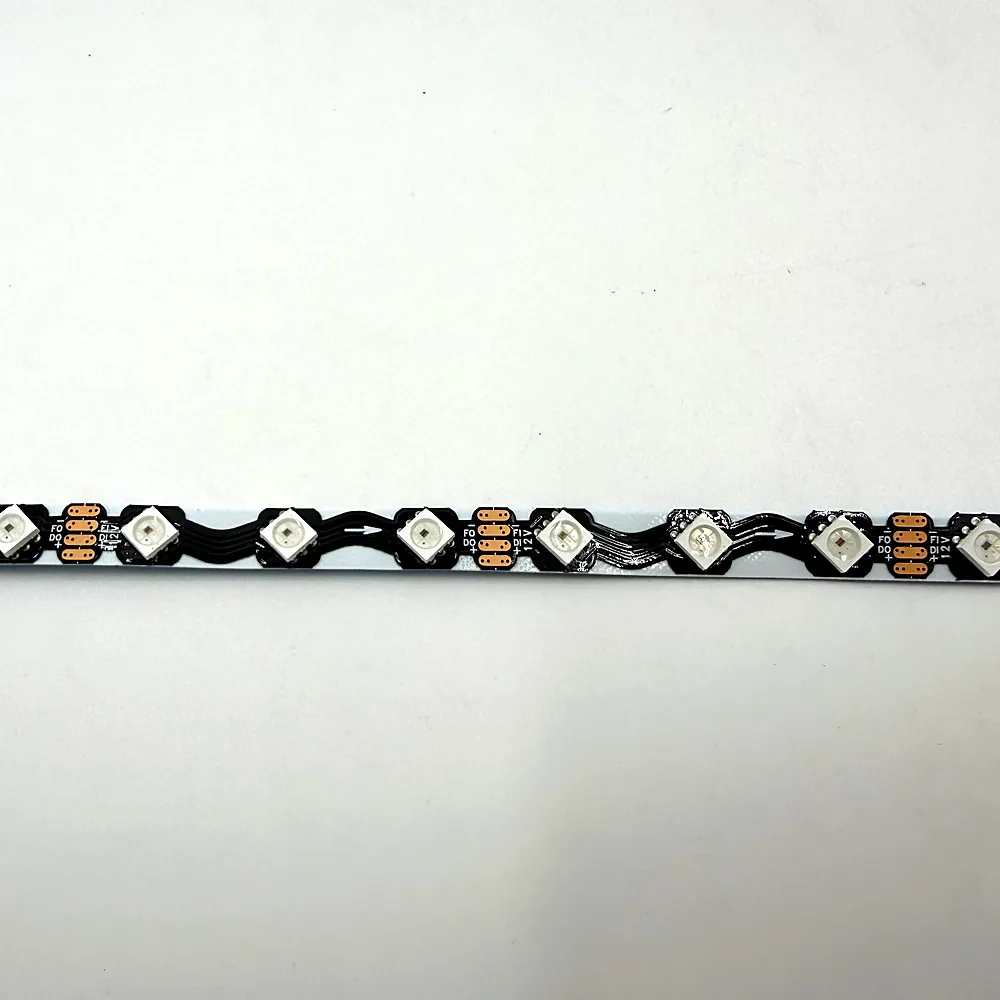

S-Shape Bendable RGB Pixel LED Strip
PILEDS S Shaped Zigzag BENDABLE 12V Smart IC Pixel Addressable RGBW RGB Sign Letter GS8208 RT1809 SK6813 WS2815 LED Strip
Individually addressable IC RGB LED strip for pixel-mapped accent, contour and signage runs.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the S-Shape Bendable RGB Pixel LED Strip
S-Shape Bendable RGB Pixel LED Strip is an addressable IC RGB LED strip built on SMD5050 emitters at 60/LEDs/M. Each LED is individually addressable, so the strip drives pixel-mapped wash, chase and contour effects.
Control is over RF/WIFI/APP, with WS2815 driver IC. It runs on DC12V. A 120° beam angle gives an even spread across the run.
It ships in IP20 and is cuttable every 1LED and links end-to-end for longer runs. Expect a rated life of 50,000 Hours.
Highlighted features
- Individually addressable pixels for full pixel-mapping and video effects
- IC RGB colour mixing with smooth dimming and gradients
- IP20-rated for clean indoor installs
- Cuttable every 1LED and end-to-end linkable
- 120° beam angle for even, wide coverage
Technical parameters
- Cutting Unit
- 1LED
- LED Quantity
- 60/LEDs/M
- Voltage
- DC12V
- Color
- IC RGB
- IC
- WS2815
- Control Mode
- RF/WIFI/APP
- LED Type
- SMD5050
- Lifespan
- 50,000 Hours
- Working Temperature
- -20℃~50℃
- Beam Angle
- 120°
- IP Grade
- IP20
Model WS2815 S-Shape — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.
OEM & ODM — built to your spec.
Cut-to-length: fixtures are built to the run length your project needs.
Driver IC selection: WS2815 to match your controller ecosystem.
Control protocol: configurable for RF/WIFI/APP.
Ingress protection: IP20.
