AC Mine Strip
Mine LED Light Strip · AC36V Mine Strip FX

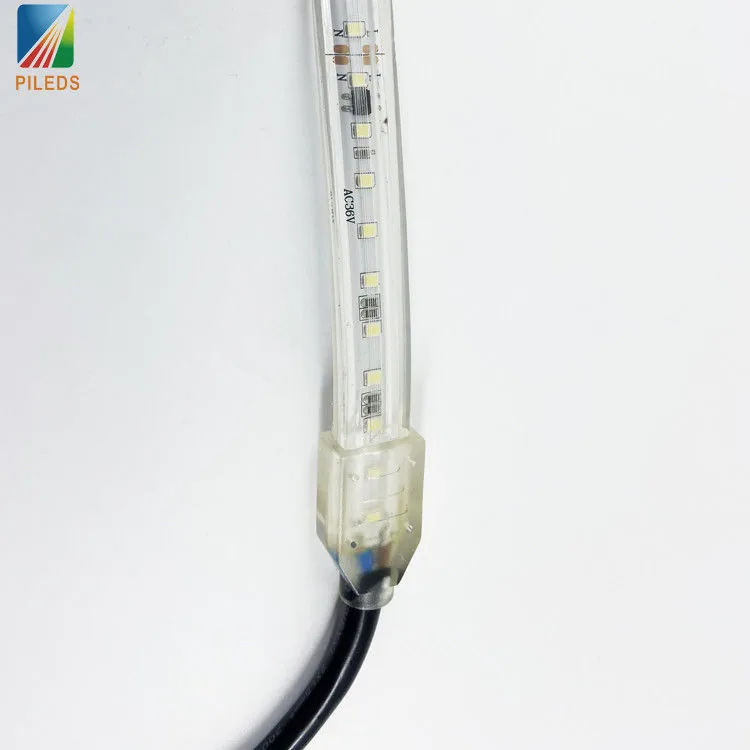

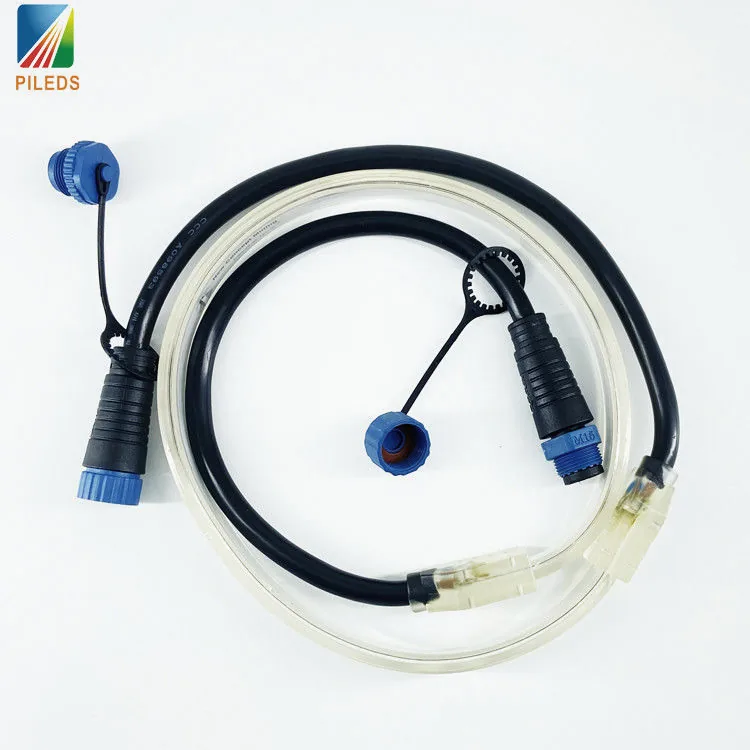

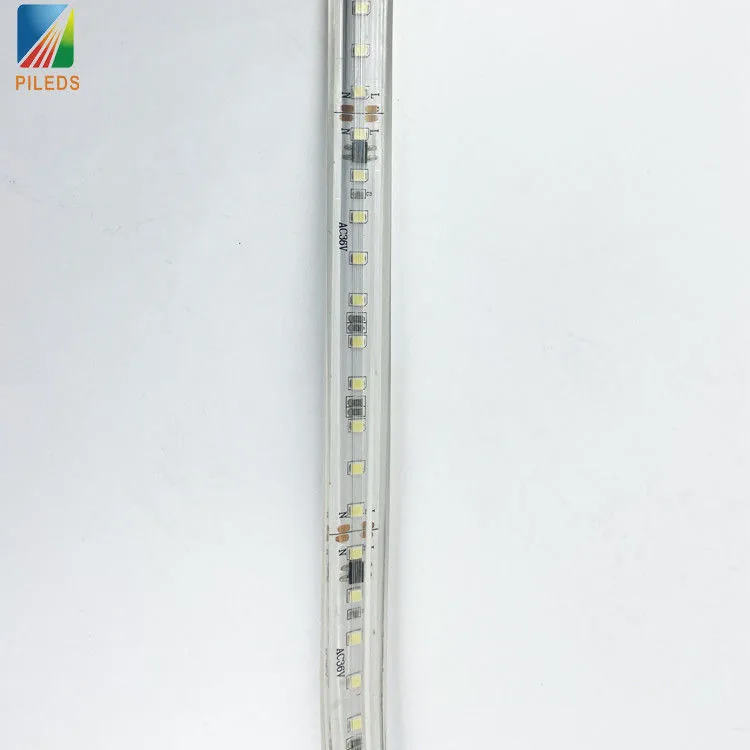

AC36V Flexible Anti-Explosion Mine Strip
AC36V Anti explosion Flexible Led Strip Lights IP68 For Underground Mining Tunnel Outdoor Lighting Strip
Heavy-duty AC-mains LED strip for mining, tunnel and construction lighting — sealed against water and dust for harsh underground and confined-space work.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the AC36V Flexible Anti-Explosion Mine Strip
AC36V Flexible Anti-Explosion Mine Strip is an AC-mains LED light strip built for mining, tunnel and civil-defense projects. It runs directly on AC36V and is tied into place with straps, so crews light long underground runs and confined work areas fast.
The strip is sealed to IP68. Supplied in 0.5M/1M/2M/3M/30M runs and cut to length on site.
On/off control keeps wiring simple, and the flexible body follows tunnel walls, arches and equipment without rigid channel.
Highlighted features
- Direct AC-mains operation (AC36V)
- IP68 sealing for wet, dusty underground environments
- Strap-mounted and flexible — follows tunnel walls and arches
- Cut-to-length with simple connector wiring
- On/off control for rugged, low-maintenance installs
Technical parameters
- LED Type
- SMD2835 LED
- Lumen
- 1100lm/m
- Length
- 0.5M/1M/2M/3M/30M
- LED Quantity
- 100LEDS/M
- Beam Angle
- 120°
- Material
- FPC+PVC
- Lifespan
- 50,000hrs
- Voltage
- AC36V
- IP Rating
- IP68
- CRI
- >85
- Color Temperature
- 3000K/6000K/R/G/B
Model AC36V Mine Strip FX — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.
OEM & ODM — built to your spec.
Run length: built and cut to the distance each tunnel or shaft needs.
Voltage: configurable across the AC options to match site power.
Color: White or RGB to suit task lighting or zone marking.
