AC Tunnel Strip
Mine LED Light Strip · AC Mine Strip
Heavy-Duty Tunnel Mining LED Strip
Heavy Duty LED Mining Strip Light Manufacturer & Supplier
Heavy-duty AC-mains LED strip for mining, tunnel and construction lighting — sealed against water and dust for harsh underground and confined-space work.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the Heavy-Duty Tunnel Mining LED Strip

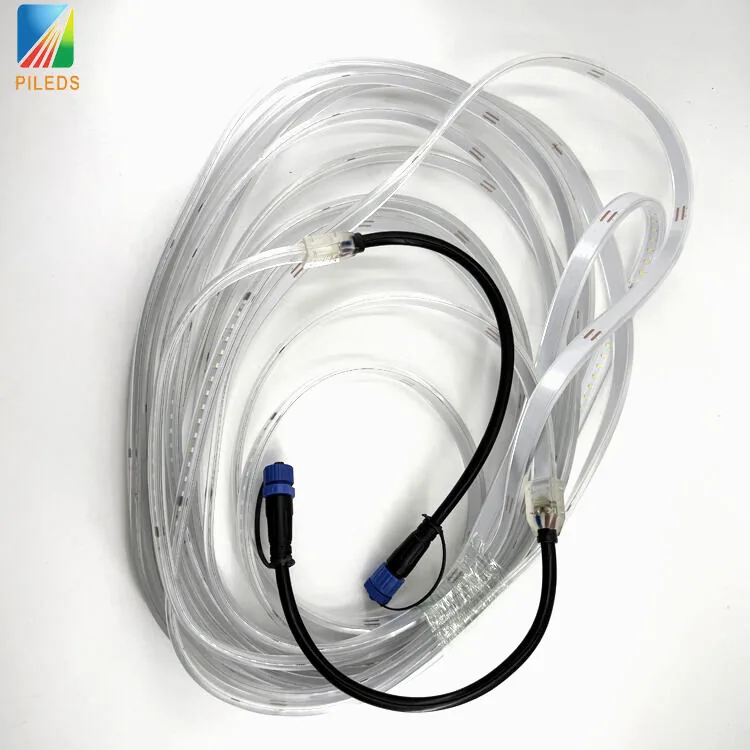

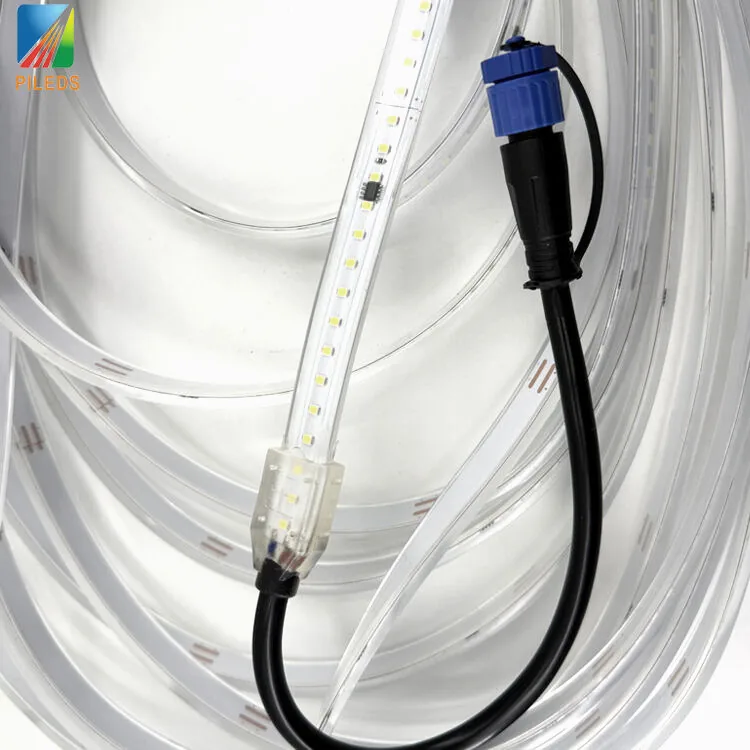

Heavy-Duty Tunnel Mining LED Strip is an AC-mains LED light strip built for mining, tunnel and civil-defense projects. It runs directly on AC36V/48V/AC110V/AC220V and is tied into place with straps, so crews light long underground runs and confined work areas fast.
The strip draws 13W/M and is sealed to IP68. Available in RGB / White. Supplied in 0.5M/1M, 5M, 10M, 50M runs and cut to length on site.
On/off control keeps wiring simple, and the flexible body follows tunnel walls, arches and equipment without rigid channel.
Highlighted features
- Direct AC-mains operation (AC36V/48V/AC110V/AC220V)
- IP68 sealing for wet, dusty underground environments
- Strap-mounted and flexible — follows tunnel walls and arches
- Cut-to-length with simple connector wiring
- On/off control for rugged, low-maintenance installs
Technical parameters
- Color
- RGB / White
- Waterproof
- IP68
- Wattage
- 13W/M
- Voltage
- AC36V/48V/AC110V/AC220V
- Length
- 0.5M/1M, 5M, 10M, 50M
- Brightness
- Adjustable
- Ingress Protection
- IP68 (Fully Waterproof / Submersible)
- Durability Ratings
- High Impact-Resistant, Heavy-Duty Anti-Pull
- Housing Material
- Modified Eco-Friendly Polymer (Flame-Retardant, Anti-UV)

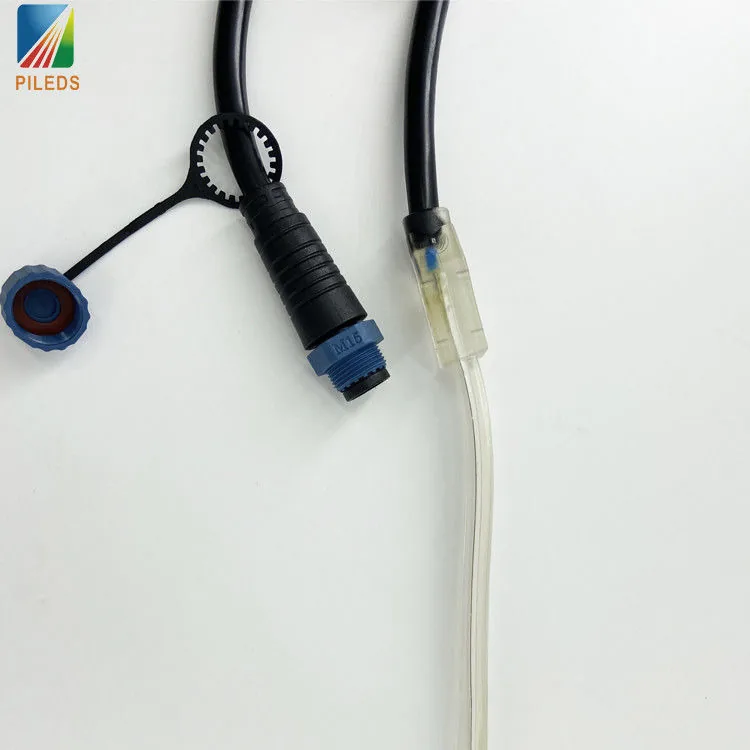

- Connectors
- IP68 Watertight Screw-Locking Connectors with End Caps
- Operating Temperature
- -30°C to +55°C
Model AC Mine Strip — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.
OEM & ODM — built to your spec.
Run length: built and cut to the distance each tunnel or shaft needs.
Voltage: configurable across the AC options to match site power.
Color: White or RGB to suit task lighting or zone marking.
