PI-10048ICRGB-50
LED Pixel Bar · PI-10060ICRGB-50
40mm 360 degree 3D RGB LED Pixel Bar tube
Programmable LED Pixel Bar Light DC 24V 360 Degree For Stage Club
Individually addressable full-color RGB LED pixel bar for pixel-mapped stage, club and event lighting.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview

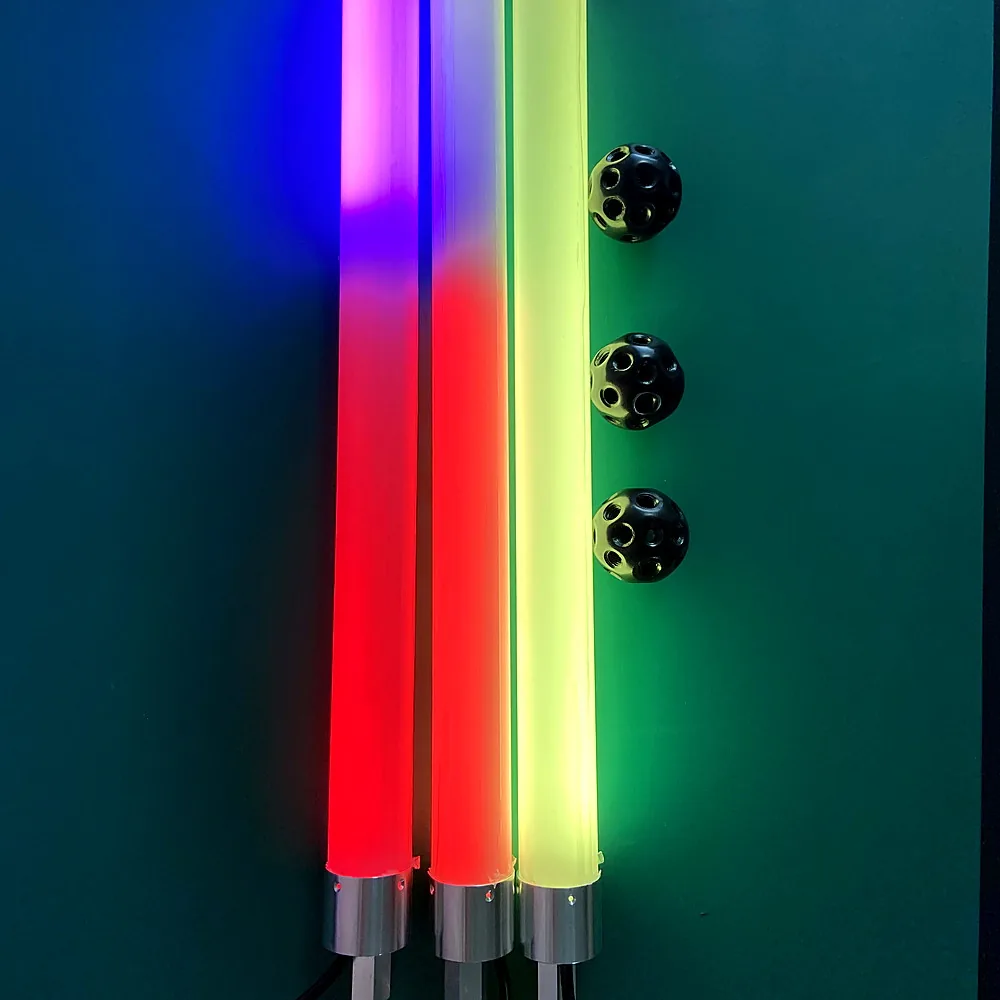

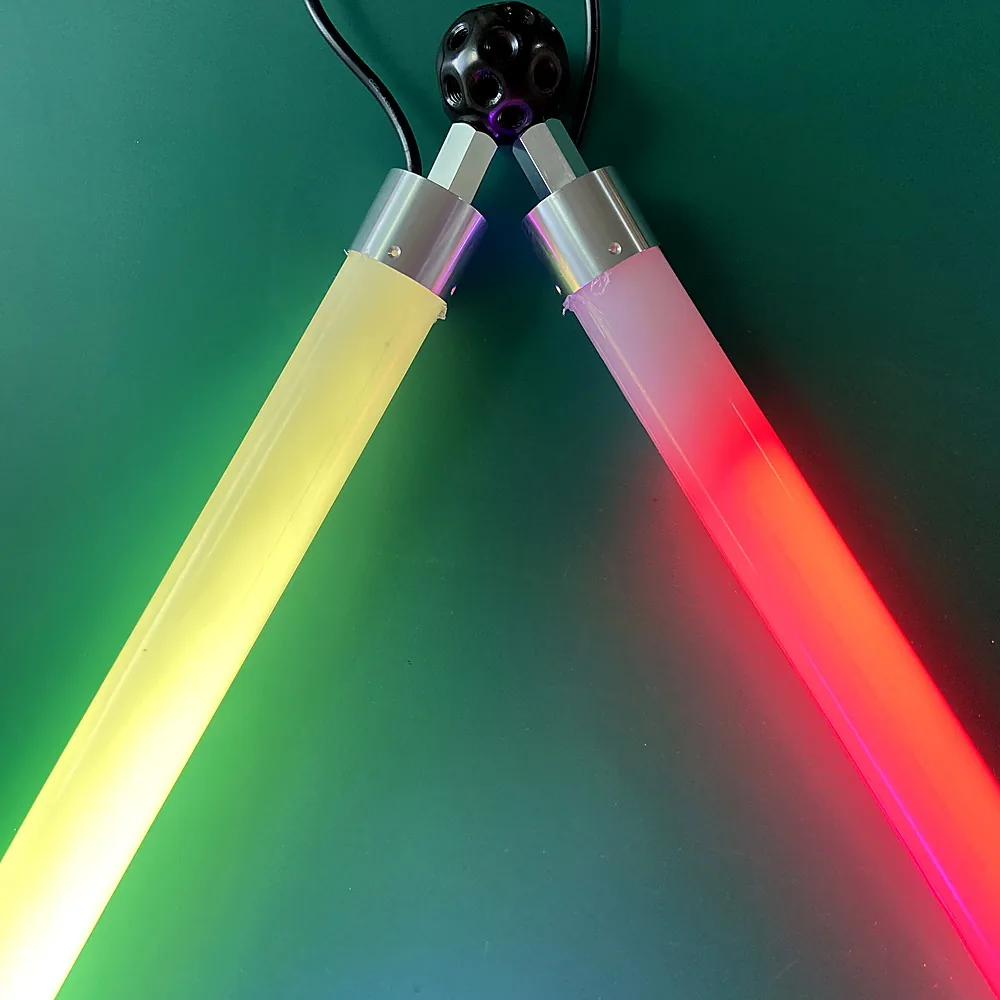

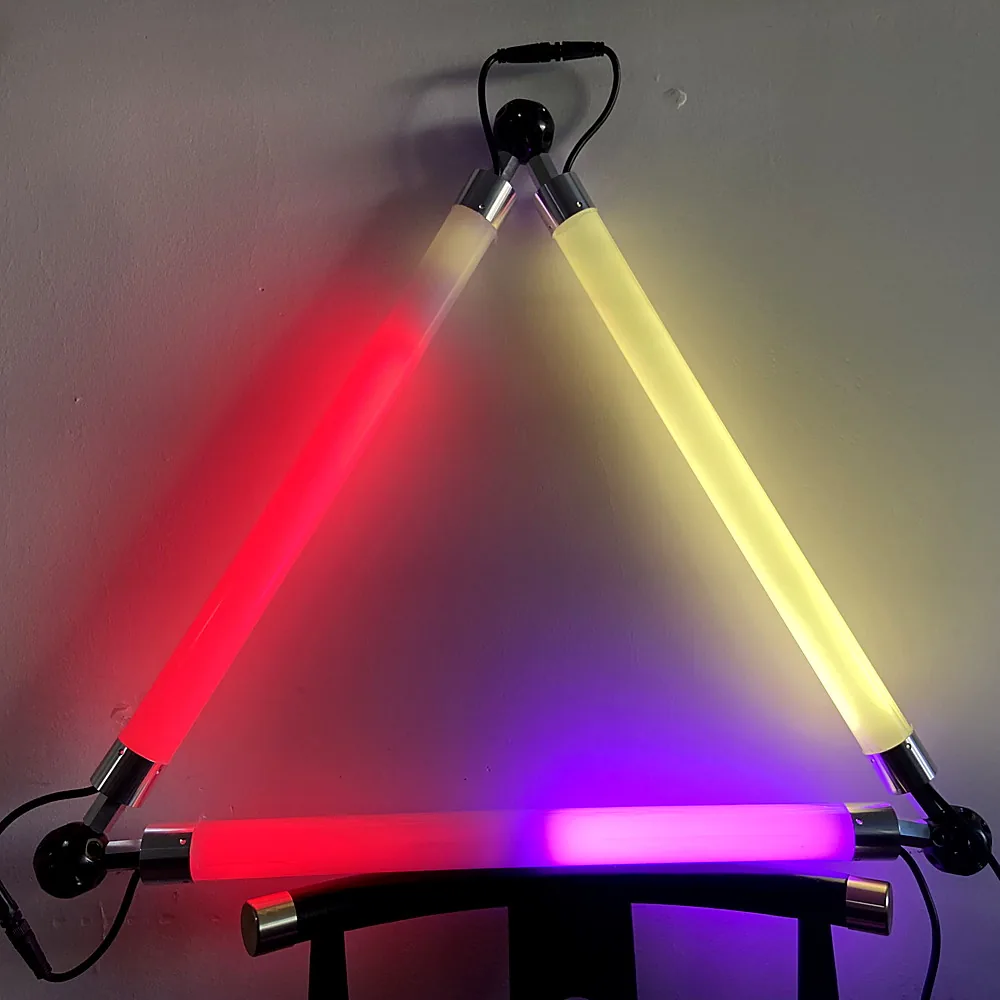

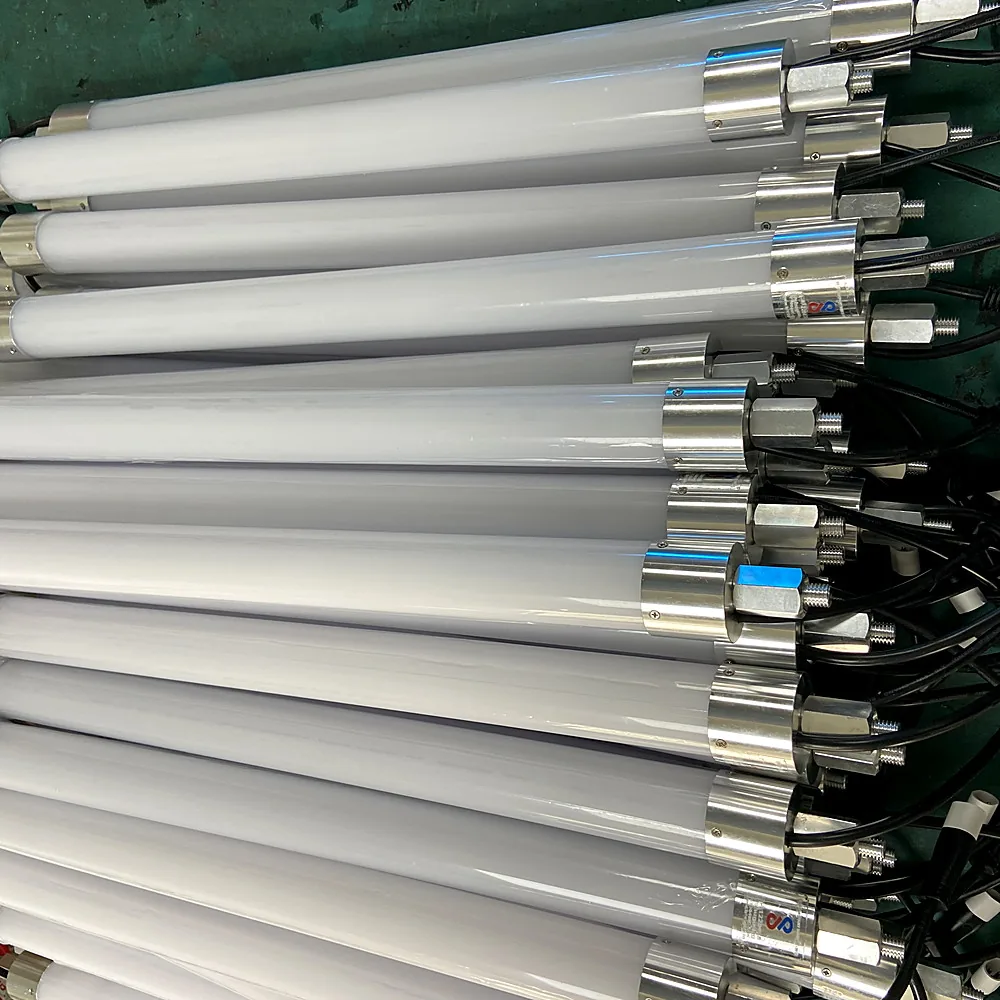

About the 40mm 360 degree 3D RGB LED Pixel Bar tube
40mm RGB LED Pixel Bar (PI-10060ICRGB-50) is a full-color RGB LED pixel bar built on 28Pixel/M emitters, with 168 LEDs/m. Each LED is individually addressable, so the fixture drives pixel-mapped wash, beam and tube effects on stage and event rigs.
Control is over SPI or DMX512. It runs on low-voltage DC24V and draws Customized. A 360° beam angle gives an even spread across the run.
It carries an IP20 rating for indoor installs. Expect a rated life of 50,000 Hours.
Highlighted features
- Individually addressable pixels for full pixel-mapping and video effects
- RGB colour mixing with smooth dimming and gradients
- IP20-rated housing for indoor installations
- Low-voltage DC24V operation for safe, simple installation
- 360° beam angle for even, wide coverage
- Long 50,000 Hours rated lifespan
Technical parameters
- LED Type
- 28Pixel/M
- Color
- FULL-RGB
- Control Mode
- SPI/DMX512
- LED Quantity
- 168LEDS/M
- Beam Angle
- 360°
- Power
- Customized
- Voltage
- DC24V
- Size
- φ40mm
- Shape
- Tube
- IP Rating
- IP20
- Lifespan
- 50,000 Hours
- Warranty
- 2 Years
Model PI-10060ICRGB-50 — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.
OEM & ODM — built to your spec.
Control protocol: configurable for SPI, DMX512.
Ingress protection: IP20 for indoor builds.
