PI-10060RGBW
LED Pixel Bar · PI-10060RGBW
Square milky white PC casing LED Pixel Bar
Outdoors DJ stage LED Pixel Bar with Input Voltage DC12V /DC24V and Power Consumption 15W/meter
Individually addressable LED pixel bar for pixel-mapped stage, club and event lighting.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the Square milky white PC casing LED Pixel Bar

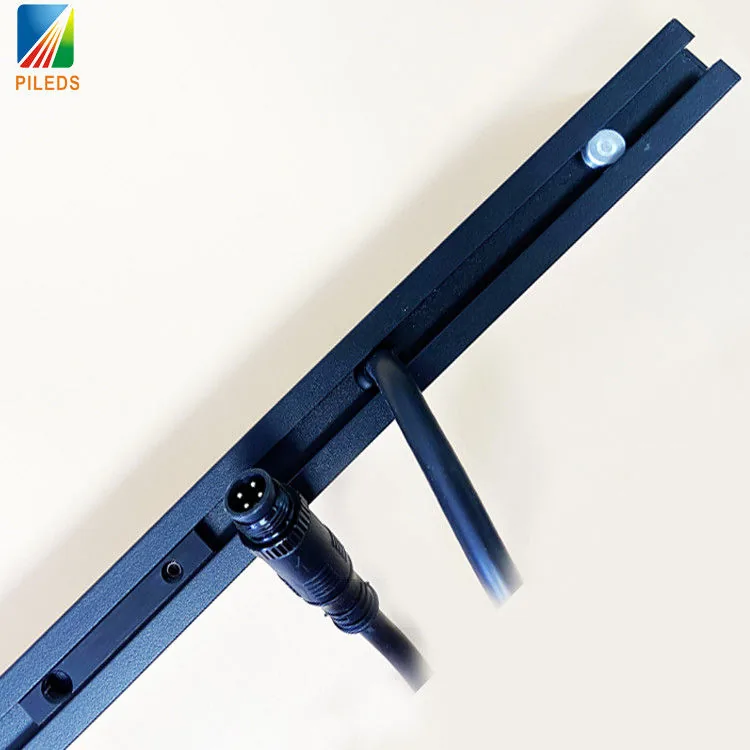

The PI-10060RGBW is an LED pixel bar built on SMD 5050RGBW emitters, with 60 LEDs/m. Each LED is individually addressable, so the fixture drives pixel-mapped wash, beam and tube effects on stage and event rigs.
It runs on low-voltage DC12V /DC24V and draws 15W/meter.
An IP65 rating makes it suitable for outdoor and wet-location use. It is cuttable every 1 LEDs and links end-to-end for longer runs.
Highlighted features
- Individually addressable pixels for full pixel-mapping and video effects
- IP65-rated housing for outdoor and wet-location use
- Low-voltage DC12V /DC24V operation for safe, simple installation
- Cuttable and end-to-end linkable for made-to-length runs
Technical parameters
- LED Type
- SMD 5050RGBW
- Pixels
- 60pixels/Meter
- LED Quantity
- 60 LEDs/meter
- Power Consumption
- 15W/meter
- Voltage
- DC12V /DC24V
- Length
- 1m/0.5m
- Cutting Unit
- Every 1 LEDs
- IP Rating
- IP65
- Warranty
- 2 Years
Model PI-10060RGBW — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.
OEM & ODM — built to your spec.
Cut-to-length: fixtures are built to the run length your project needs.
Voltage options: DC12V, DC24V to suit your power infrastructure.
