PI-10048IC-50
LED Pixel Bar · PI-10048IC-50K

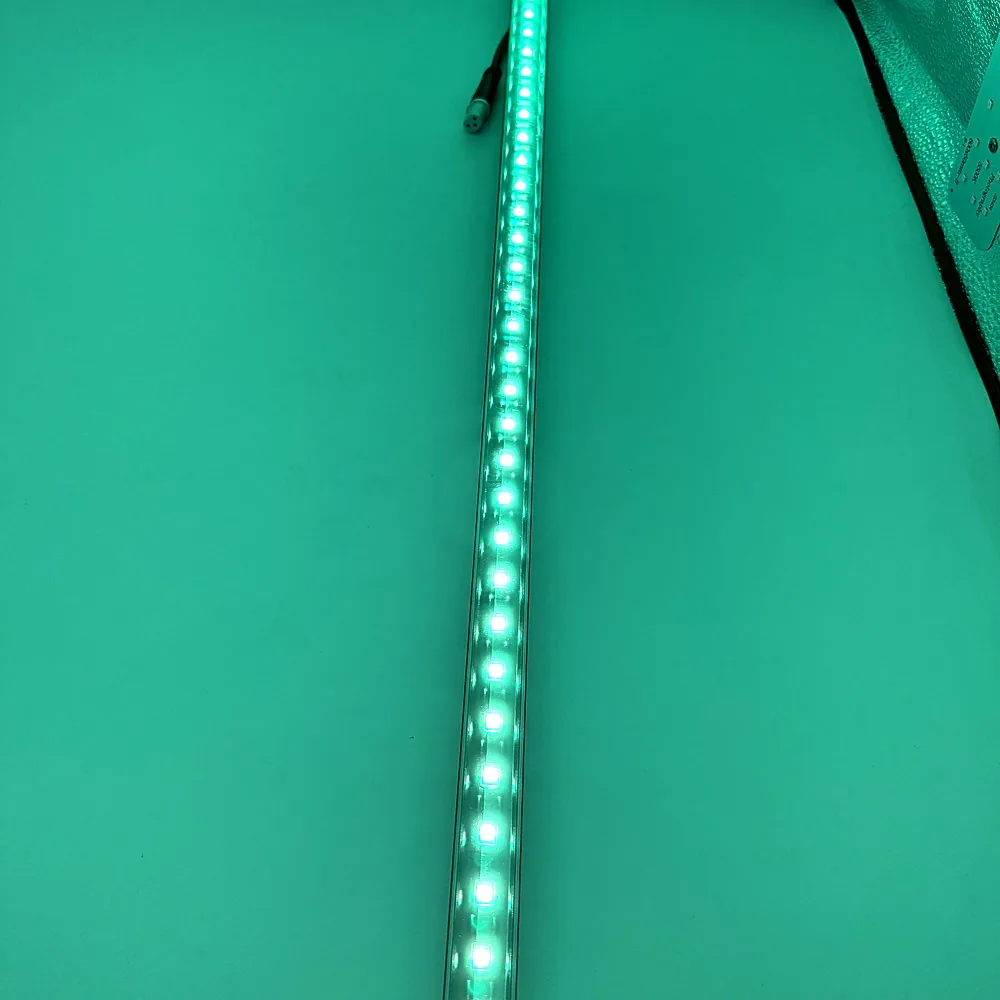

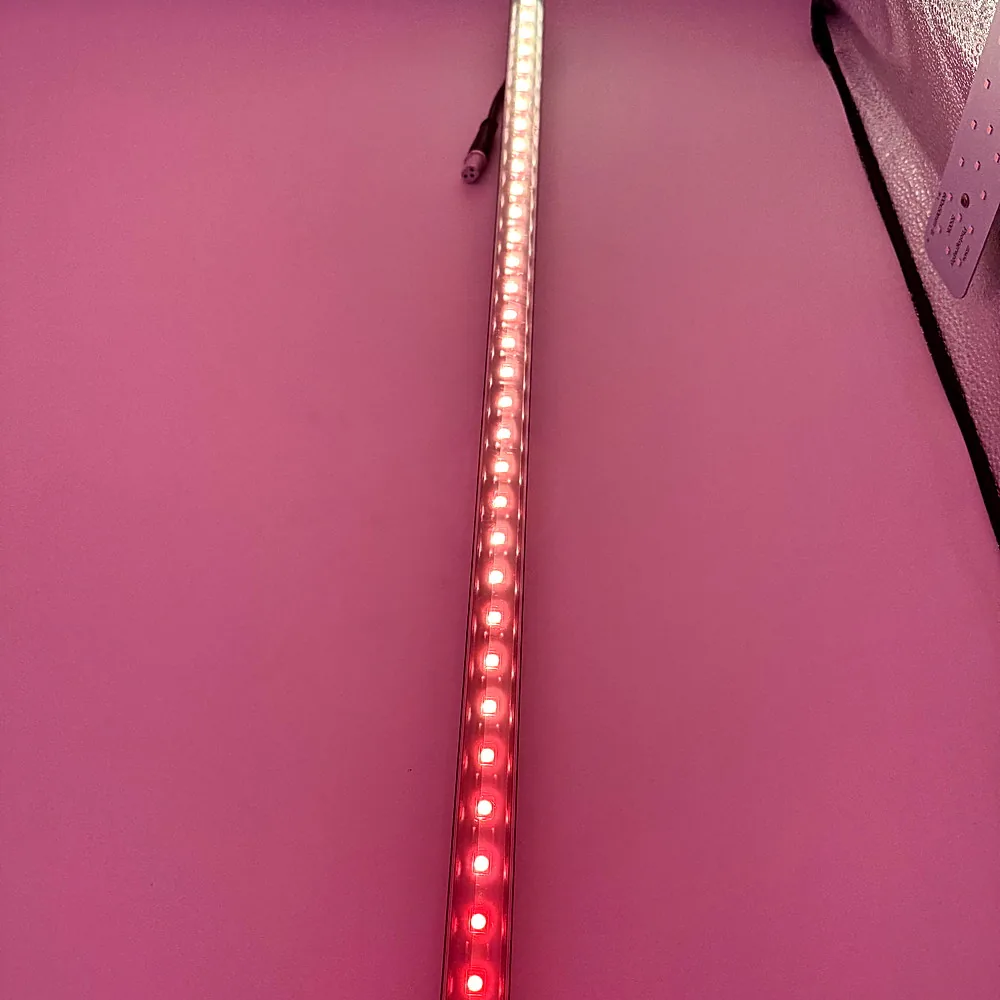

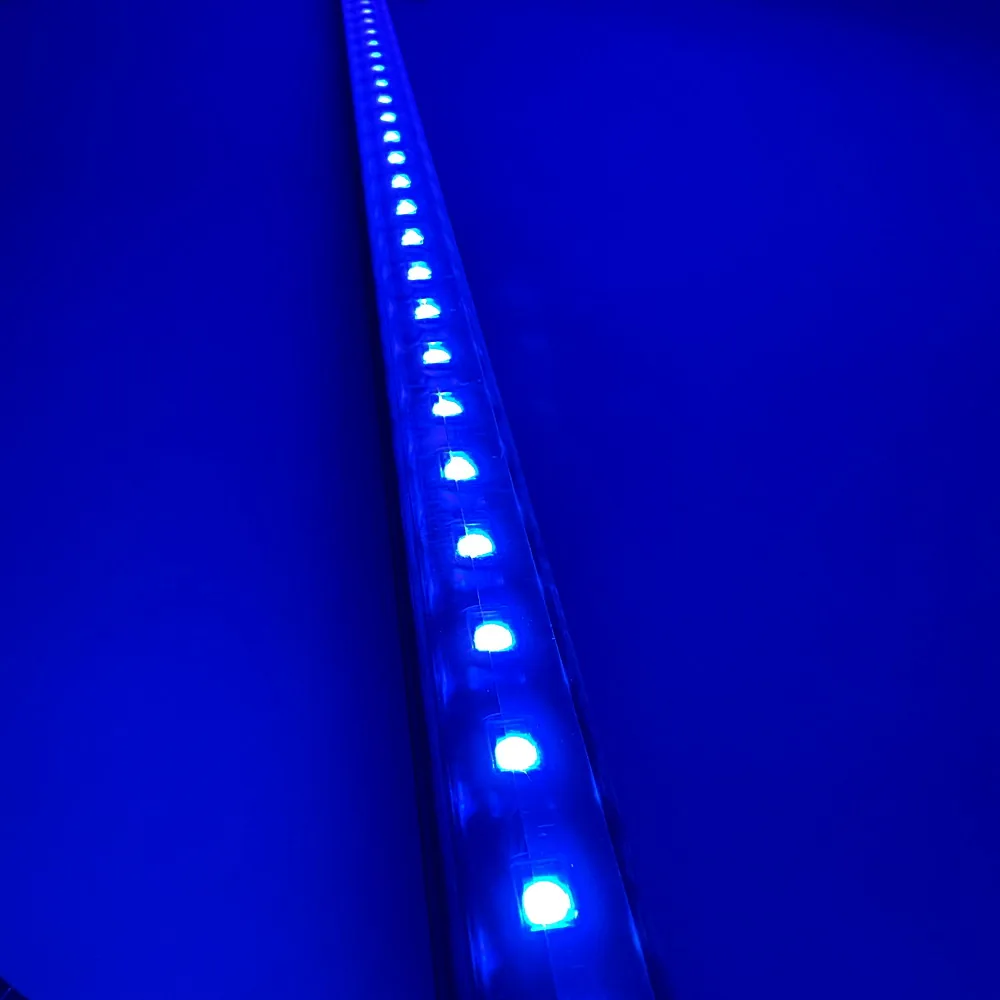

30mm wide aluminum profile RGB LED Pixel Bar
Yishuguang BIS Led Mi Pixel Bar 12v 16pixels/M
Individually addressable full-color RGB LED pixel bar for pixel-mapped stage, club and event lighting.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the 30mm wide aluminum profile RGB LED Pixel Bar
The PI-10048IC-50K is a full-color RGB LED pixel bar built on SMD5050 emitters, with 48 LEDs/m. Each LED is individually addressable, so the fixture drives pixel-mapped wash, beam and tube effects on stage and event rigs.
It runs on low-voltage DC12V and draws 12W/meter. A 140° beam angle gives an even spread across the run.
An IP67 rating makes it suitable for outdoor and wet-location use. It is cuttable every 25CM/50CM/75CM/100CM and links end-to-end for longer runs. Expect a rated life of 50000hrs.
Highlighted features
- Individually addressable pixels for full pixel-mapping and video effects
- RGB colour mixing with smooth dimming and gradients
- IP67-rated housing for outdoor and wet-location use
- Low-voltage DC12V operation for safe, simple installation
- Cuttable and end-to-end linkable for made-to-length runs
- 140° beam angle for even, wide coverage
Technical parameters
- LED Type
- SMD5050
- Color
- FULL-RGB
- LED Quantity
- 48 LEDs/meter
- Beam Angle
- 140°
- Power
- 12W/meter
- Luminous Flux
- 14-16lm/LED
- Voltage
- DC12V
- Size
- L1000*W30*H30mm
- Cutting Unit
- 25CM/50CM/75CM/100CM
- IP Rating
- IP67
- Working Temperature
- -20℃~50℃
- Storage Temperature
- -40℃~80℃
- Lifespan
- 50000hrs
Model PI-10048IC-50K — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
