PI-10060RGBW
LED Pixel Bar · PI-10060RGBW

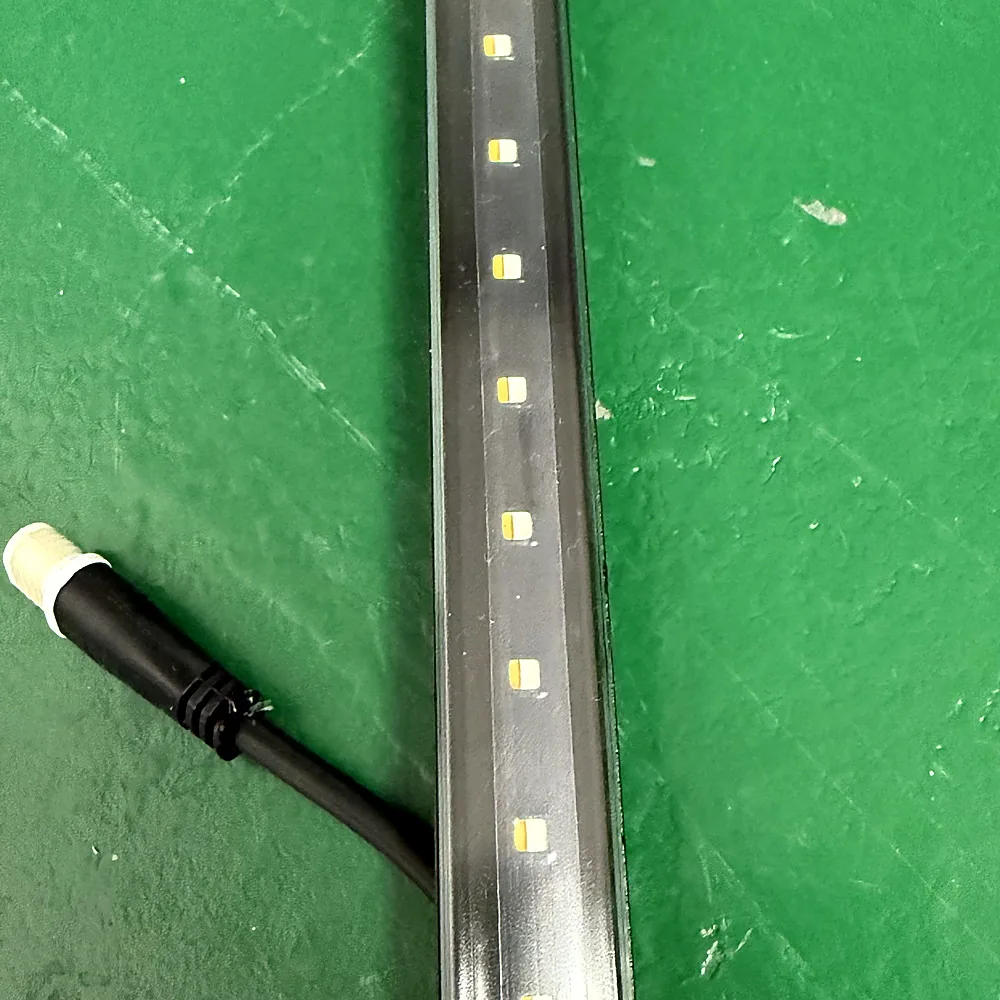

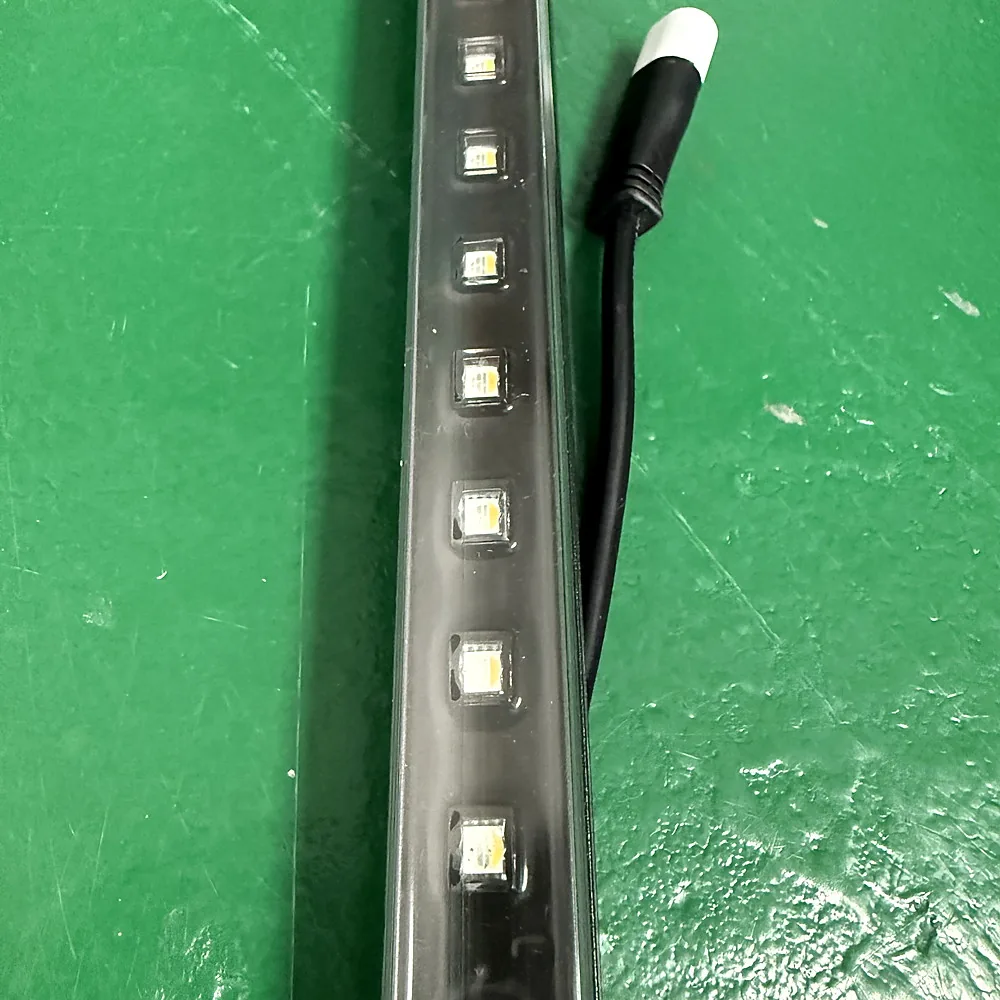

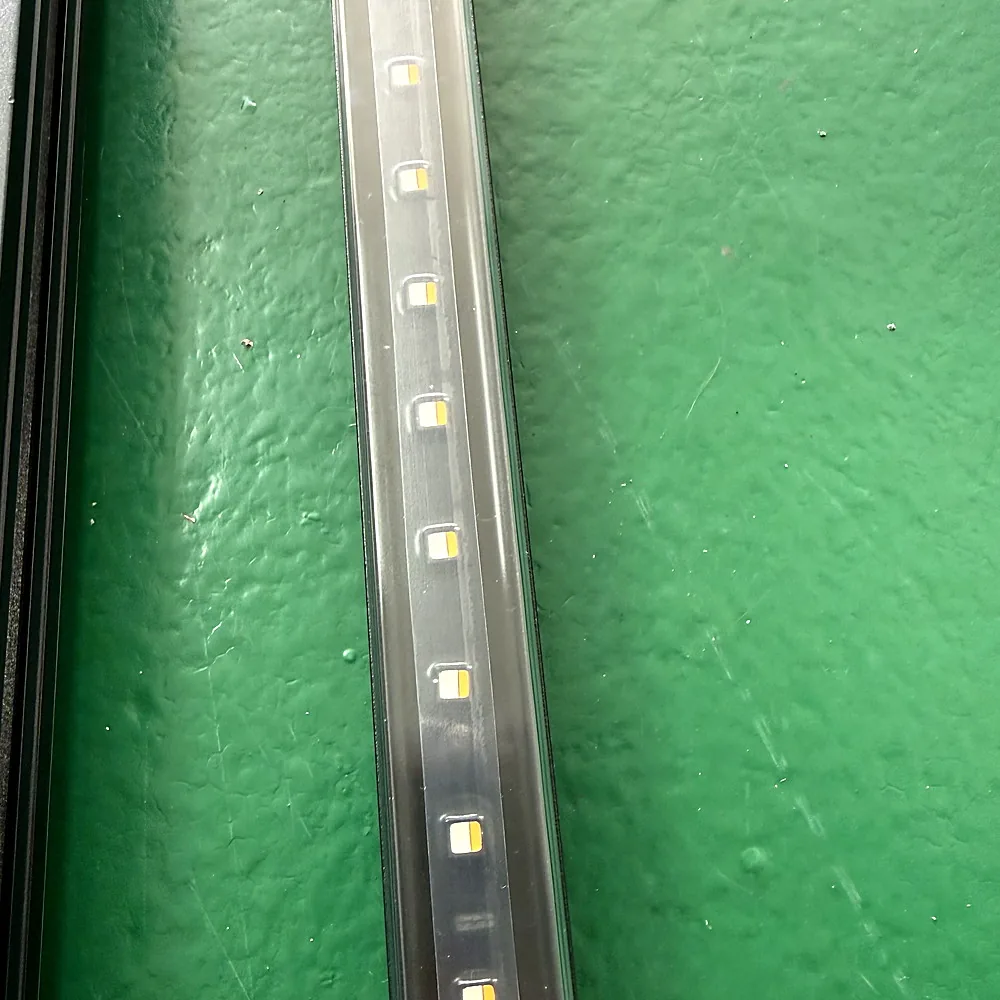

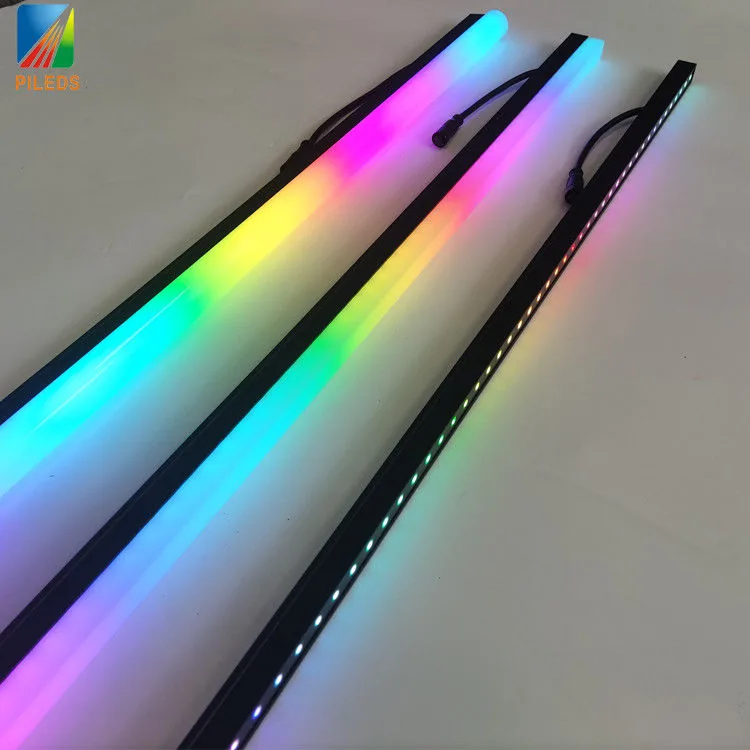

RGBW LED Pixel Bar
LED Digital SPI Pixel MI Bar for DJ Stage Lighting 16 Pixels/M IP65 5050 RGBW RGBWW Artnet Madrixs
Individually addressable full-color RGBW LED pixel bar for pixel-mapped stage, club and event lighting.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the RGBW LED Pixel Bar
16px/m RGBW LED Pixel Bar (PI-10060RGBW) is a full-color RGBW LED pixel bar with 48 LEDs/m. Each LED is individually addressable, so the fixture drives pixel-mapped wash, beam and tube effects on stage and event rigs.
Control is over SPI or DMX. It runs on low-voltage DC12V and draws 12W/meter. A 180° beam angle gives an even spread across the run.
It is cuttable every 3 LEDs and links end-to-end for longer runs.
Highlighted features
- Individually addressable pixels for full pixel-mapping and video effects
- RGBW colour mixing with smooth dimming and gradients
- Low-voltage DC12V operation for safe, simple installation
- Cuttable and end-to-end linkable for made-to-length runs
- 180° beam angle for even, wide coverage
Technical parameters
- Color
- IC RGBW/ IC RGB
- Control Mode
- SPI/DMX
- Pixels
- 16pixels/Meter
- LED Quantity
- 48 LEDs/meter
- Beam Angle
- 180°
- Power Consumption
- 12W/meter
- Voltage
- DC12V
- Length
- 1m/0.5m
- Cutting Unit
- Every 3 LEDs
- Warranty
- 2 Years
Model PI-10060RGBW — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.
OEM & ODM — built to your spec.
Cut-to-length: fixtures are built to the run length your project needs.
Colour options: choose from IC RGBW, IC RGB.
Control protocol: configurable for SPI, DMX.
