PI-10060ICRGB-50
LED Pixel Bar · PI-10060RGBW

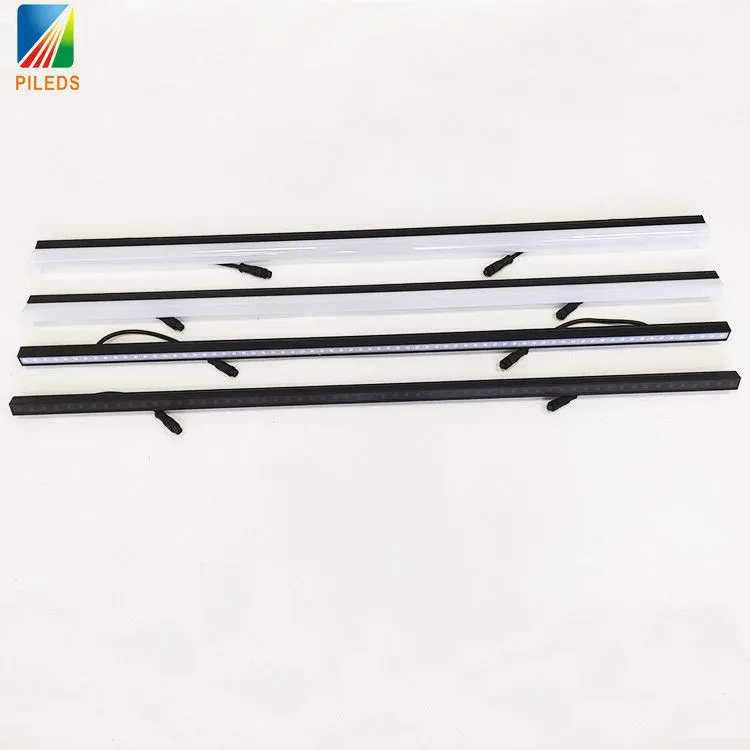

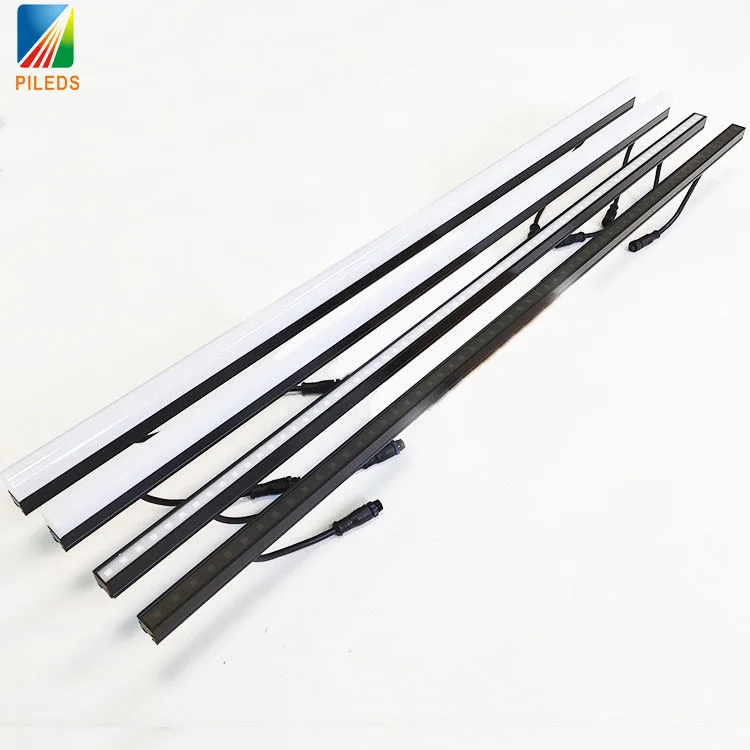

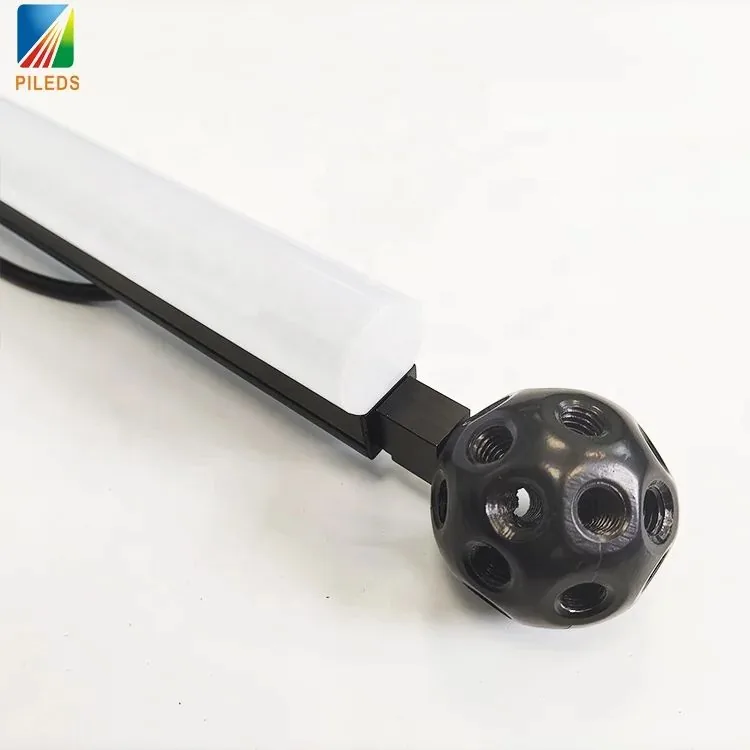

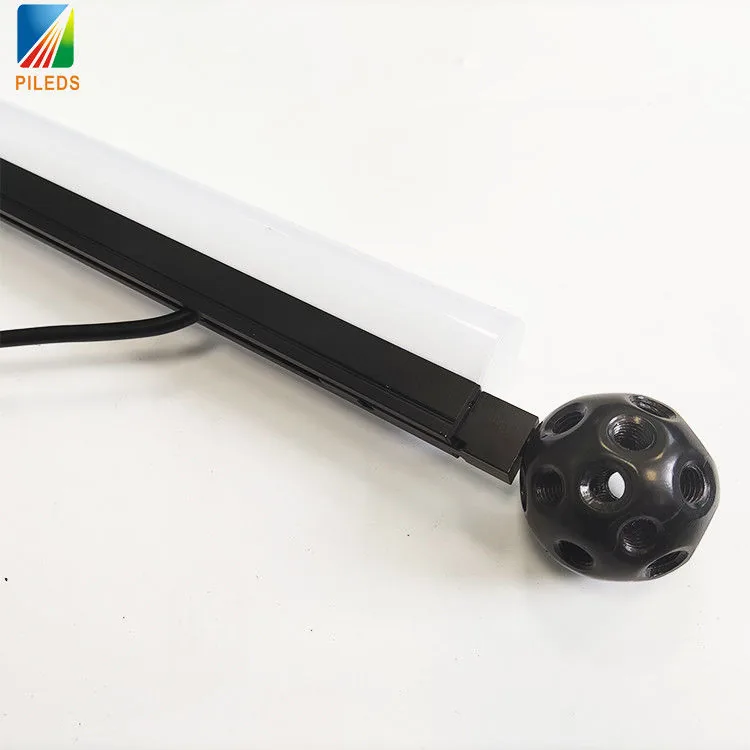

Video Bars RGBW LED Pixel Bar with Circular Adapter Ball
RGBW 60PIXELS/M 270 Degree LED Pixel Bar Tube Dj Bar Light Rgb Pixel LED Bar Stage Light
Individually addressable LED pixel bar for pixel-mapped stage, club and event lighting.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the Video Bars RGBW LED Pixel Bar with Circular Adapter Ball
60px/m RGBW LED Pixel Bar (PI-10060RGBW) is an LED pixel bar built on SMD 5050RGBW emitters, with 60 LEDs/m. Each LED is individually addressable, so the fixture drives pixel-mapped wash, beam and tube effects on stage and event rigs.
Control is over SPI or DMX. It runs on low-voltage DC12V /DC24V and draws 15W/meter. A 270° beam angle gives an even spread across the run.
An IP65 rating makes it suitable for outdoor and wet-location use.
Highlighted features
- Individually addressable pixels for full pixel-mapping and video effects
- IP65-rated housing for outdoor and wet-location use
- Low-voltage DC12V /DC24V operation for safe, simple installation
- 270° beam angle for even, wide coverage
Technical parameters
- LED Type
- SMD 5050RGBW
- Control Mode
- SPI/DMX
- LED Quantity
- 60 LEDs/meter
- Beam Angle
- 270°
- Power Consumption
- 15W/meter
- Voltage
- DC12V /DC24V
- Length
- 1m/0.5m
- IP Rating
- IP65
- Working Temperature
- -40℃~60℃
Model PI-10060RGBW — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.
OEM & ODM — built to your spec.
Cut-to-length: fixtures are built to the run length your project needs.
Control protocol: configurable for SPI, DMX.
Voltage options: DC12V, DC24V to suit your power infrastructure.
