PI-10060ICRGB
LED Pixel Tube · PI-300ICRGB-LX
30mm Clear RGB LED Pixel Tube
Nightclub Meteor Magic LED Tube Light 30mm Diameter WS2811 UCS1903

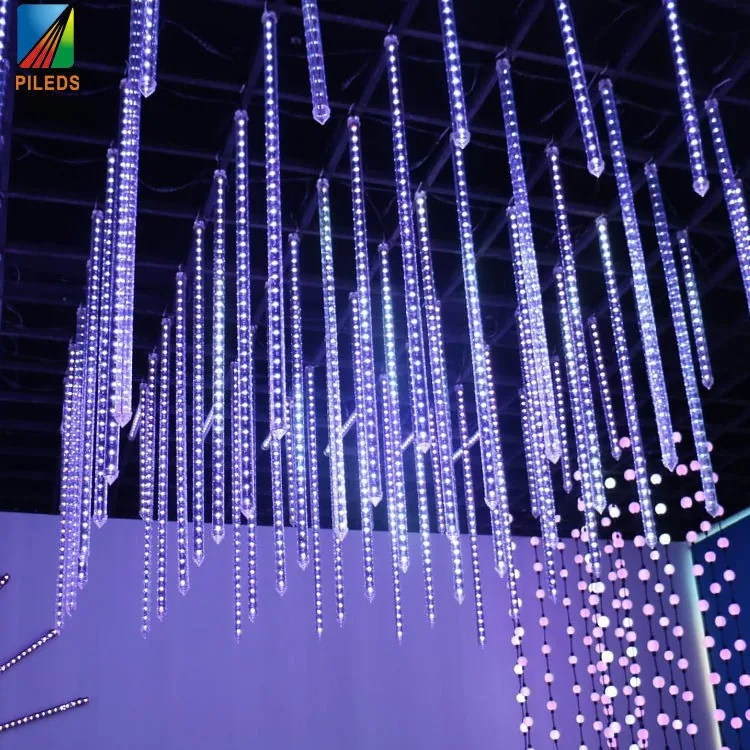

Individually addressable full-color RGB LED pixel tube for 360° pixel tube effects on stage and architecture.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the 30mm Clear RGB LED Pixel Tube
30mm RGB LED Pixel Tube (PI-300ICRGB-LX) is a full-color RGB LED pixel tube built on SMD5050 emitters, with 96/120LEDS. Each LED is individually addressable, so the fixture drives vertical pixel tube effects and 360° tube looks for stage and architectural rigs.
Control is over DMX512 or SPI. It runs on low-voltage DC12V/DC24V and draws 23W/28.8W. A 360° beam angle gives an even spread across the run.
It ships in IP20/IP65 options, covering indoor and wet / outdoor installs.
Highlighted features
- Individually addressable pixels for full pixel-mapping and video effects
- RGB colour mixing with smooth dimming and gradients
- IP65-rated housing for outdoor and wet-location use
- Low-voltage DC12V/DC24V operation for safe, simple installation
- 360° beam angle for even, wide coverage
Technical parameters
- LED Type
- SMD5050
- Color
- FULL-RGB
- Control Mode
- DMX512/SPI
- Connection Mode
- 5PIN/3PIN
- LED Quantity
- 96/120LEDS
- Beam Angle
- 360°
- Power Consumption
- 23W/28.8W
- Voltage
- DC12V/DC24V
- Size
- 1000*30*30mm
- IP Rating
- IP20/IP65
- Working Temperature
- -20°C~70°C
- Weight
- 0.2KG
- Warranty
- 2 Years
Model PI-300ICRGB-LX — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.
OEM & ODM — built to your spec.
Control protocol: configurable for DMX512, SPI.
Ingress protection: IP20, IP65 for indoor through to wet / outdoor builds.
Voltage options: DC12V, DC24V to suit your power infrastructure.
