PI-500iCRGB
LED Point Light · PI-12iCRGB

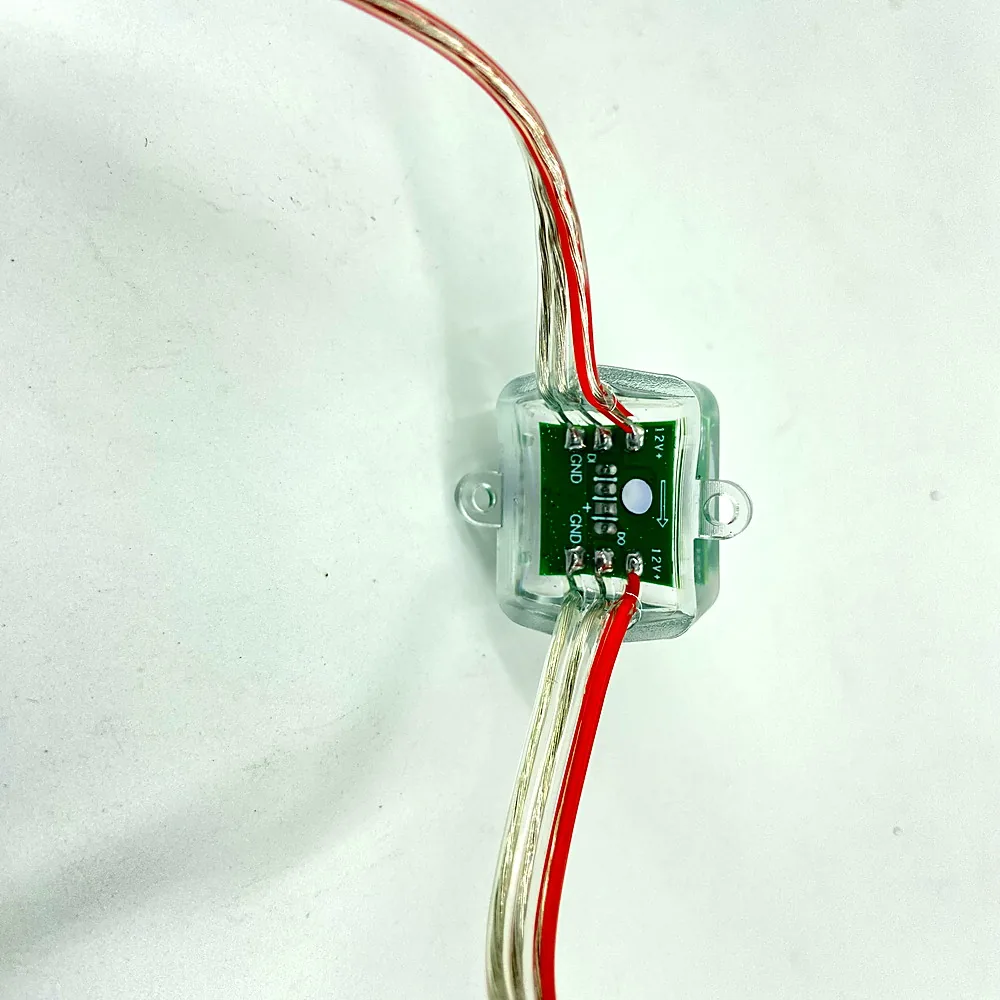

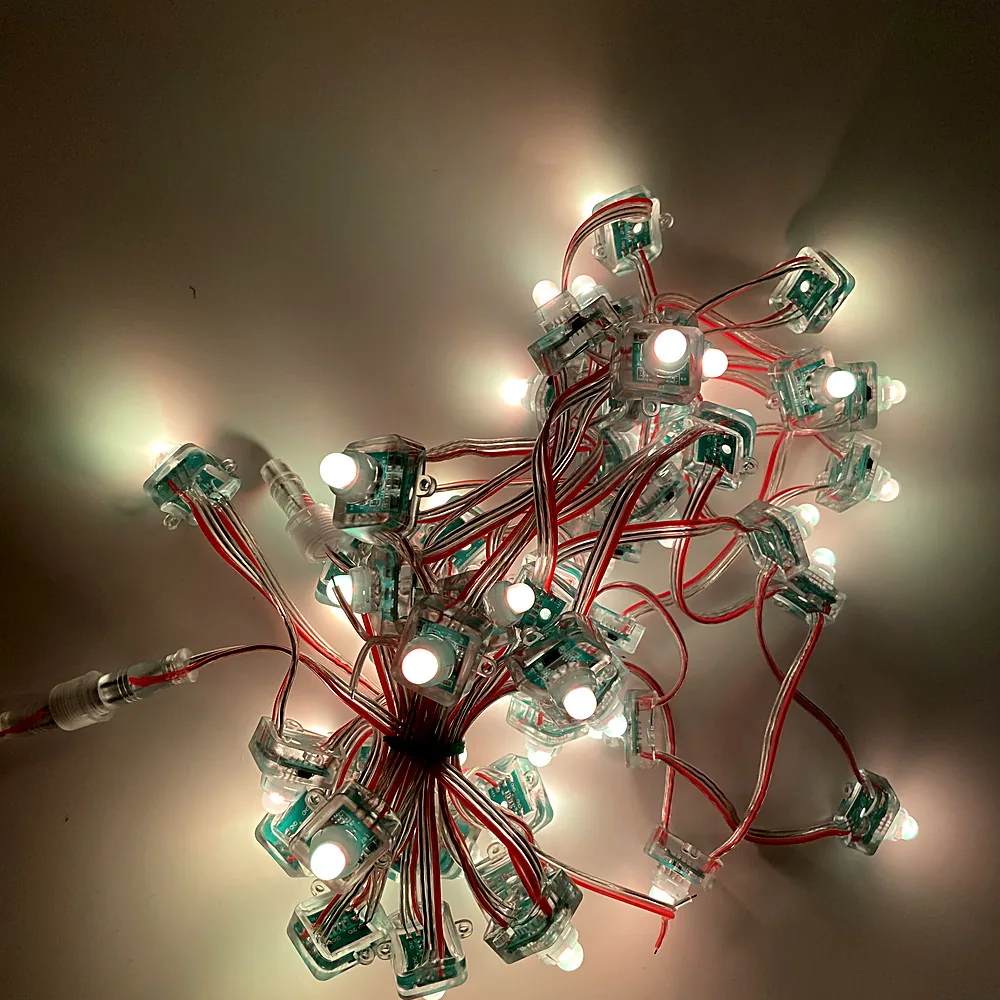

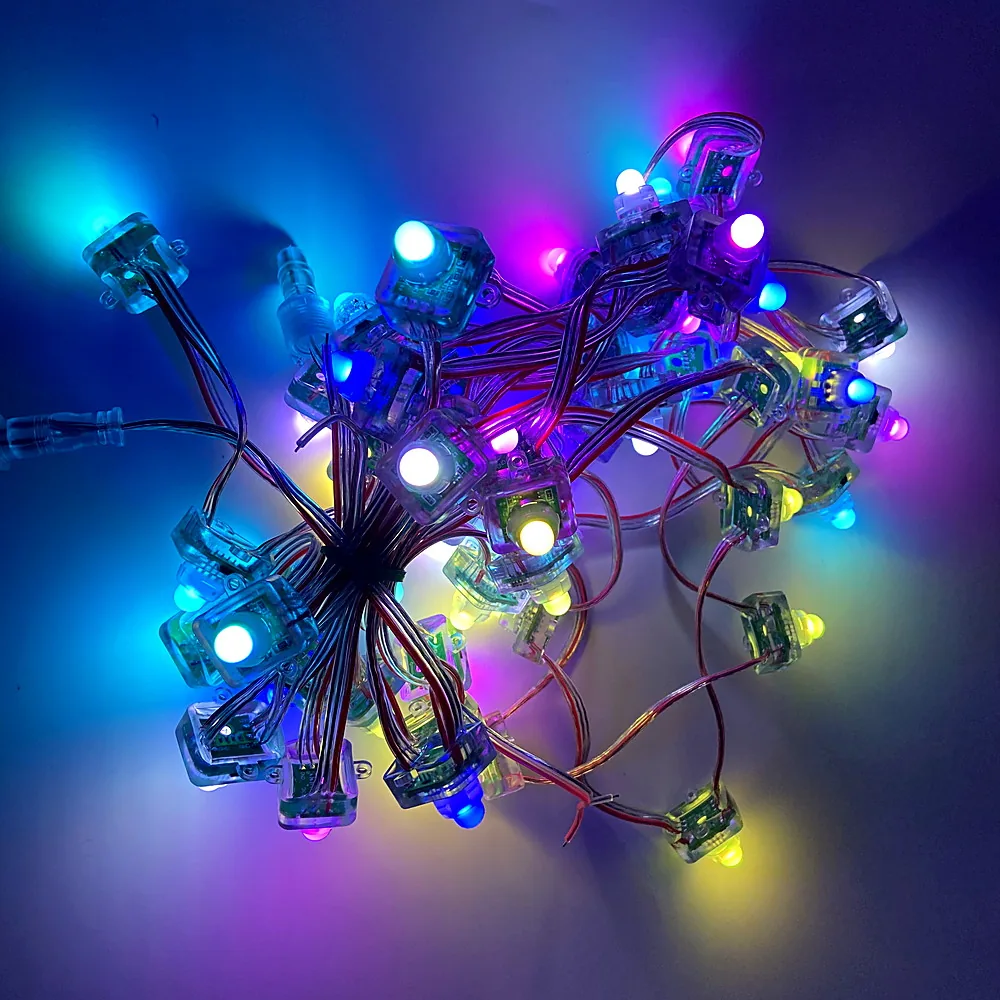

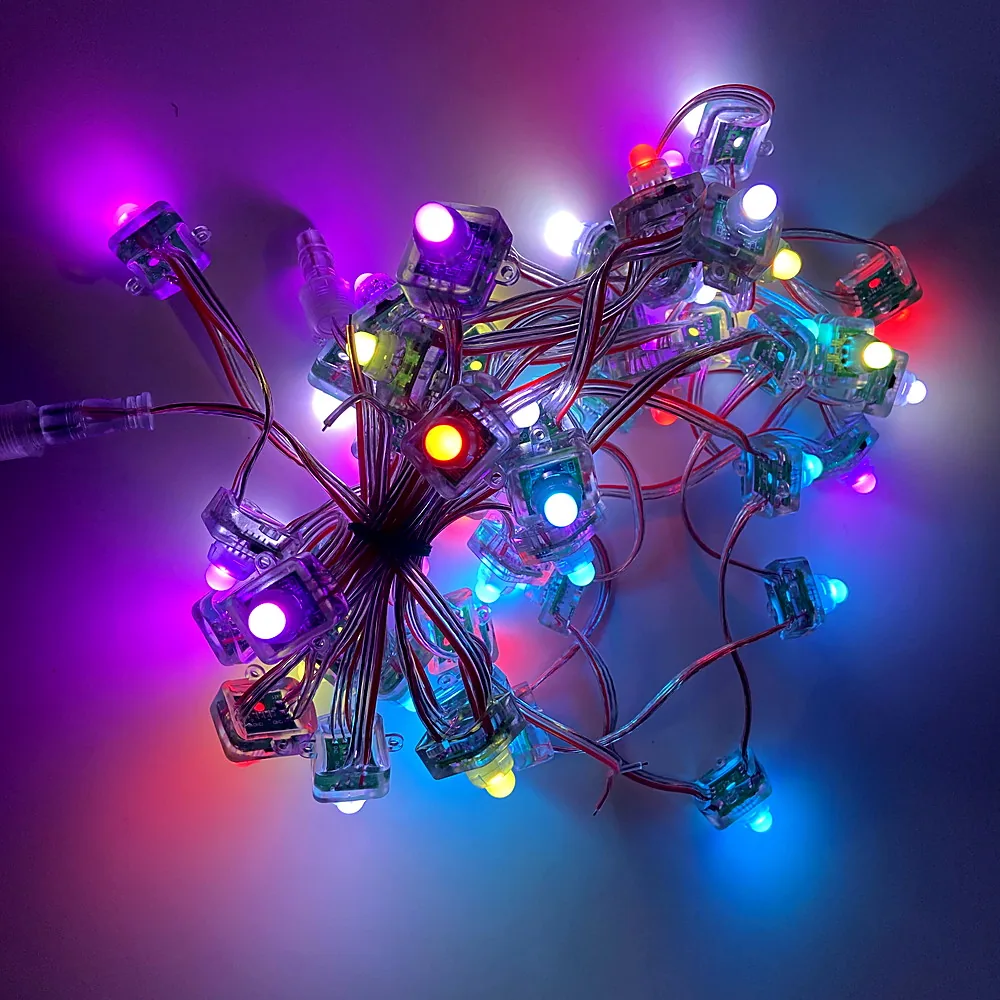

12mm Square RGB LED Point Light
DC12V WS2811 UCS1903 12mm led exposed light string perforated lamp waterproof 12v 5v signboard advertising Christmas light
Individually addressable full-color RGB LED point light for pixel facade, signage and media-architecture arrays.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the 12mm Square RGB LED Point Light
12mm LED Point Light (PI-12iCRGB) is a full-color RGB LED point light built on F8 LED emitters. Each LED is individually addressable, so the fixture drives pixel point arrays for facades, signage, rides and media architecture.
Pixels are driven by WS2811 or UCS1903 driver ICs. It draws 0.3W.
The housing is made of PC. Expect a rated life of 50,000hrs, a CRI of Ra>85, up to 300-3000lm per point.
Highlighted features
- Individually addressable pixels for full pixel-mapping and video effects
- RGB colour mixing with smooth dimming and gradients
- High colour rendering (CRI Ra>85) for true-to-life output
- Up to 300-3000lm luminous output per point
- Long 50,000hrs rated lifespan
Technical parameters
- LED Type
- F8 LED
- Color
- RGBIC
- Driver IC
- WS2811 UCS1903
- Power
- 0.3W
- Luminous Flux
- 300-3000lm
- CRI
- Ra>85
- Material
- Pc
- Lifespan
- 50,000hrs
- Warranty
- 3 Years
Model PI-12iCRGB — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.

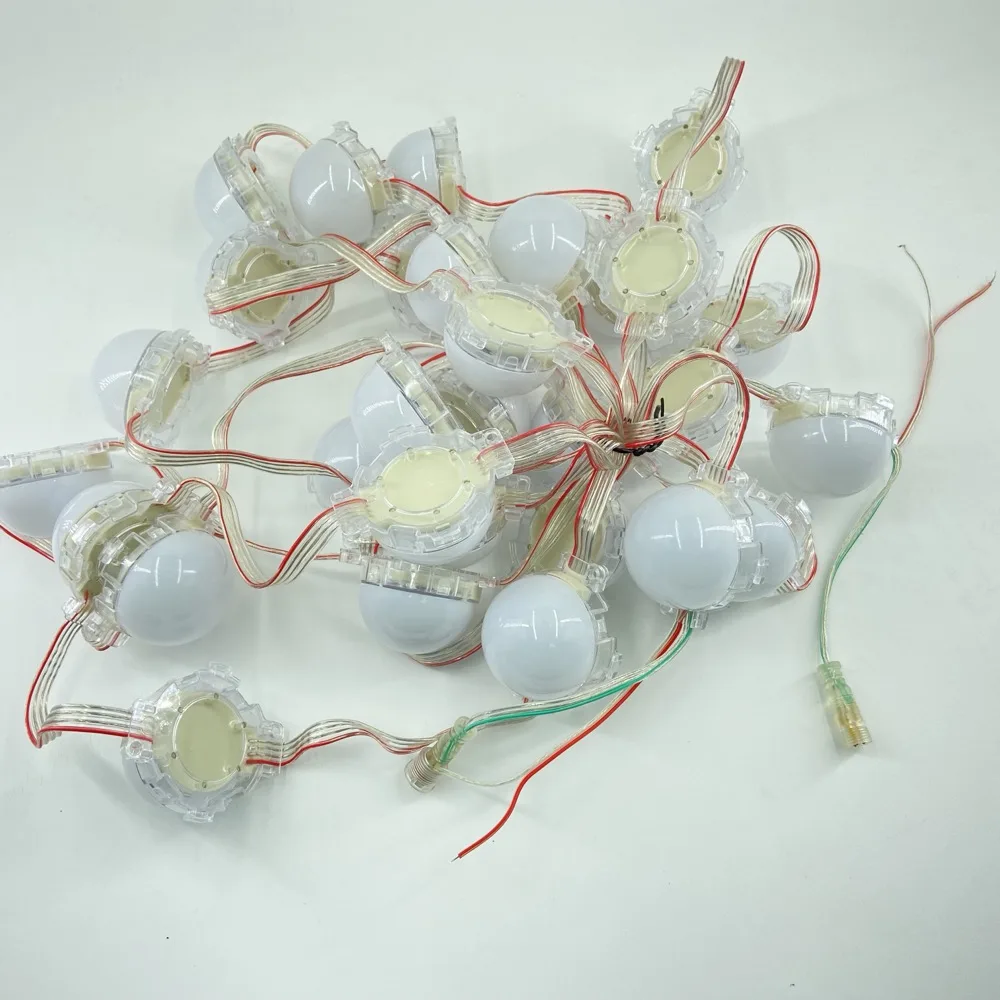

Other LED Point Light models
