PI-500ICRGB
LED Point Light ·

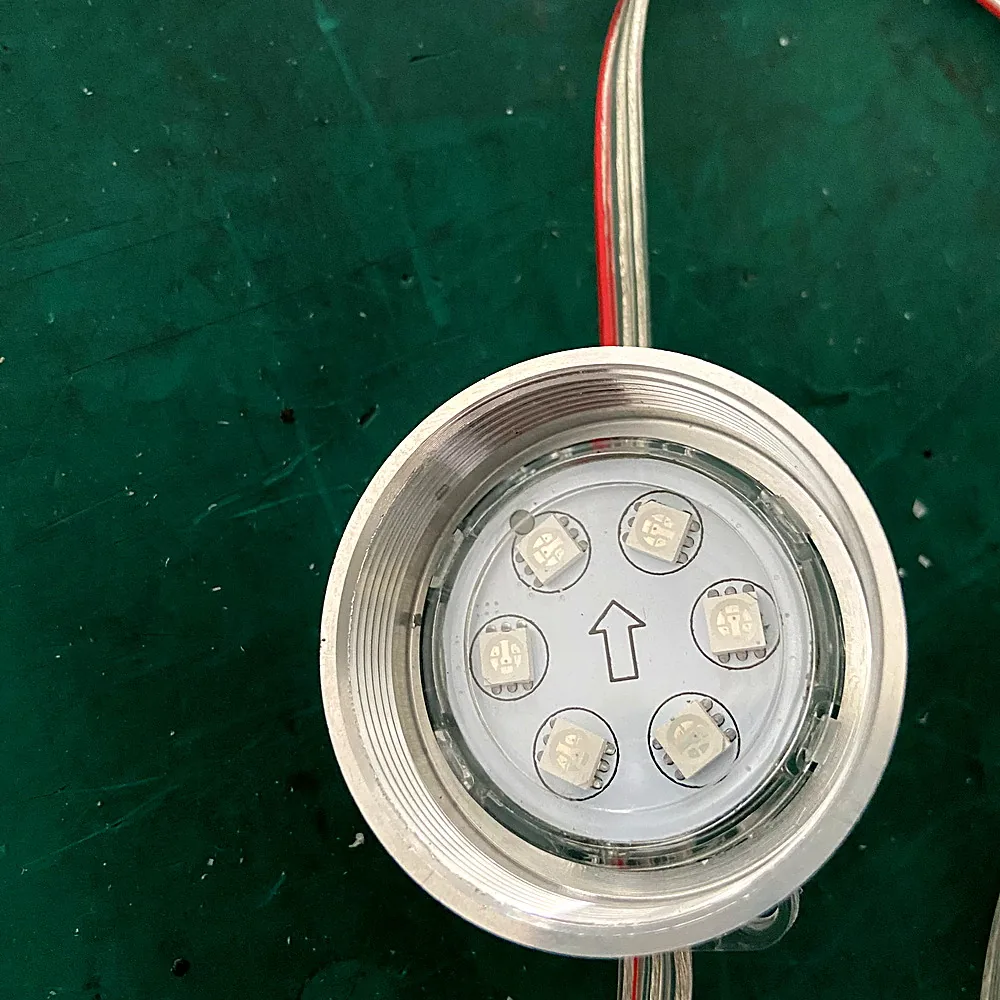

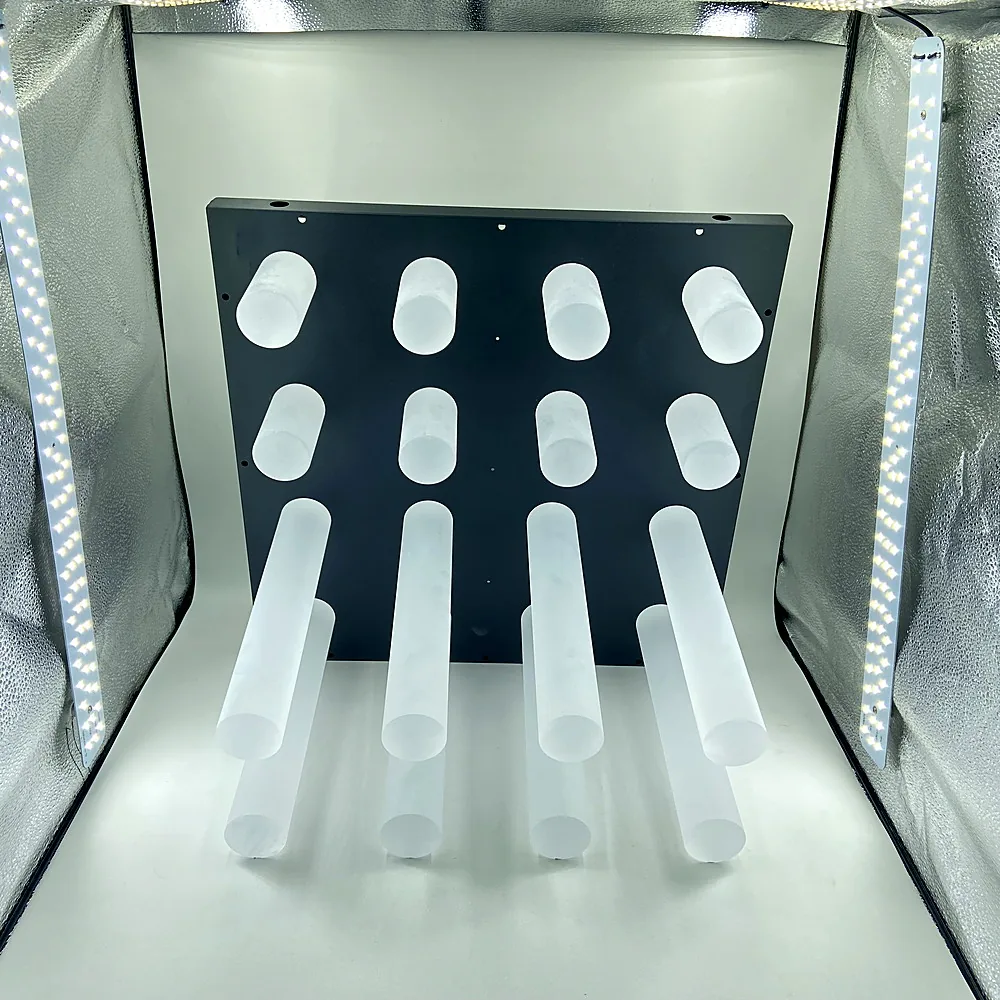

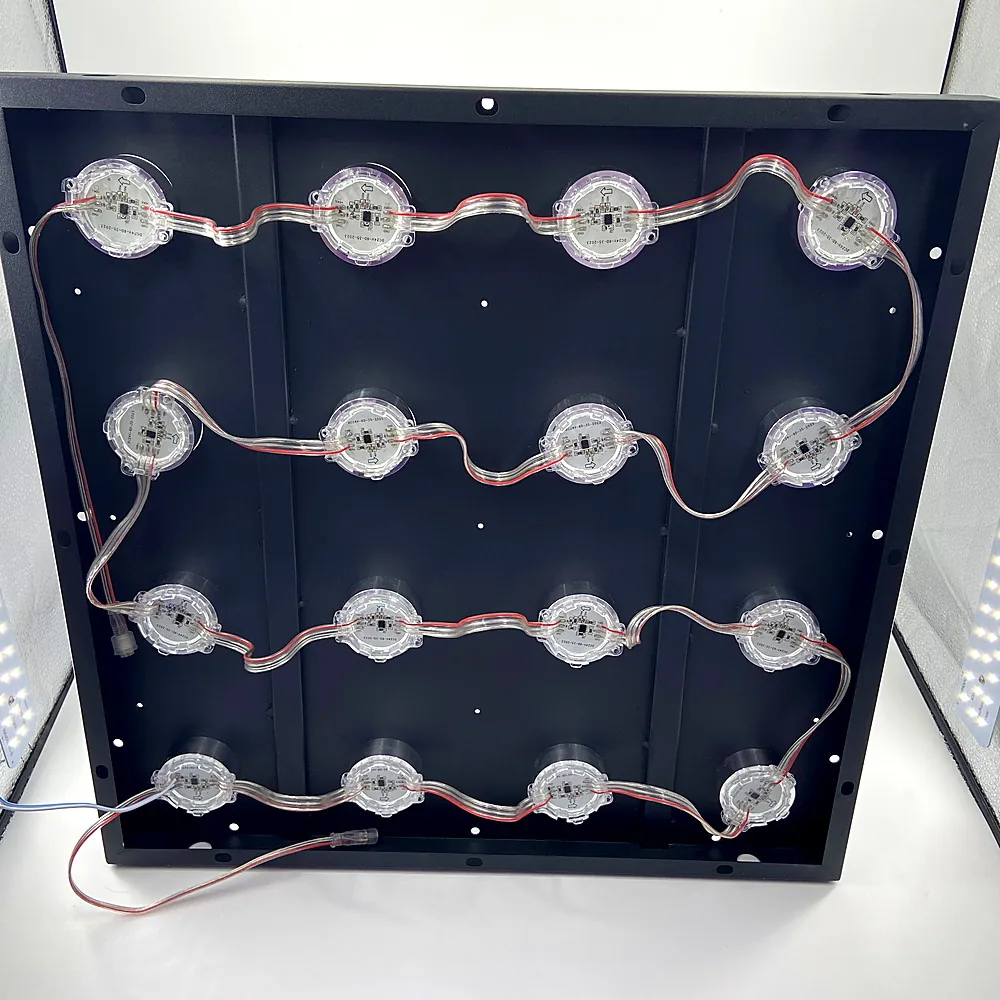

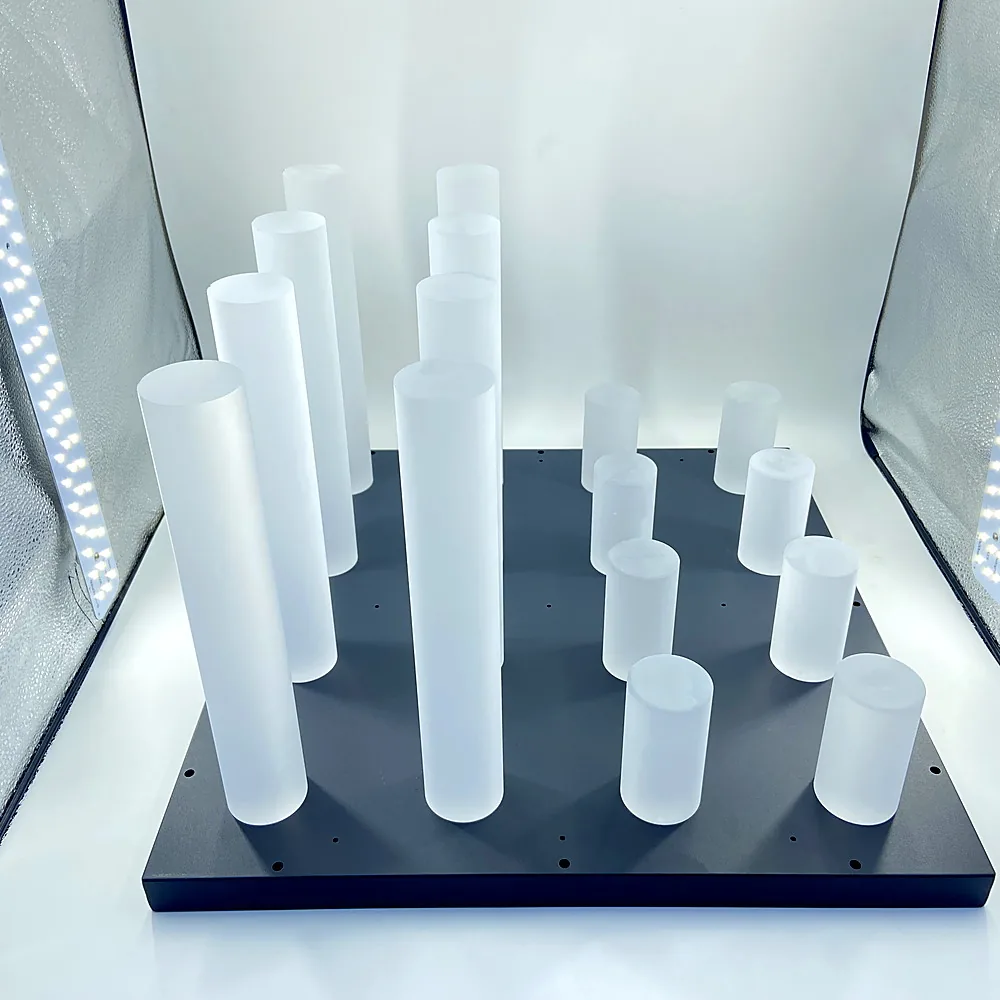

50mm Light-Guide RGB LED Point Light
Ws2811 LED Pixel Light 250LM full rgb color for Music Bar Light
Full-color RGB LED point light for pixel facade, signage and media-architecture arrays.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the 50mm Light-Guide RGB LED Point Light
The is a full-color RGB LED point light. It is suited to pixel point arrays for facades, signage, rides and media architecture.
It runs on low-voltage DC24V and draws 1.68W. The 360° beam angle sets the coverage of each point.
The housing is made of Aluminum Alloy. Expect a rated life of 50,000 Hours, a CRI of >80, up to 250LM per point.
Highlighted features
- RGB colour mixing with smooth dimming and gradients
- Low-voltage DC24V operation for safe, simple installation
- High colour rendering (CRI >80) for true-to-life output
- Up to 250LM luminous output per point
- Aluminium + PC housing for heat dissipation and durability
- 360° beam angle for controlled point coverage
Technical parameters
- Color
- Full-rgb
- Beam Angle
- 360°
- Power
- 1.68W
- Luminous Flux
- 250LM
- CRI
- >80
- Voltage
- DC24V
- Size
- Dia.50mm*H10/H20/H30mm
- Material
- Aluminum Alloy
- Lifespan
- 50,000 Hours
- Warranty
- 2 Years
Model — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.
Other LED Point Light models
Related pixel light lines
Questions?
Building your next pixel project?
Get a sample within 7 days — talk to a Pileds engineer about channels, optics, IP-rating, and finish for your venue. We reply within one business day.
