LED Controller · PI-1212A
12-Port Art-Net DMX Controller
12-Port Art-Net LED Controller with SD Card — Madrix Offline Control
Rack-format 12-port Art-Net controller for large DMX512/SPI pixel systems, with offline SD-card playback.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the 12-Port Art-Net DMX Controller

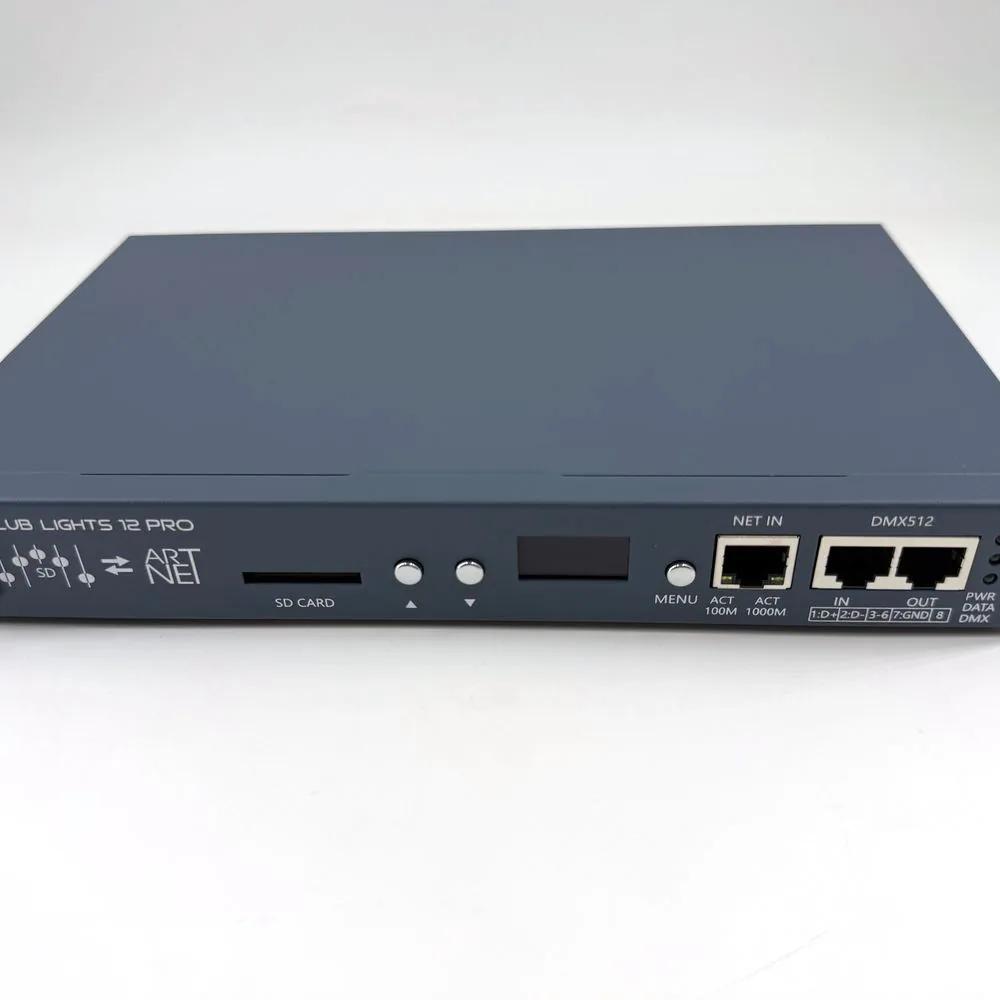

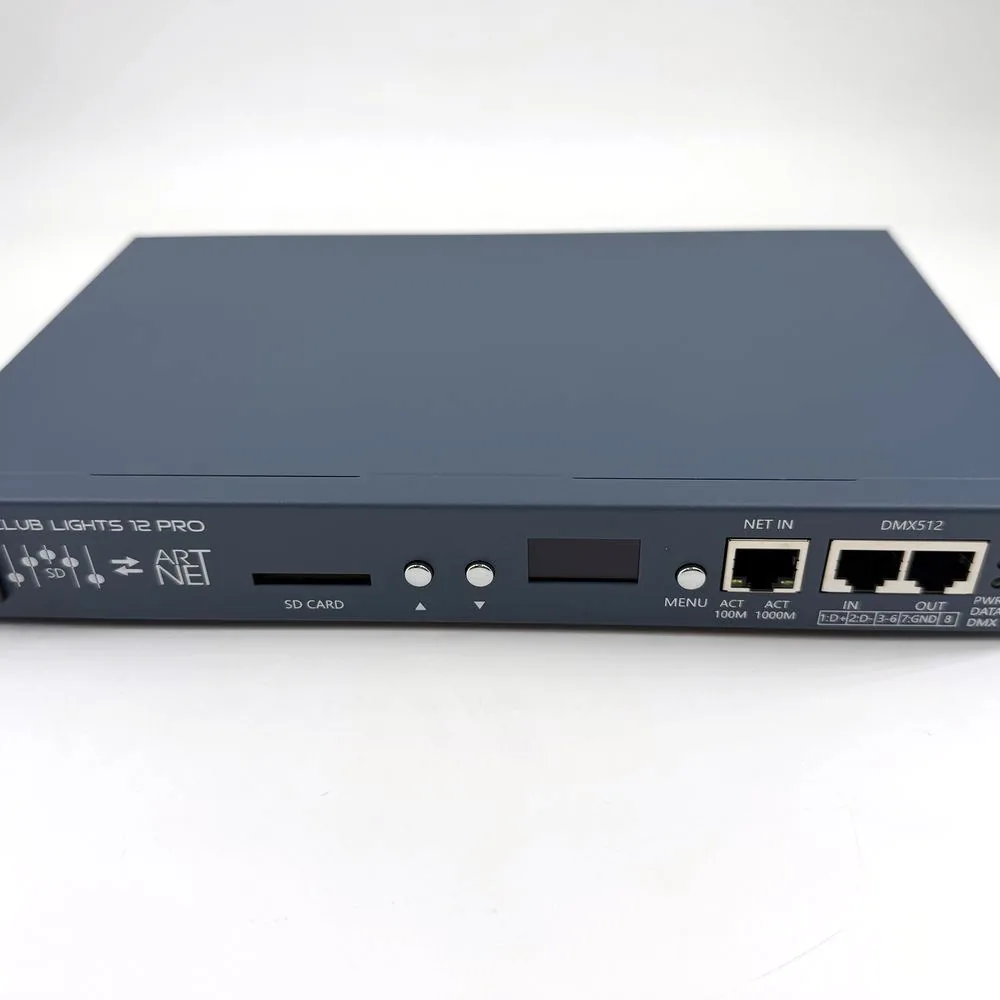

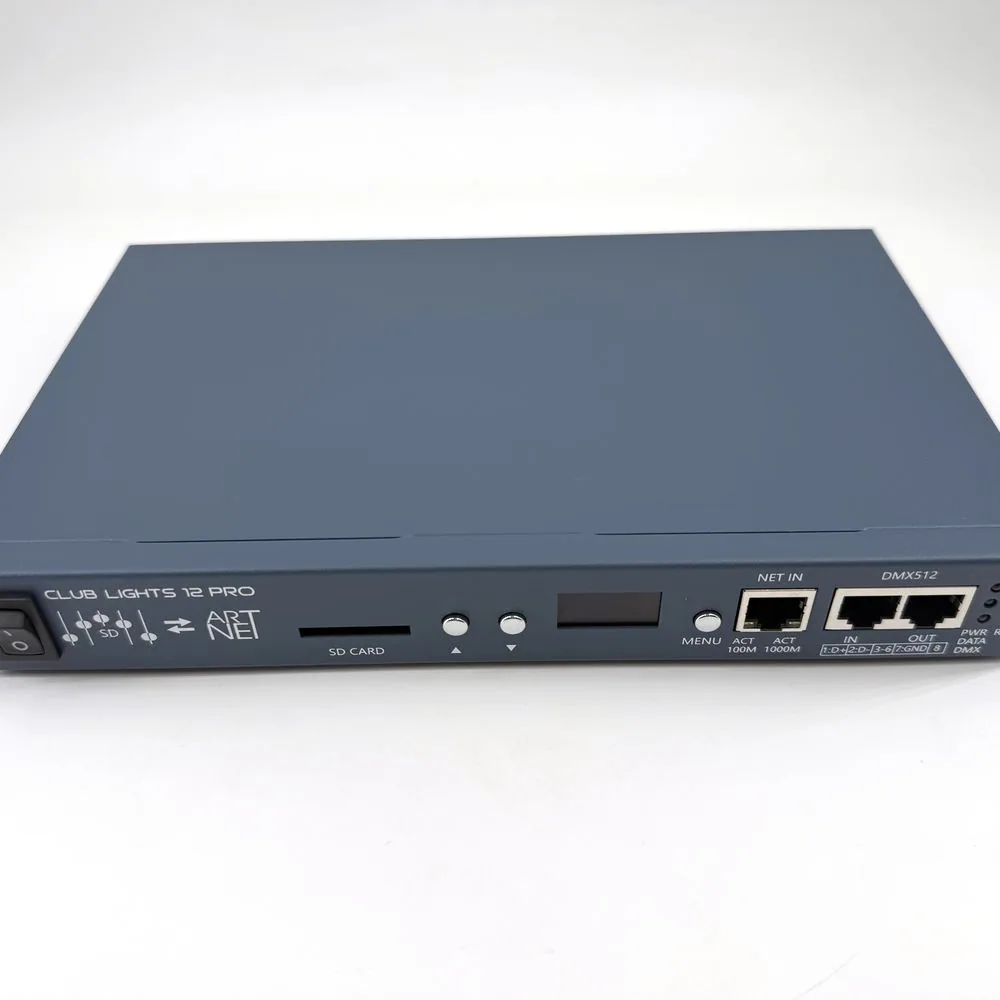

This 12-port Art-Net controller drives large addressable pixel systems from a single 1U-style rack unit. It takes Art-Net in and outputs DMX512 or SPI, and plays sequences offline from an SD card when no computer is on site.
Each unit handles up to 12 × 512 pixels over DMX or 12 × 1024 pixels over SPI, on 3/5-pin XLR female outputs. It runs on AC85–265V and is compatible with Madrix and MadMapper.
The 483 × 200 × 88 mm chassis fits standard control racks for stage and architectural installs.
Highlighted features

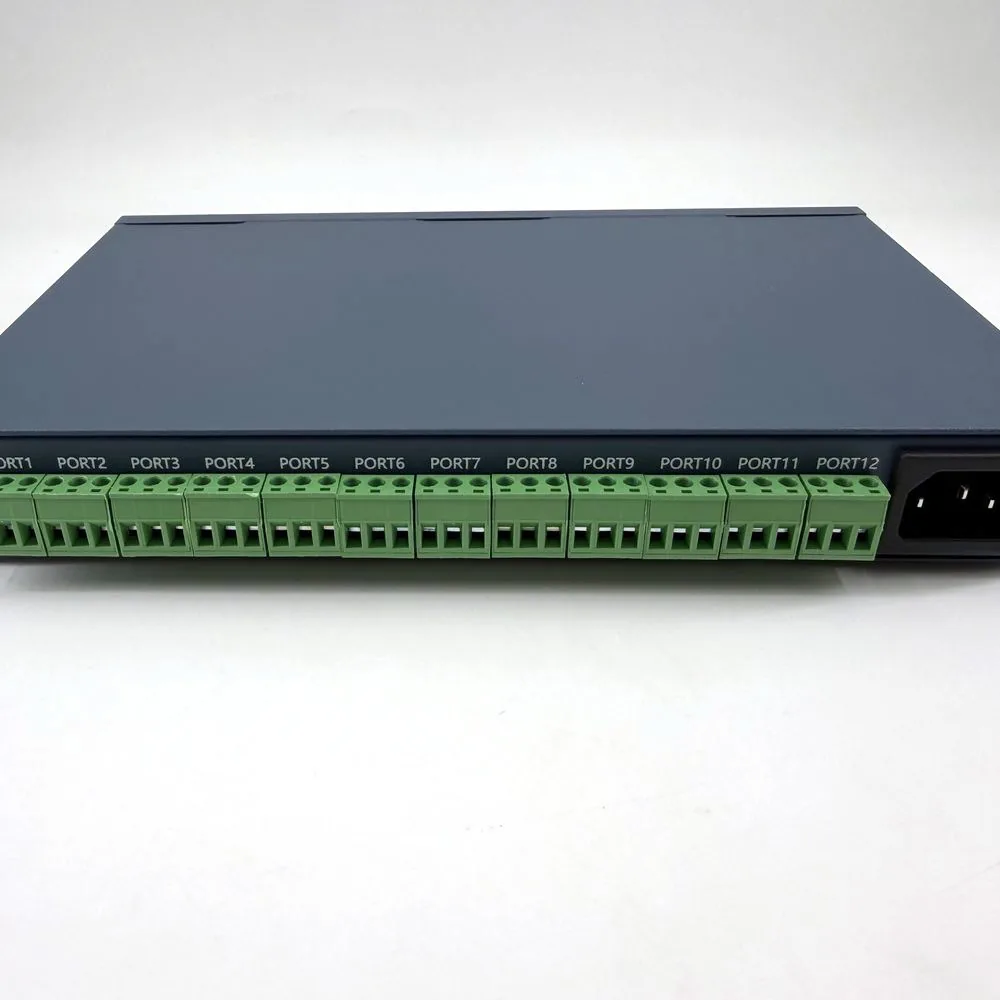

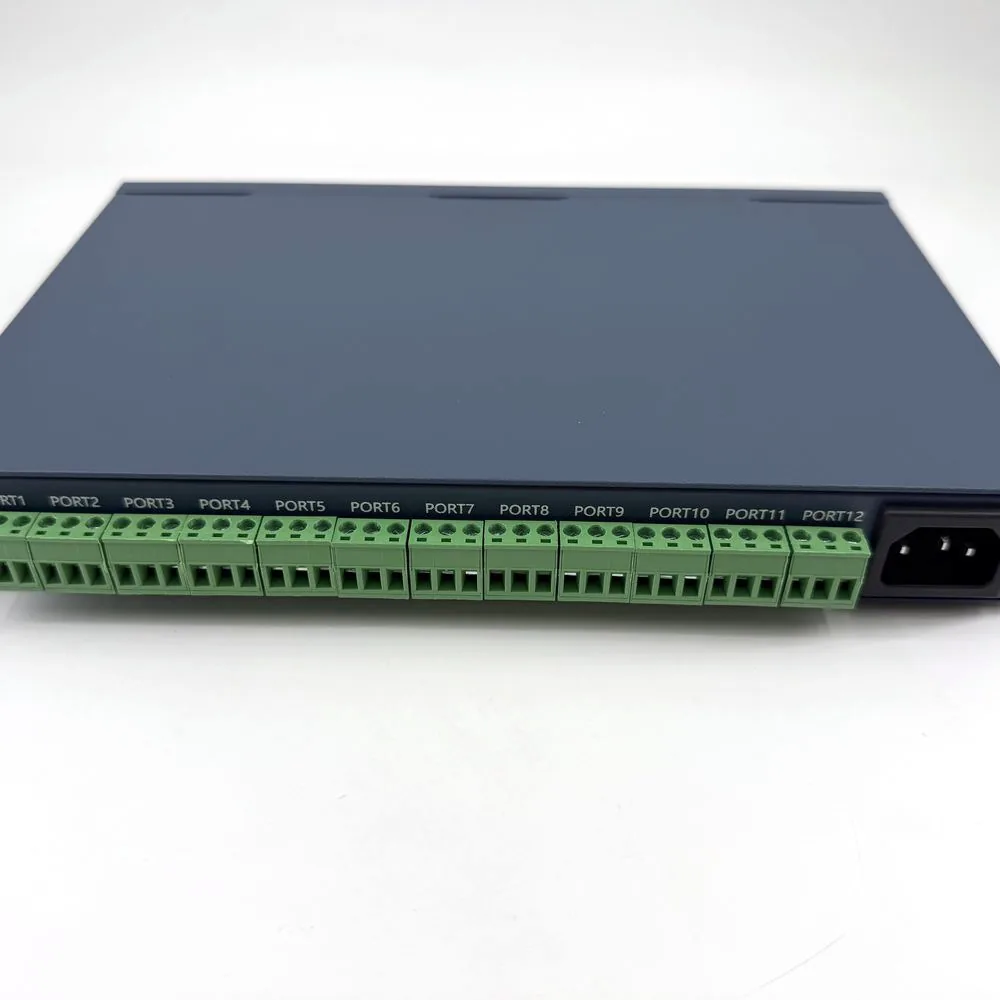

- 12 ports — DMX512 or SPI output on 3/5-pin XLR female
- Art-Net input with offline SD-card playback
- Up to 12 × 512 px (DMX) / 12 × 1024 px (SPI)
- Madrix and MadMapper compatible
- AC85–265V; rack-format 483 × 200 × 88 mm
Technical parameters
- Control Mode
- DMX512 / SPI / SD card
- Input Signal
- Art-Net
- Ports
- 12
- Pixels
- DMX 12×512 / SPI 12×1024
- Output Port
- 3/5-pin XLR female
- Power Supply
- AC85–265V
- Compatible
- Madrix, MadMapper
- Dimension
- 483 × 200 × 88 mm
- Lifespan
- 50,000 hrs
- Working Temperature
- -20℃ ~ 50℃
- Protection Level
- IP20
- Warranty
- 2 Years
Model PI-1212A — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
