K-8000C
LED Controller · 8-Port Art-Net

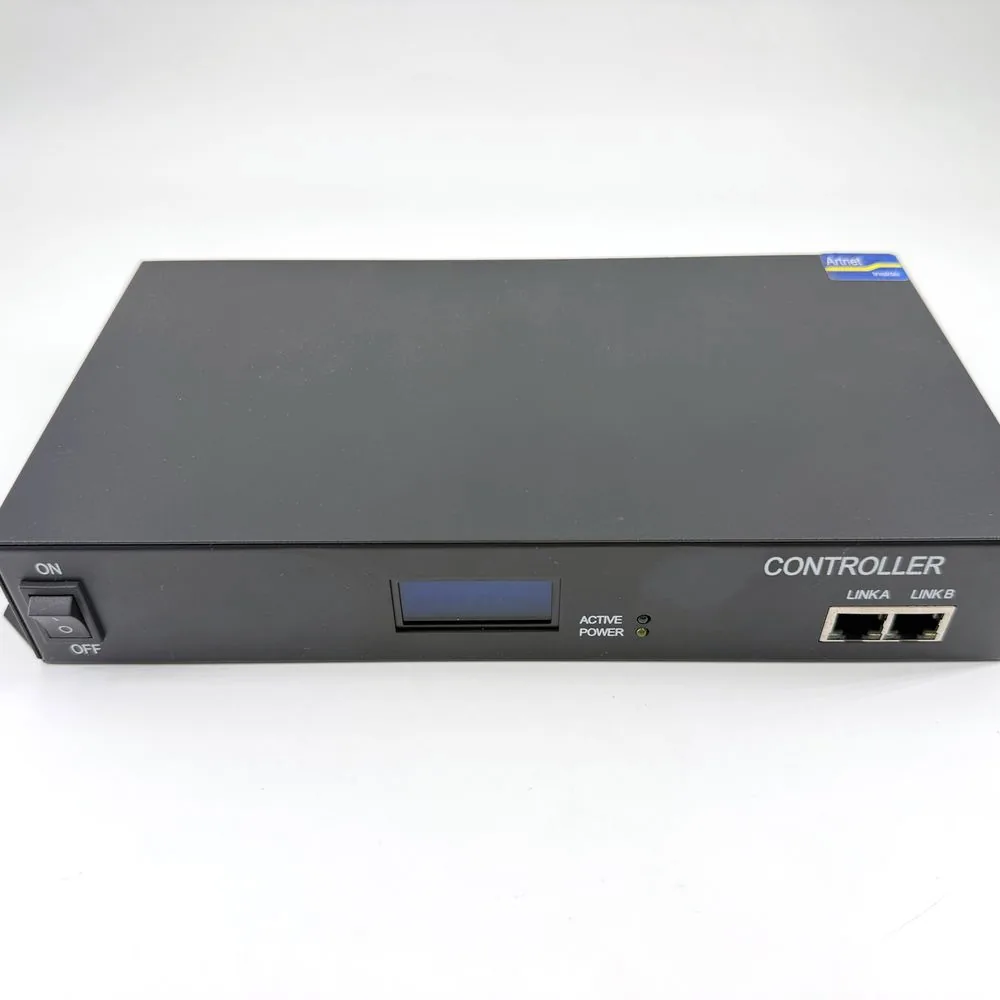

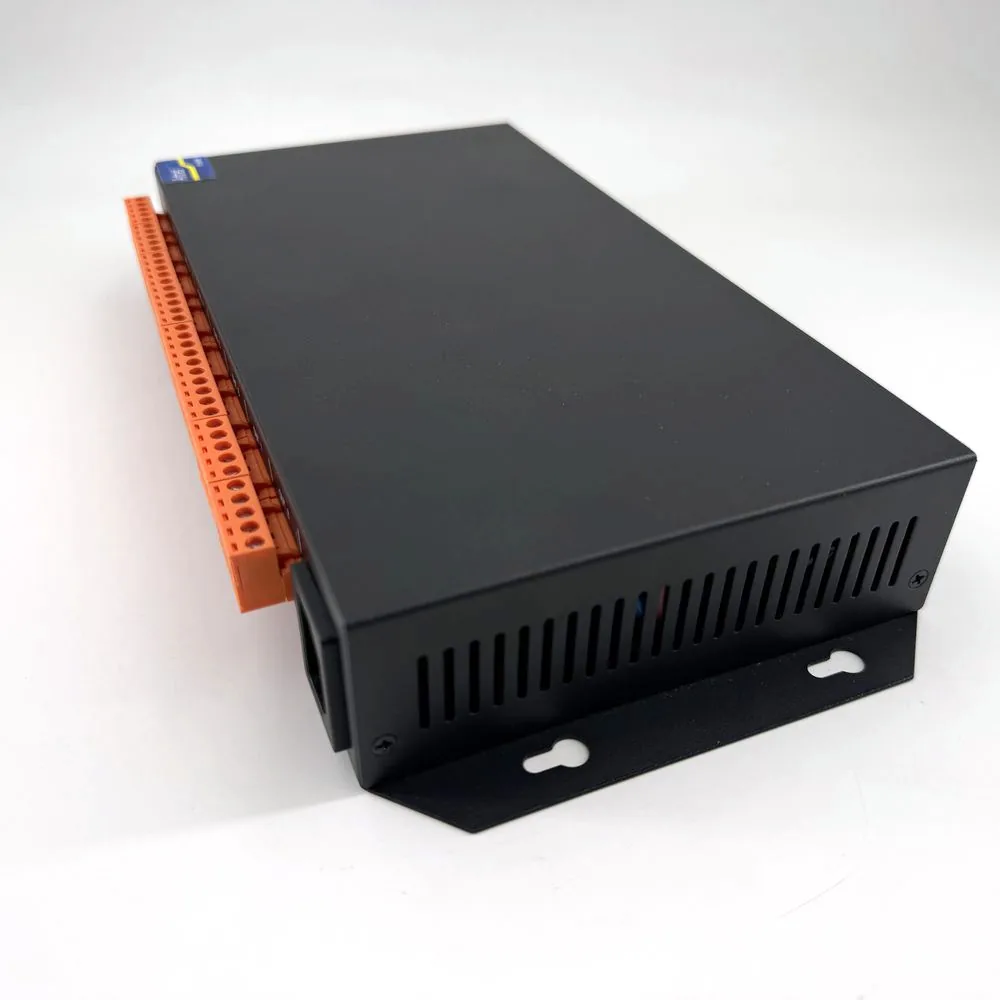

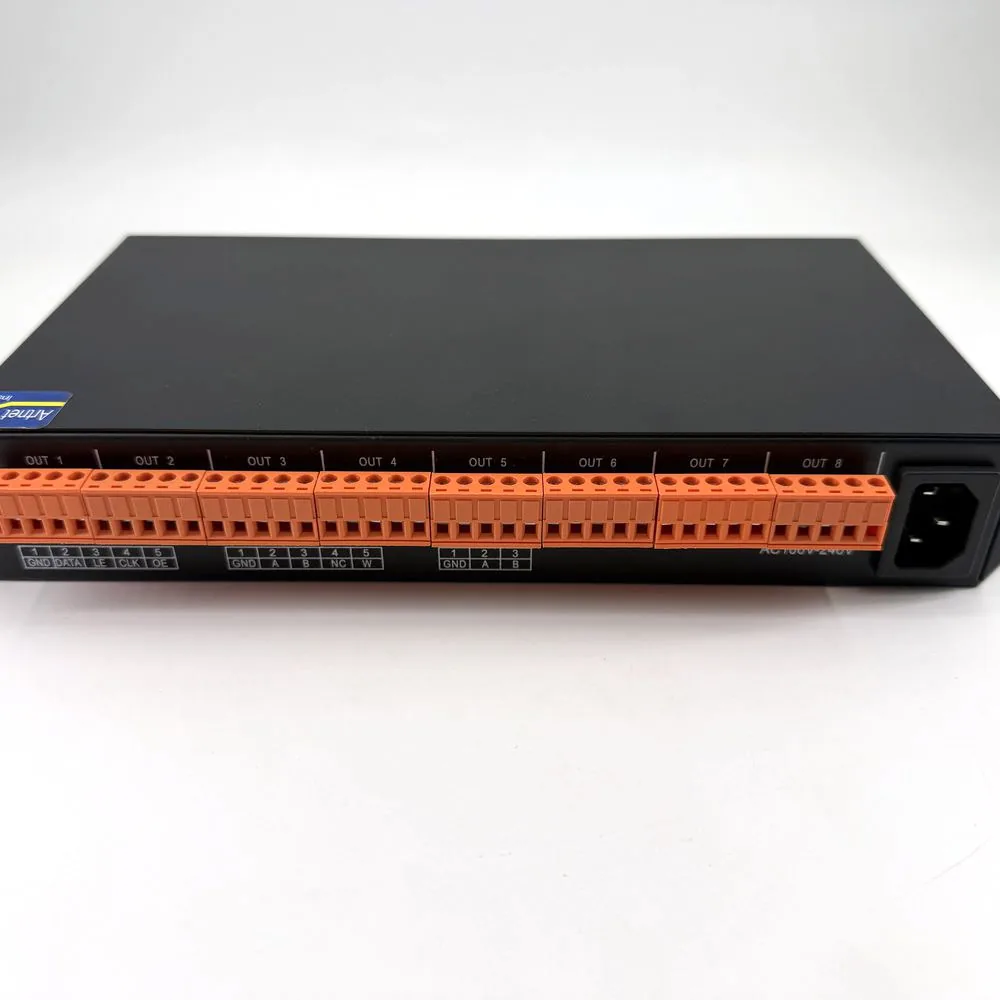

8-Port Art-Net DMX/SPI Controller
Art-Net Madrix DMX/SPI Controller — 5 Pin, 8 Port
8-port Art-Net controller for DMX/SPI pixel control — Madrix-compatible, with master–slave linking.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the 8-Port Art-Net DMX/SPI Controller
This 8-port Art-Net controller drives addressable pixel systems over DMX or SPI and chains in master–slave mode to scale up to larger installs.
It connects over 5-pin DMX and runs on AC85–265V mains. The IP20 housing suits indoor control racks.
Madrix compatibility and a 100m control distance make it a flexible node for stage, facade and signage chains.
Highlighted features
- 8 output ports — DMX or SPI signal
- Art-Net / Madrix compatible
- Master–slave linking for larger systems
- 5-pin DMX connector; AC85–265V input
- Control distance up to 100m
Technical parameters
- Output Channels
- DMX / SPI
- Control Mode
- Art-Net / Master–Slave
- Ports
- 8
- DMX Connector
- 5 Pin
- Input Voltage
- AC85–265V
- Protection Level
- IP20
- Control Distance
- ≤100m
- Working Temperature
- -20℃ ~ 60℃
- Weight
- 0.8KG
- Warranty
- 2 Years
Model 8-Port Art-Net — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
