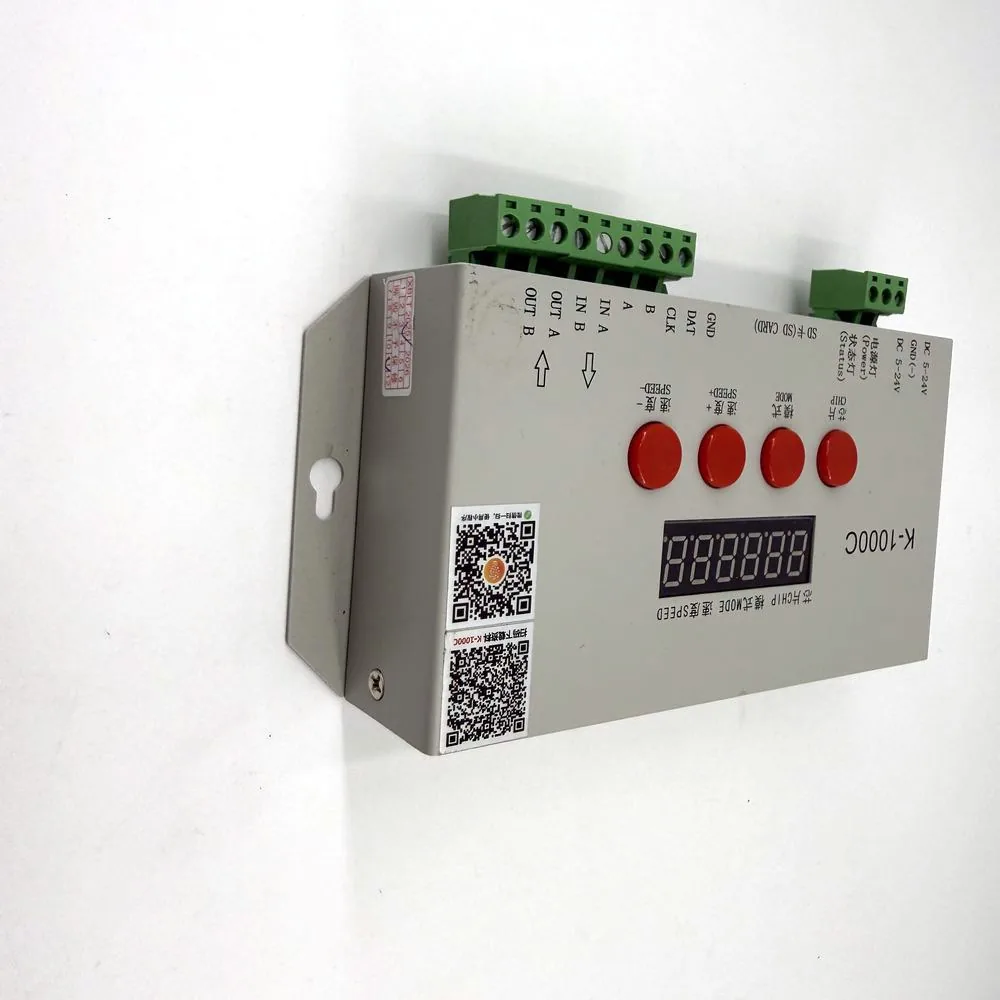

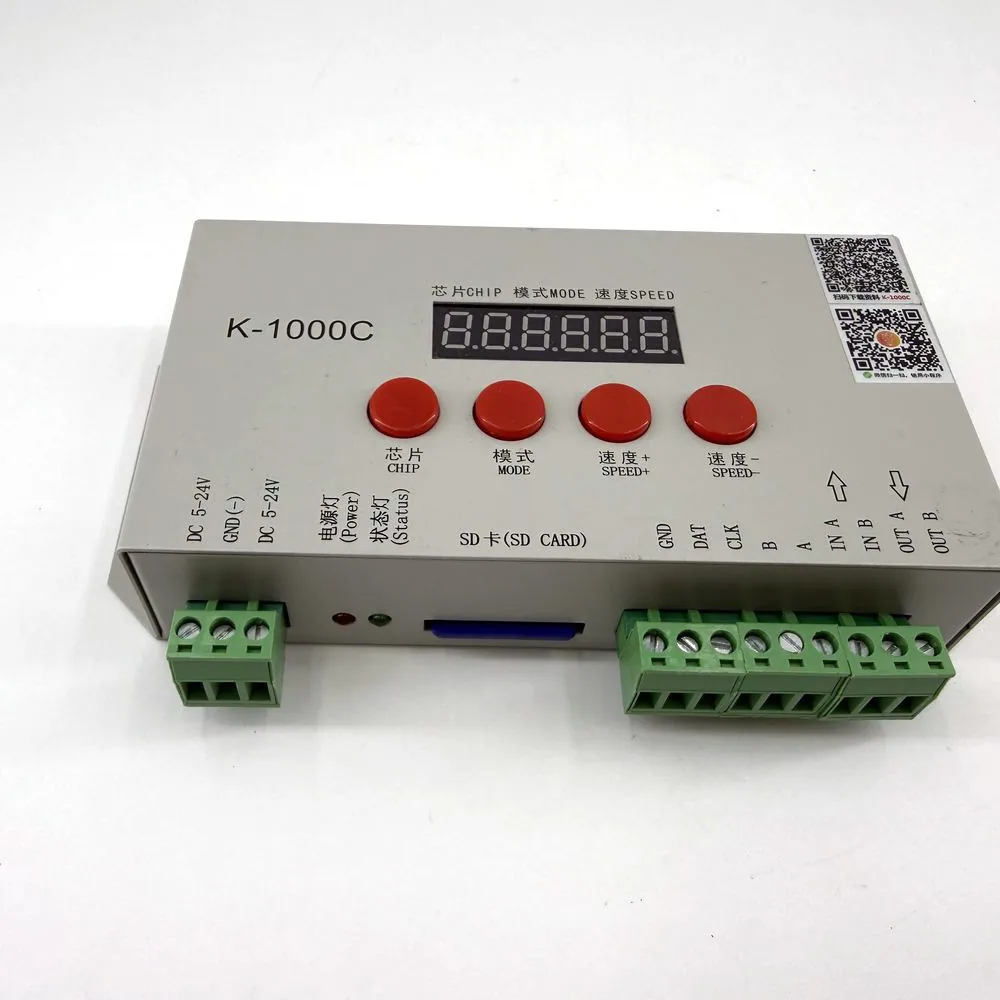

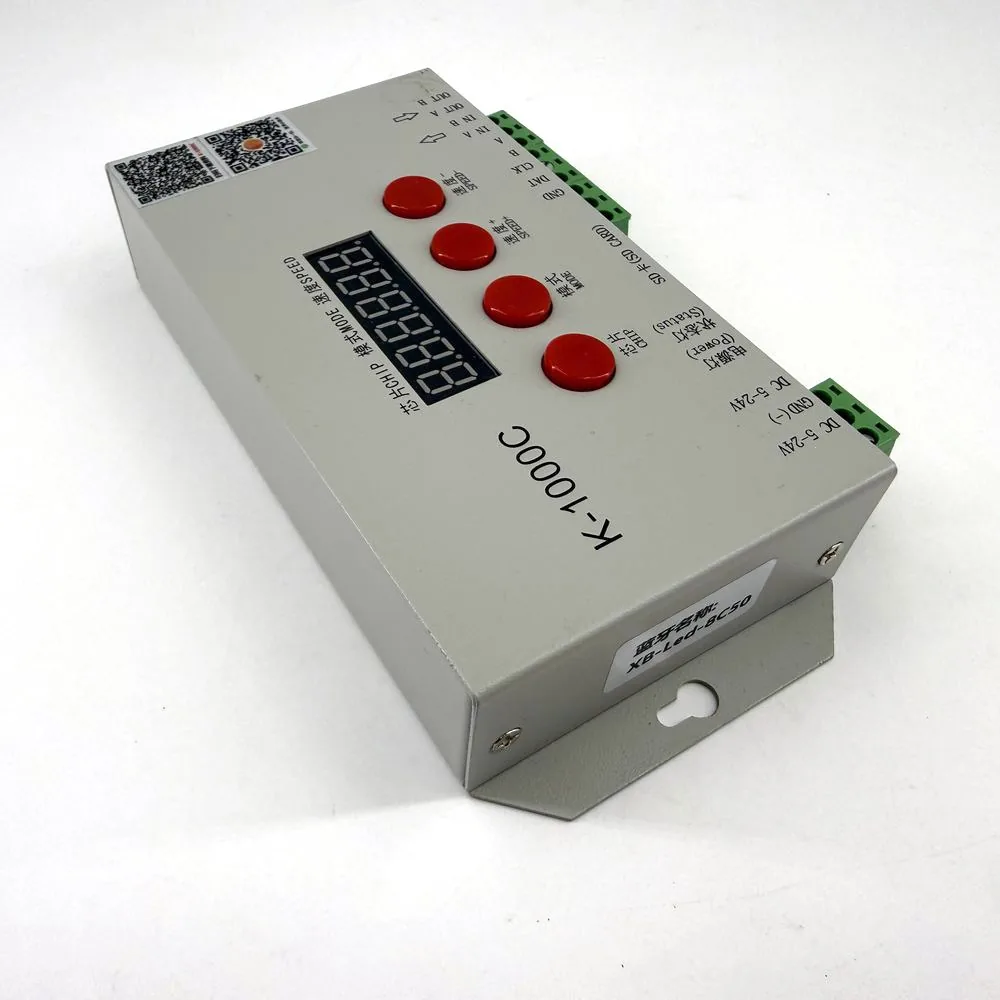

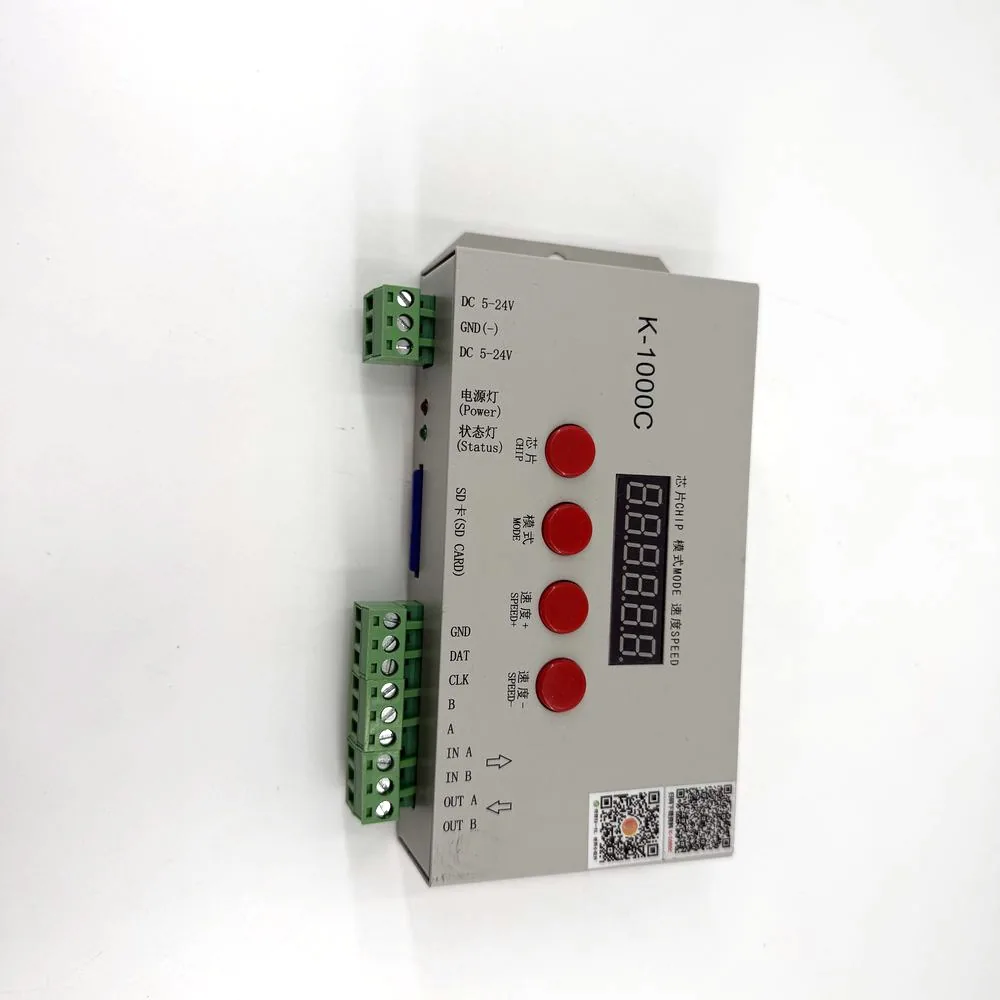

K-1000C SPI/DMX LED Controller
K-1000C RGB SPI LED Controller — SD Card, Digital Stage Lighting
Compact SPI/DMX pixel controller with SD-card playback; links as a single-port sub-controller under an Art-Net master.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the K-1000C SPI/DMX LED Controller
The K-1000C is a compact offline pixel controller that plays sequences from an SD card and slaves as a single-port sub-controller under an Art-Net main controller.
It outputs DMX or SPI on a 5-pin connector and runs on a wide DC5–24V input. The IP20 housing measures 200 × 50 × 30 mm.
A 100m control distance and −20°C to 60°C range suit it to stage and architectural pixel runs.
Highlighted features
- Offline SD-card playback for stand-alone running
- Links as a 1-port sub-controller under Art-Net
- DMX / SPI output on 5-pin connector
- Wide DC5–24V input
- Control distance up to 100m
Technical parameters
- Output Channels
- DMX / SPI
- Control Mode
- SD card / Art-Net sub-control
- DMX Connector
- 5 Pin
- Input Voltage
- DC5–24V
- Protection Level
- IP20
- Product Size
- 200 × 50 × 30 mm
- Control Distance
- ≤100m
- Working Temperature
- -20℃ ~ 60℃
- Weight
- 0.5KG
- Warranty
- 2 Years
Model K-1000C — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
