PI-8008B
LED Controller · PI-808SD

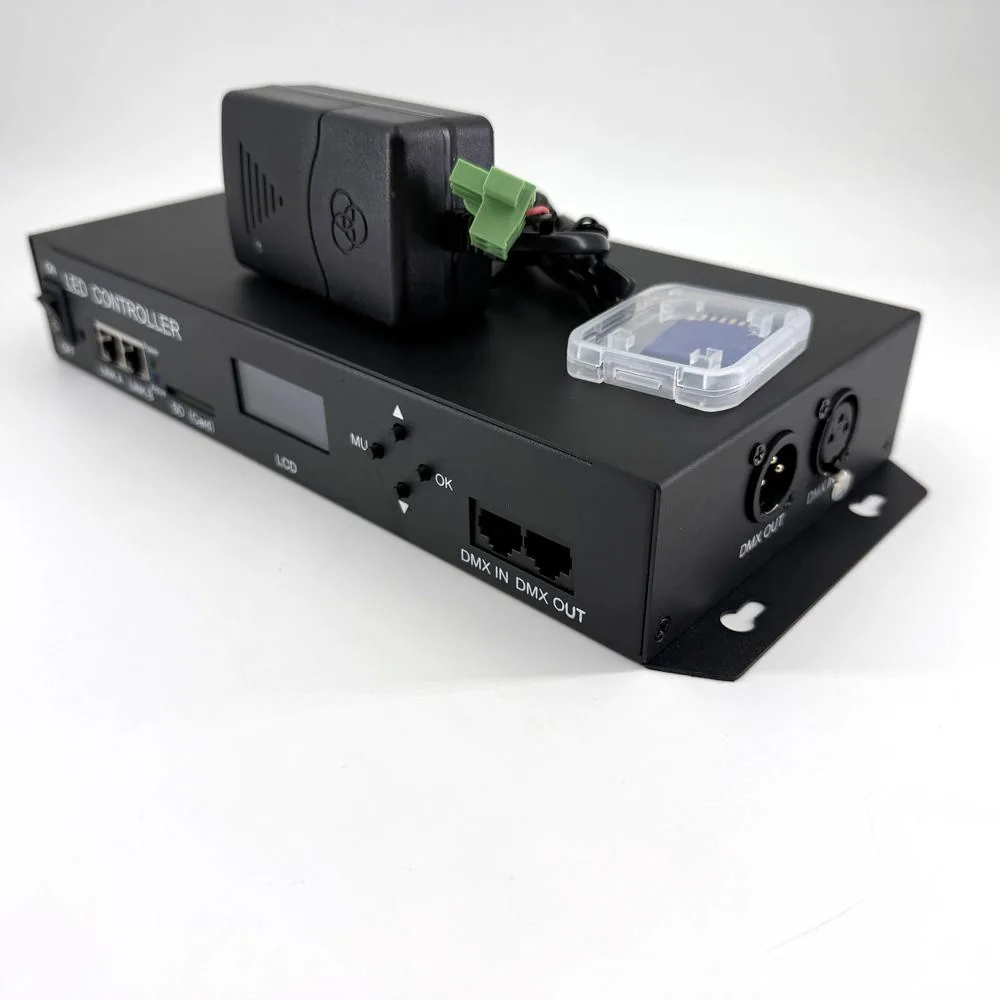

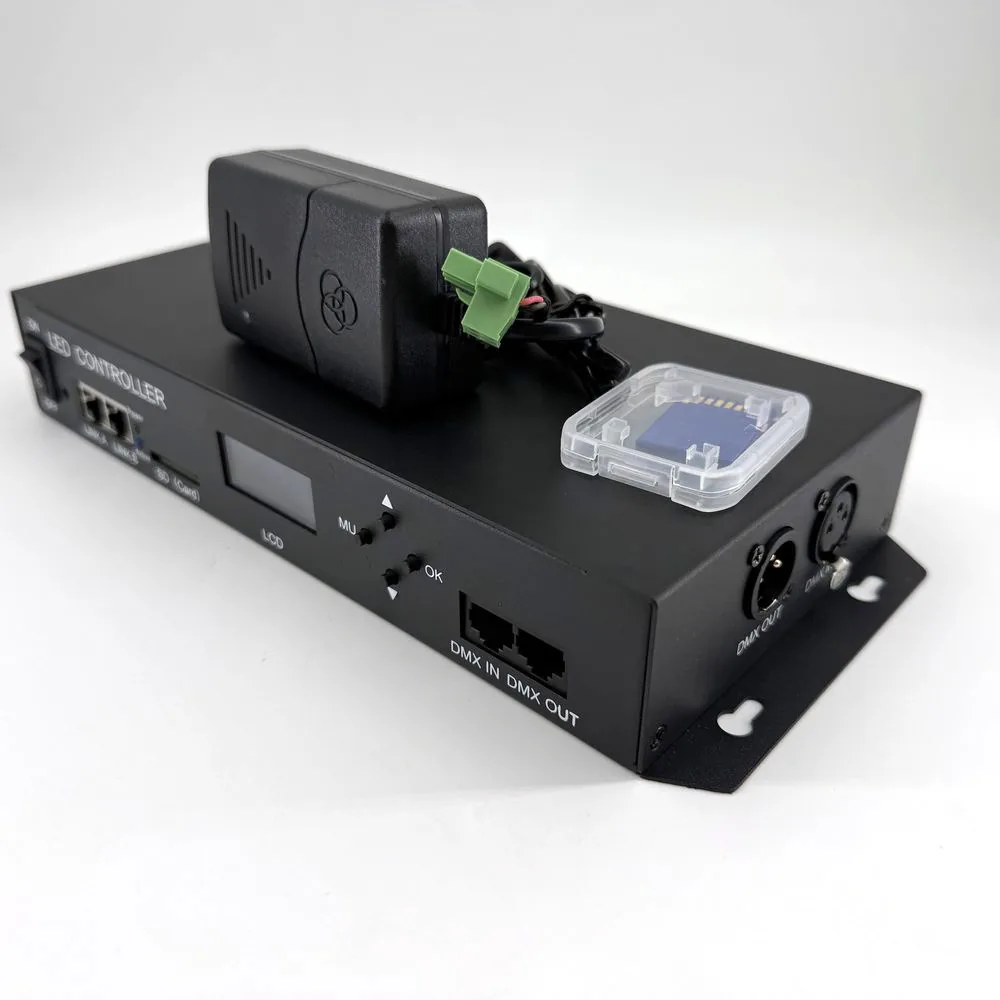

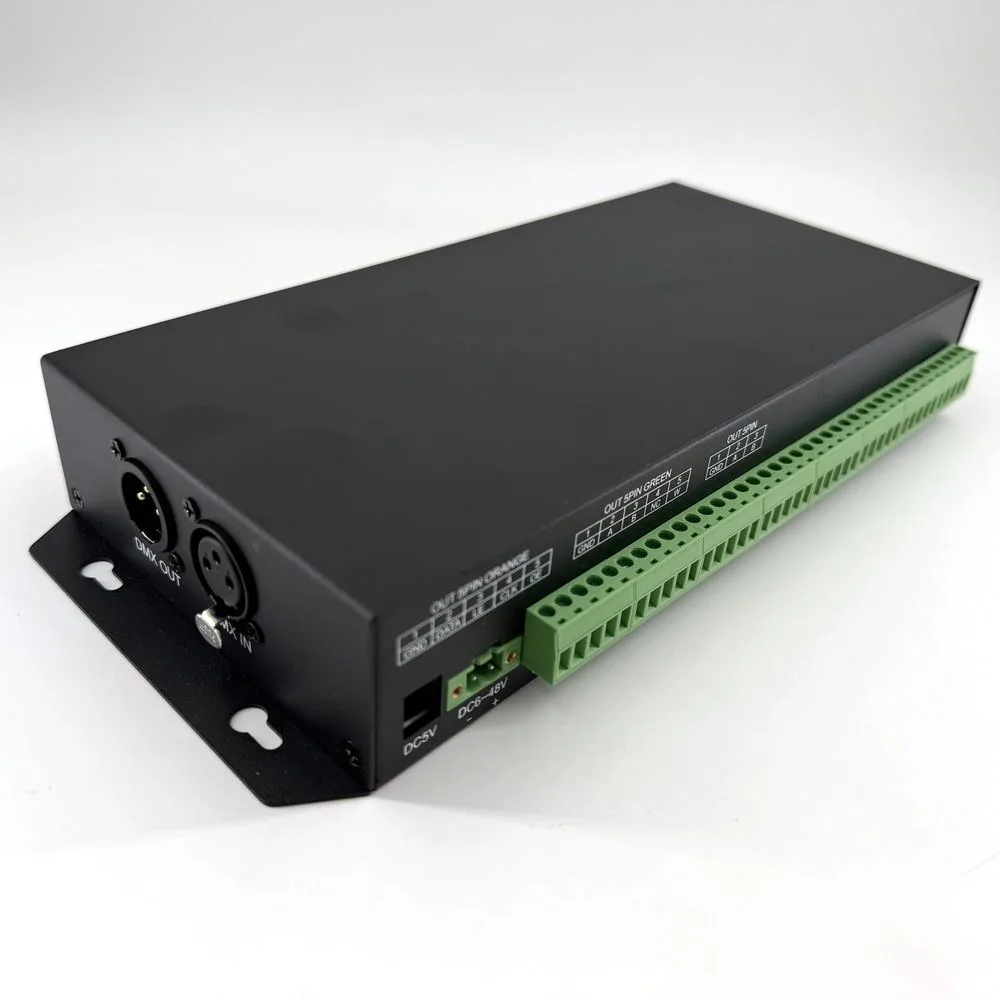

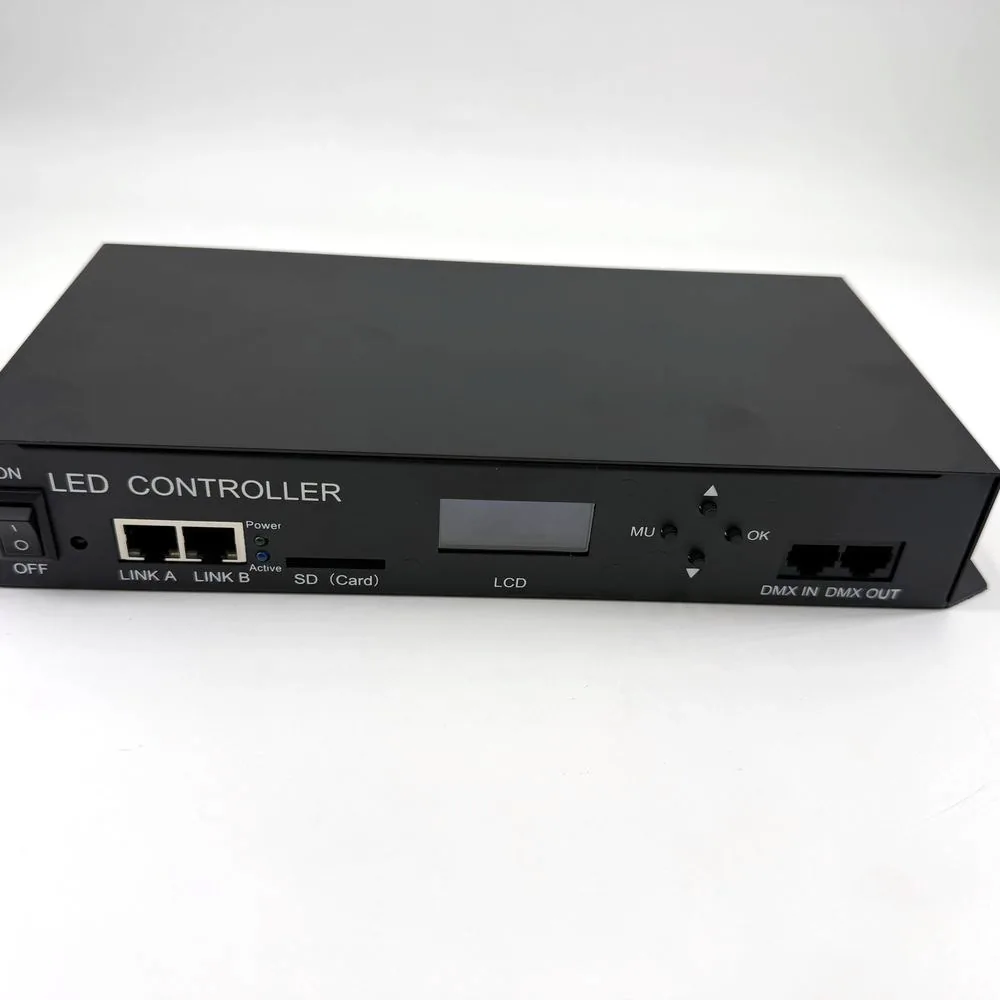

8-Port Art-Net SD Card LED Controller
8 Ports SPI LED Controller with SD Card — Art-Net / DMX Offline Control for RGB Stage Lighting
8-port SPI/DMX LED controller with an onboard SD card for Art-Net online or offline playback on RGB stage and lighting installs.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the 8-Port Art-Net SD Card LED Controller
The PI-808SD is an 8-port LED controller for addressable pixel systems. It runs online over Art-Net / Madrix or plays sequences offline from an onboard SD card, so shows keep running without a computer.
Each of the 8 ports outputs DMX or SPI signal. It connects via 5-pin DMX and runs on AC85–265V mains.
With a control distance up to 100m and −20°C to 60°C operation, it suits stage rigs, signage and architectural control chains.
Highlighted features
- 8 output ports — DMX or SPI signal
- Online Art-Net / Madrix control or offline SD-card playback
- 5-pin DMX connector; AC85–265V mains input
- Control distance up to 100m
- −20°C to 60°C working range
Technical parameters
- Output Channels
- DMX / SPI
- Control Mode
- Online / Offline (SD card)
- Ports
- 8
- DMX Connector
- 5 Pin
- Input Voltage
- AC85–265V
- Protection Level
- IP20
- Control Distance
- ≤100m
- Working Temperature
- -20℃ ~ 60℃
- Weight
- 0.8KG
- Warranty
- 2 Years
Model PI-808SD — configurable per order. Request the full datasheet.
