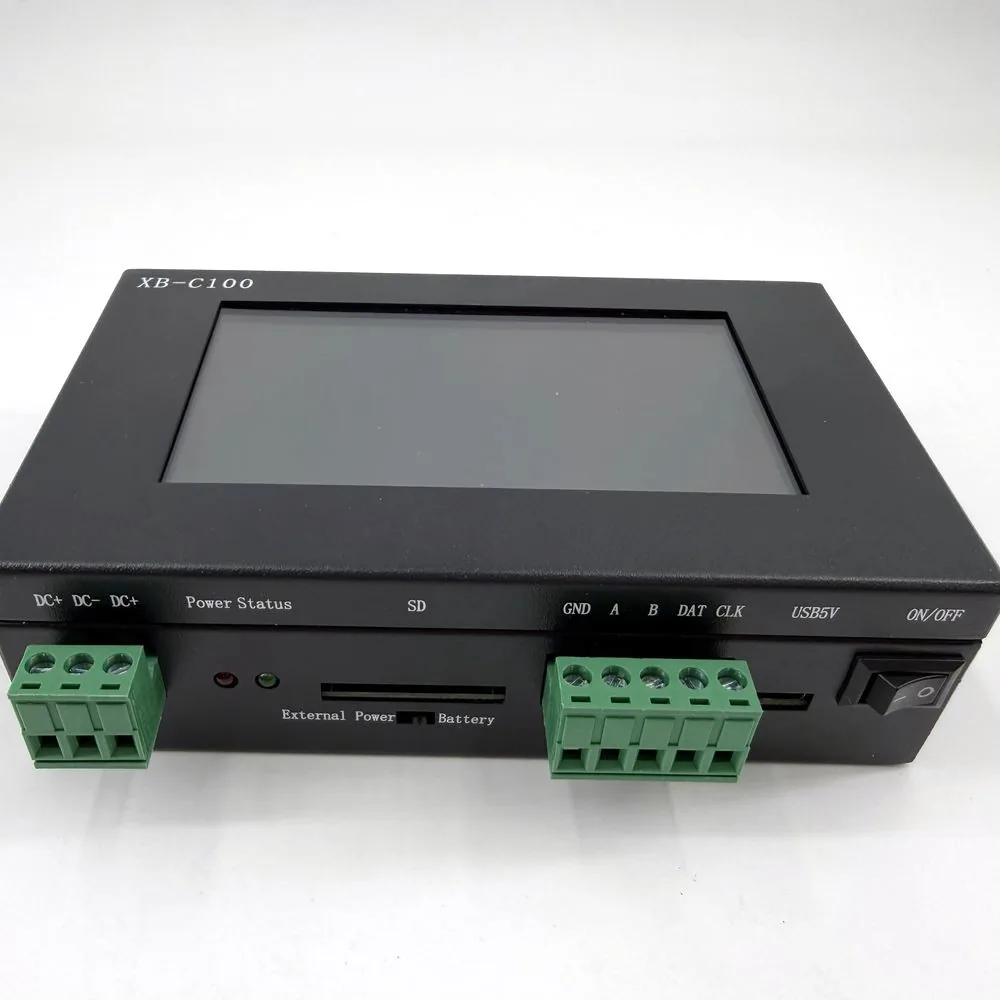

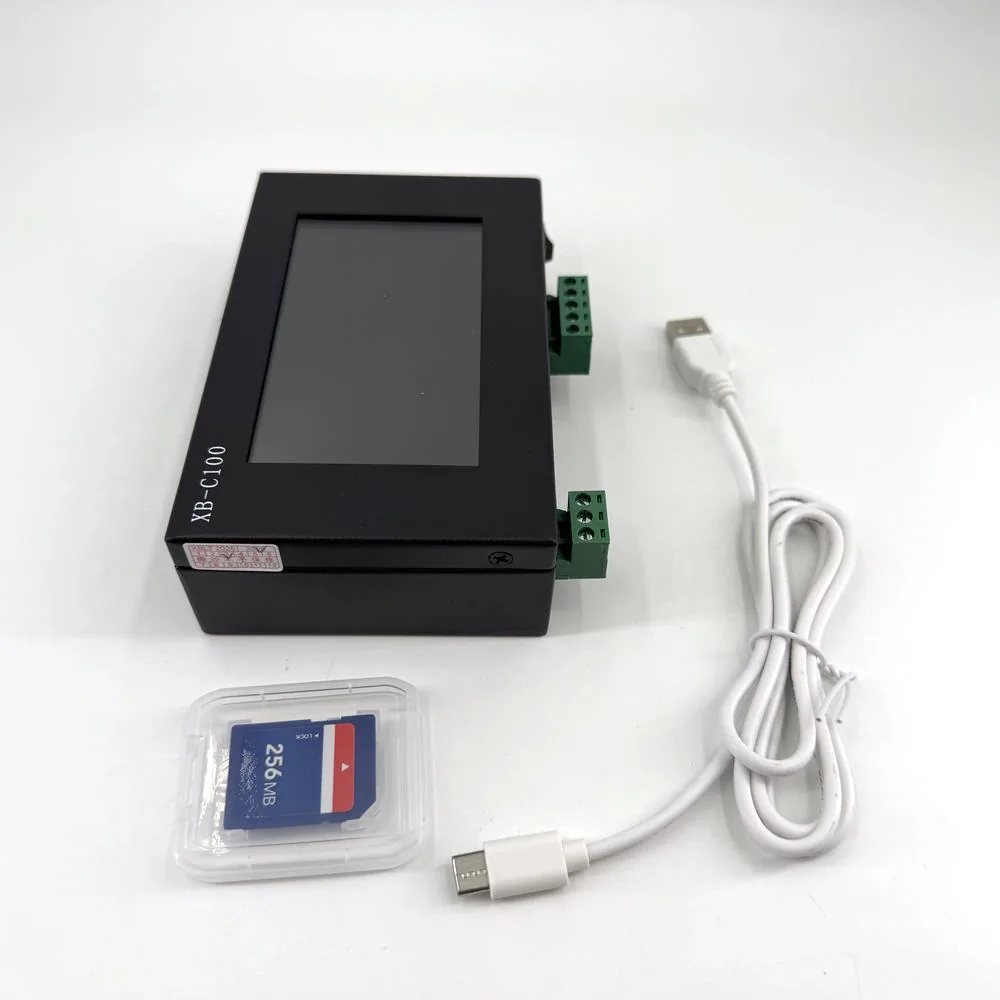

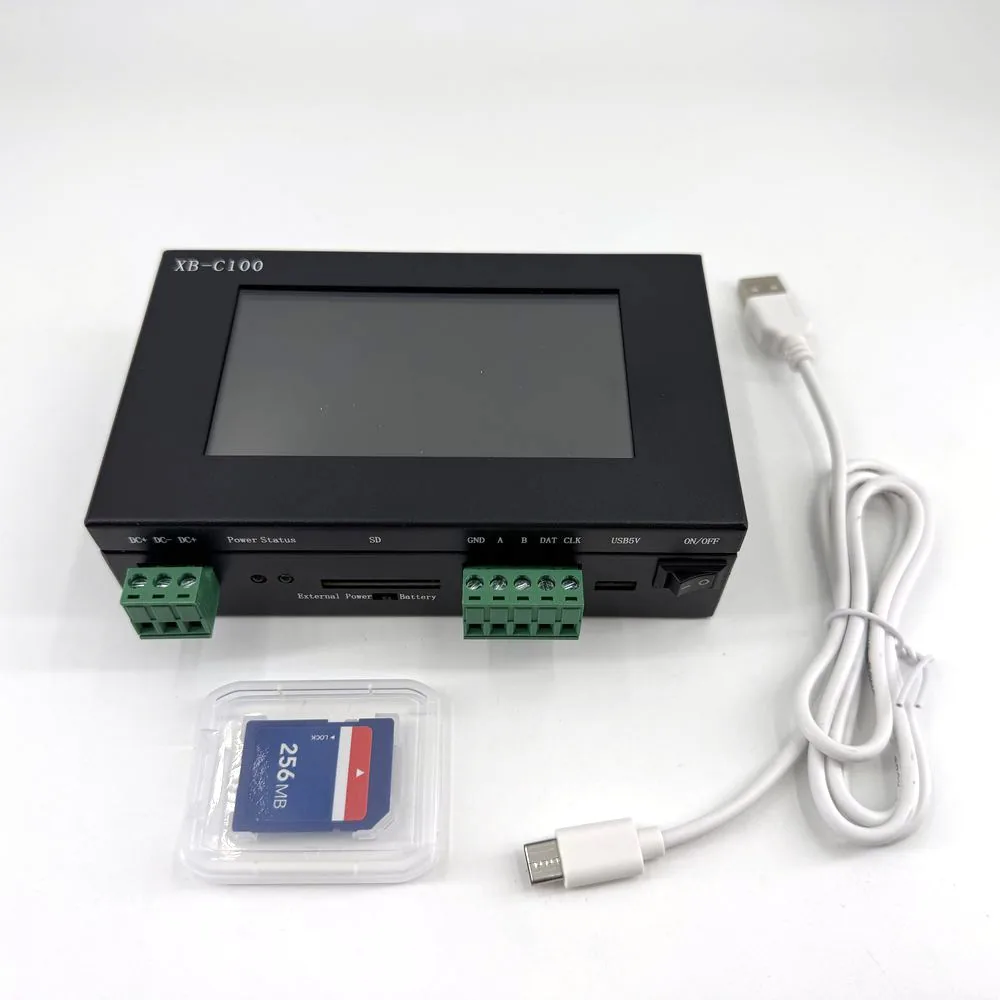

XB-C100 DMX Address Writer
XB-C100 DMX Address Writer for RGB / RGBW Fixtures — 5 Pin
Handheld DMX address writer for setting addresses on RGB and RGBW DMX512 fixtures.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
About the XB-C100 DMX Address Writer
The XB-C100 writes DMX512 addresses to RGB and RGBW pixel fixtures, so installers can assign channels in the field without a console.
It connects over 5-pin DMX and runs on a wide DC5–24V input. The IP20 housing suits bench and indoor commissioning work.
Lightweight at 0.4 kg, it is built for fast addressing across large fixture counts.
Highlighted features
- Writes DMX512 addresses to RGB / RGBW fixtures

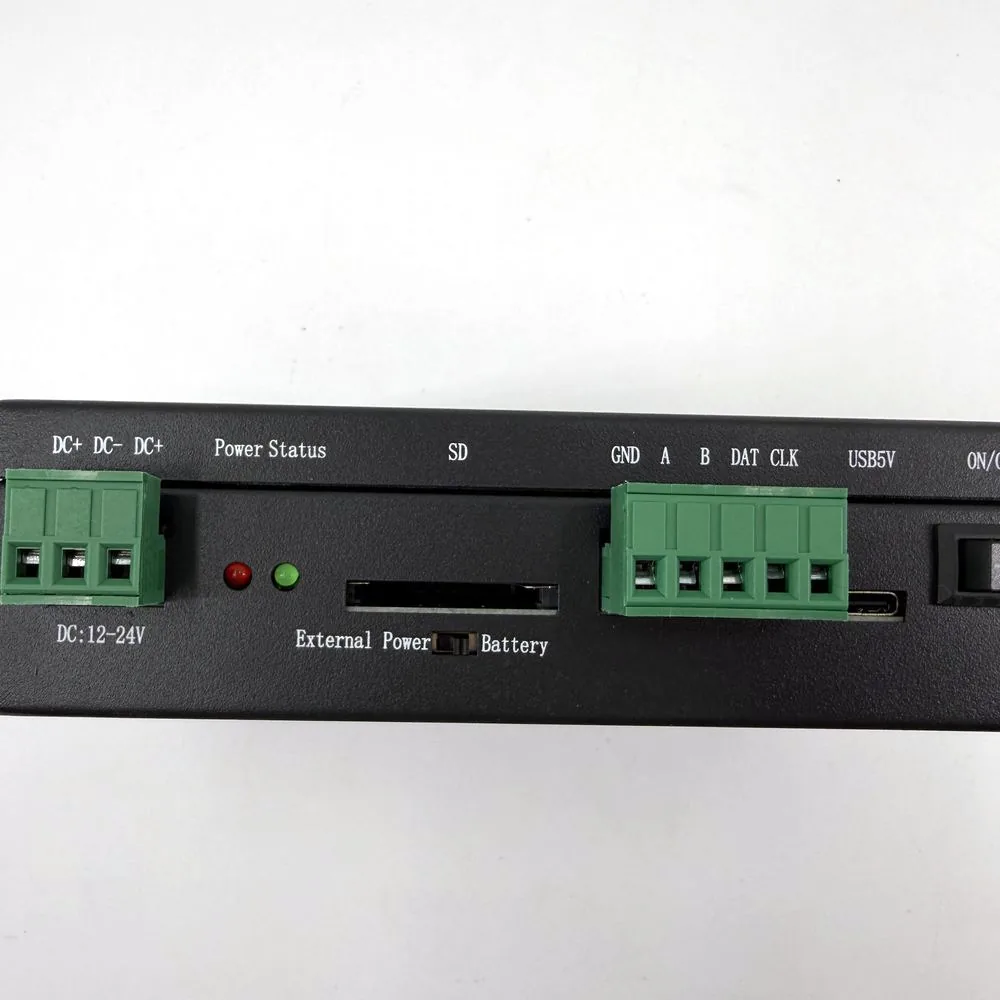

- 5-pin DMX connector
- Wide DC5–24V input
- Single-port, handheld commissioning tool
- −20°C to 60°C working range
Technical parameters
- Function
- DMX512 address writer
- Control Mode
- DMX
- Output Channels
- DMX
- Ports
- 1
- DMX Connector
- 5 Pin
- Input Voltage
- DC5–24V
- Protection Level
- IP20
- Working Temperature
- -20℃ ~ 60℃
- Weight
- 0.4KG
- Warranty
- 2 Years
Model XB-C100 — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
