PI-10060ICRGB-50S
LED Strip · RGBWW 4in1

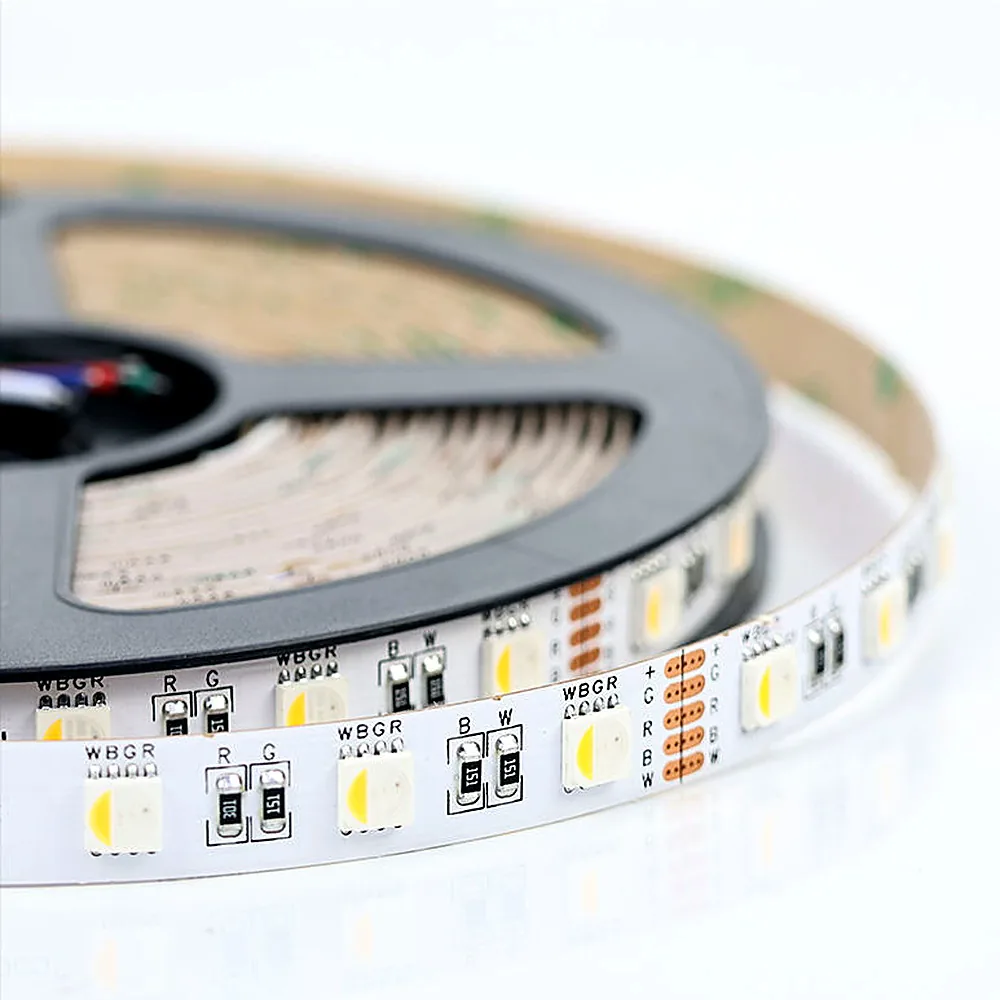

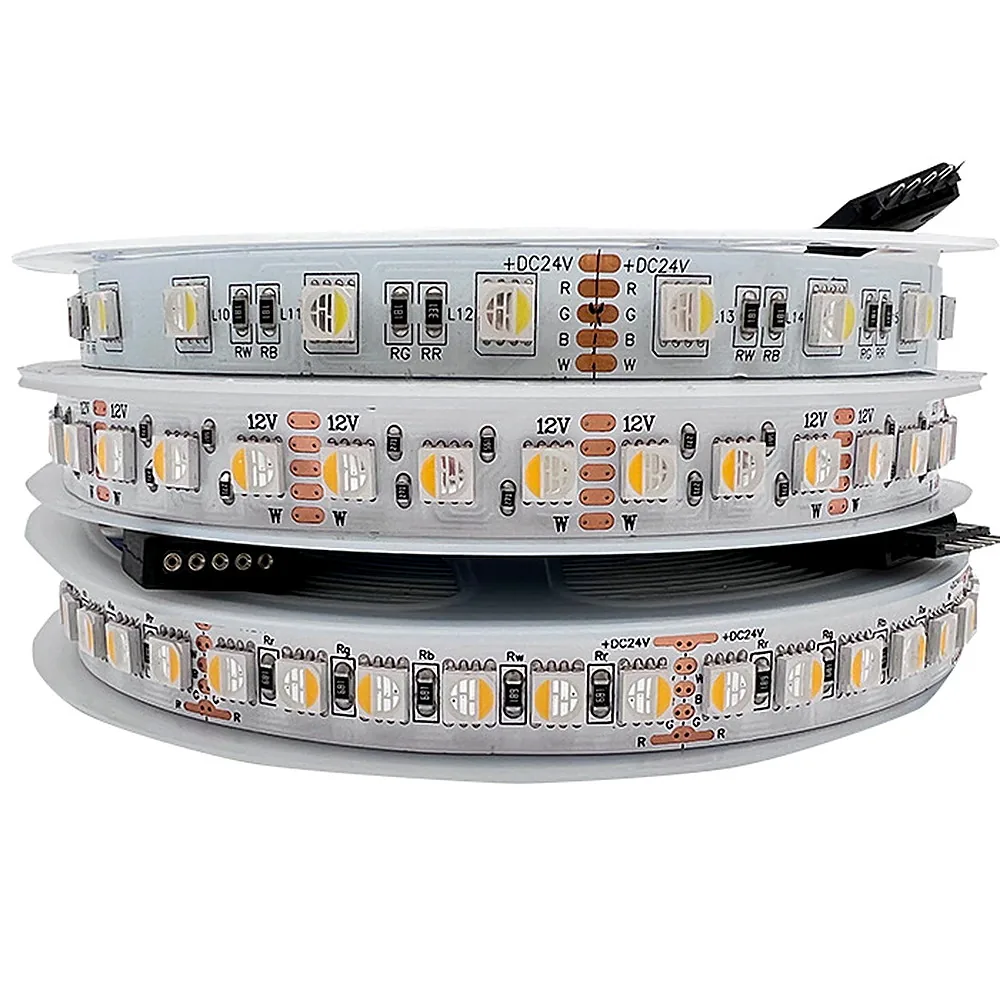

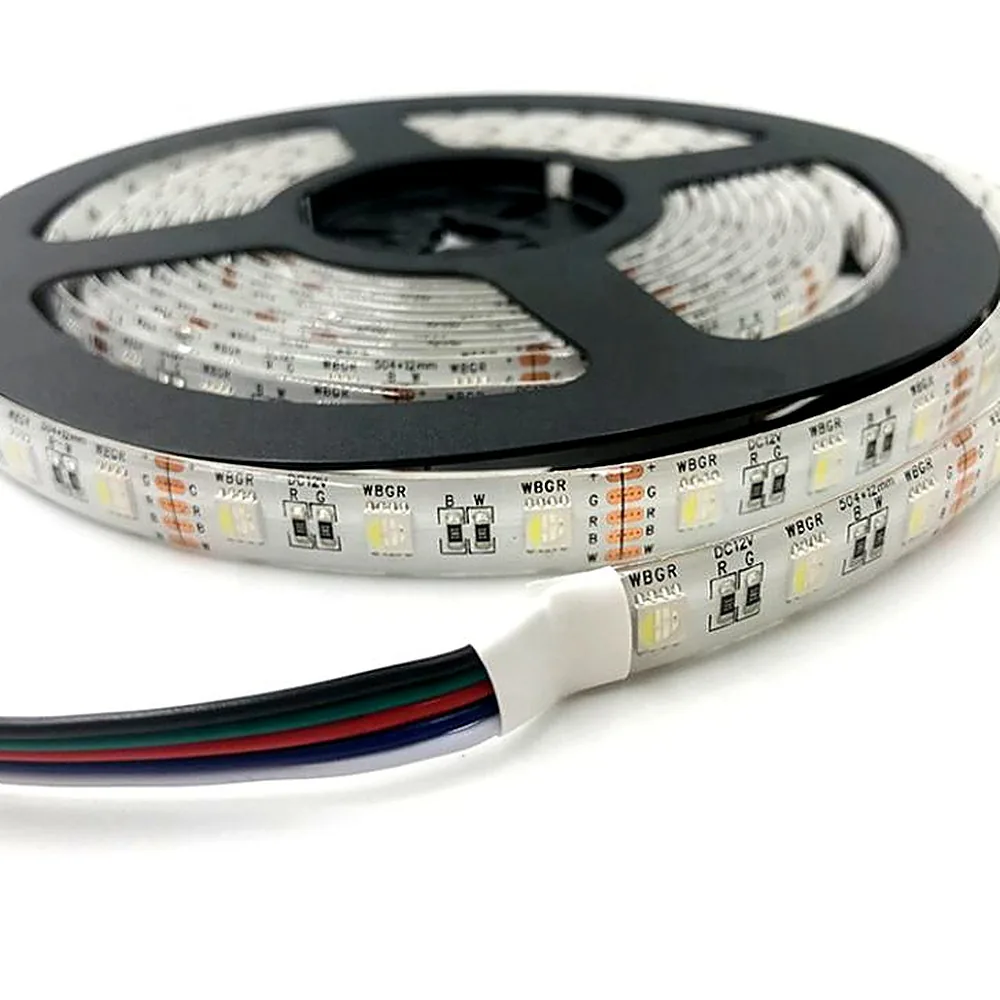

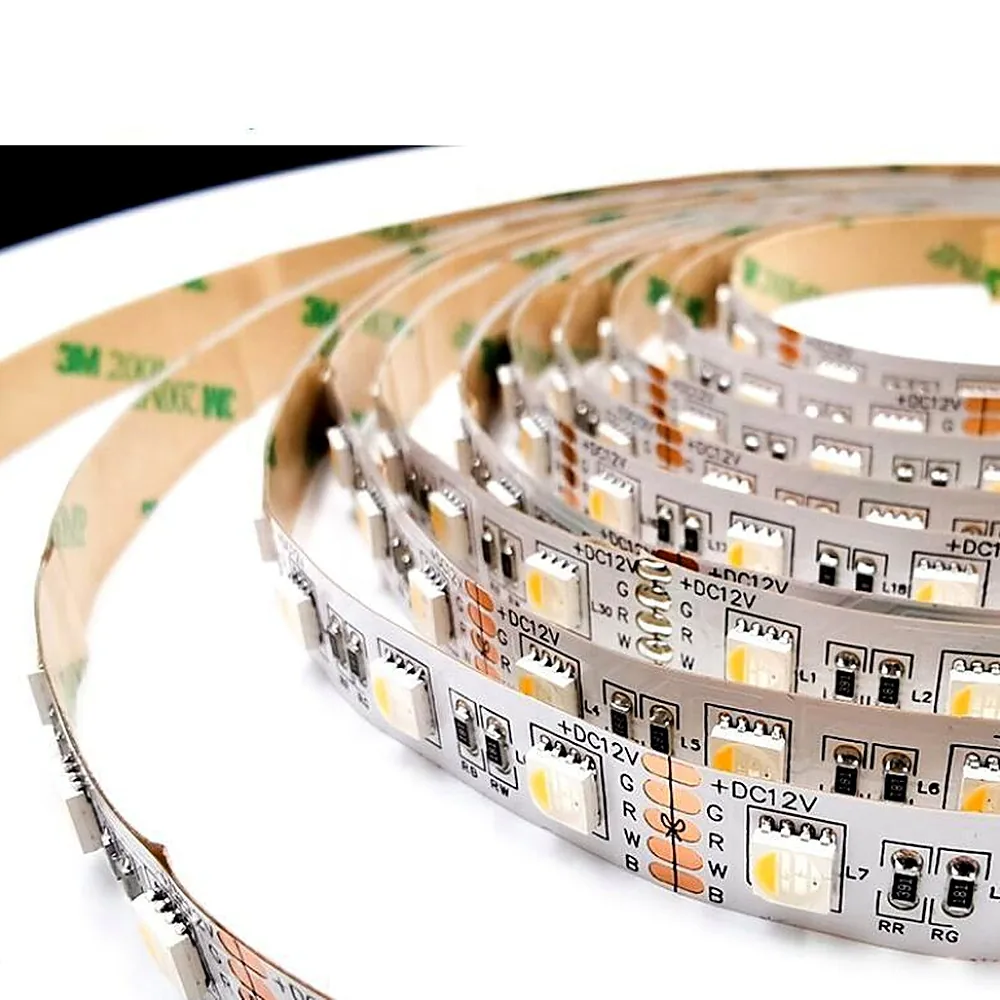

5050 RGBWW 4-in-1 LED Strip
5050 RGBWW 4-in-1 LED Strip — 12V / 24V
5050 RGBWW 4-in-1 LED strip with 12V and 24V supply options. Select the white color temperature when ordering.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
Engineered for the real install.
The 4-in-1 package combines RGB with one white-light component. In this product family, W denotes neutral white, CW cool white and WW warm white. RGBW and RGBWW are supplied as related versions with different white color temperatures.
Choose DC12V with a 3-LED cutting unit or DC24V with a 6-LED cutting unit. White color temperature is selected for the order; this does not establish independent warm-to-cool adjustment in one strip.
This is a non-IC strip. The supplier specifies an RGBCCT controller option, but its output configuration and wiring must match the ordered strip. Confirm the terminal layout and control mapping before selecting the controller; do not infer channel count or adjustable CCT from the controller name.
Highlighted features
- 4-in-1: RGB plus one white-light component
- DC12V / DC24V
- White color temperature selected at order
Technical parameters
- Cutting Unit
- 12V: 3 LEDs; 24V: 6 LEDs
- IP Grade
- IP20/IP65/IP67/IP68
- Beam Angle
- 120°
- Size
- L5000*W10mm
- Color
- RGBWW
- LED Type
- SMD5050
- Control Mode
- RGBCCT controller option — confirm wiring/output
- Voltage
- DC12V / DC24V
- Lifespan
- 50,000 Hours
- 12V version — cutting unit
- 3 LEDs
- 24V version — cutting unit
- 6 LEDs
- White-light option
- W: neutral; CW: cool; WW: warm — select at order
Representative specs — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.
OEM & ODM — built to your spec.
Specify voltage, white color temperature, run lengths and controller wiring for the quotation.
