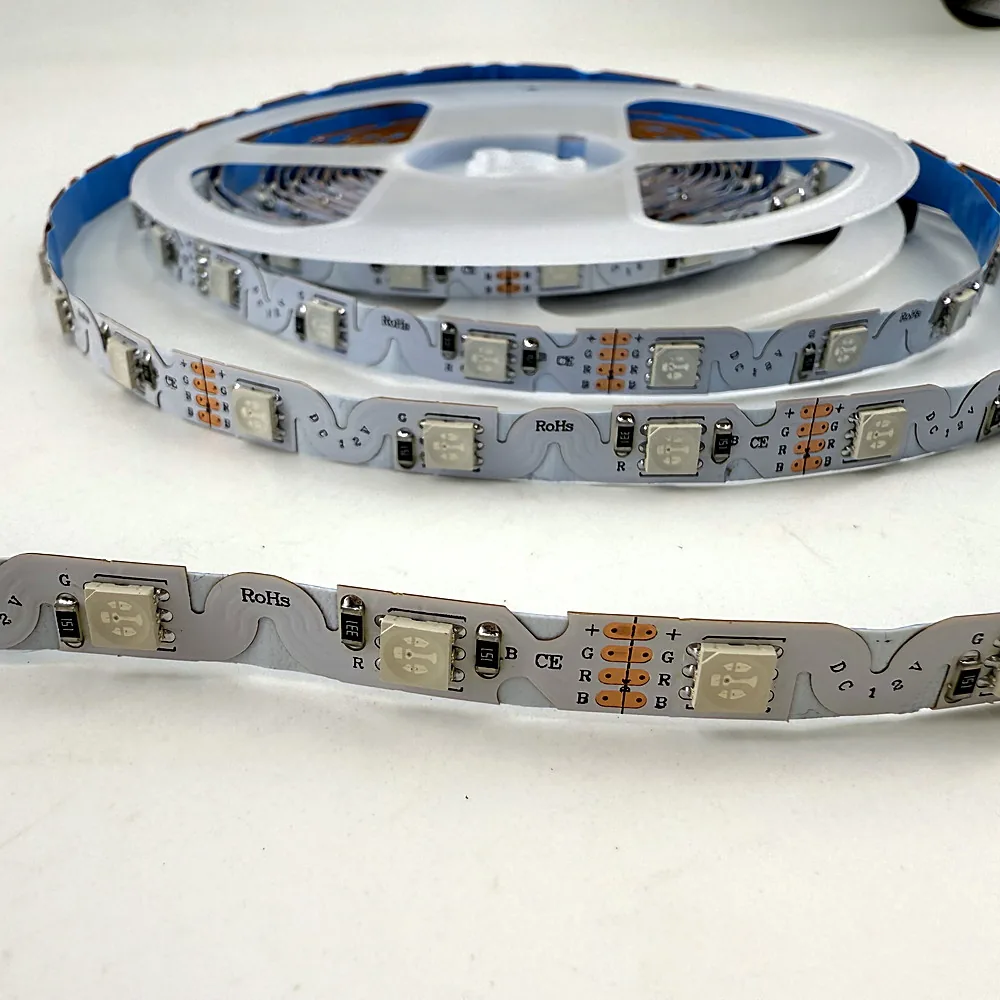

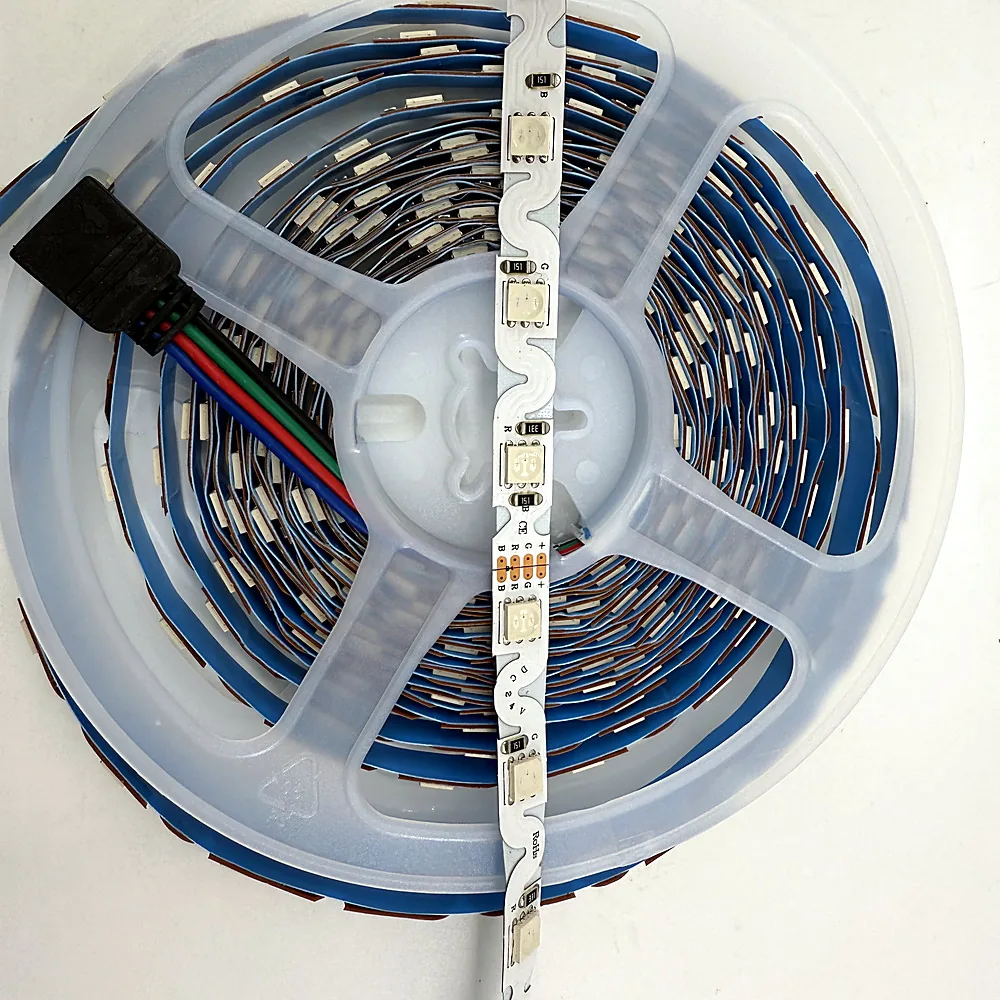

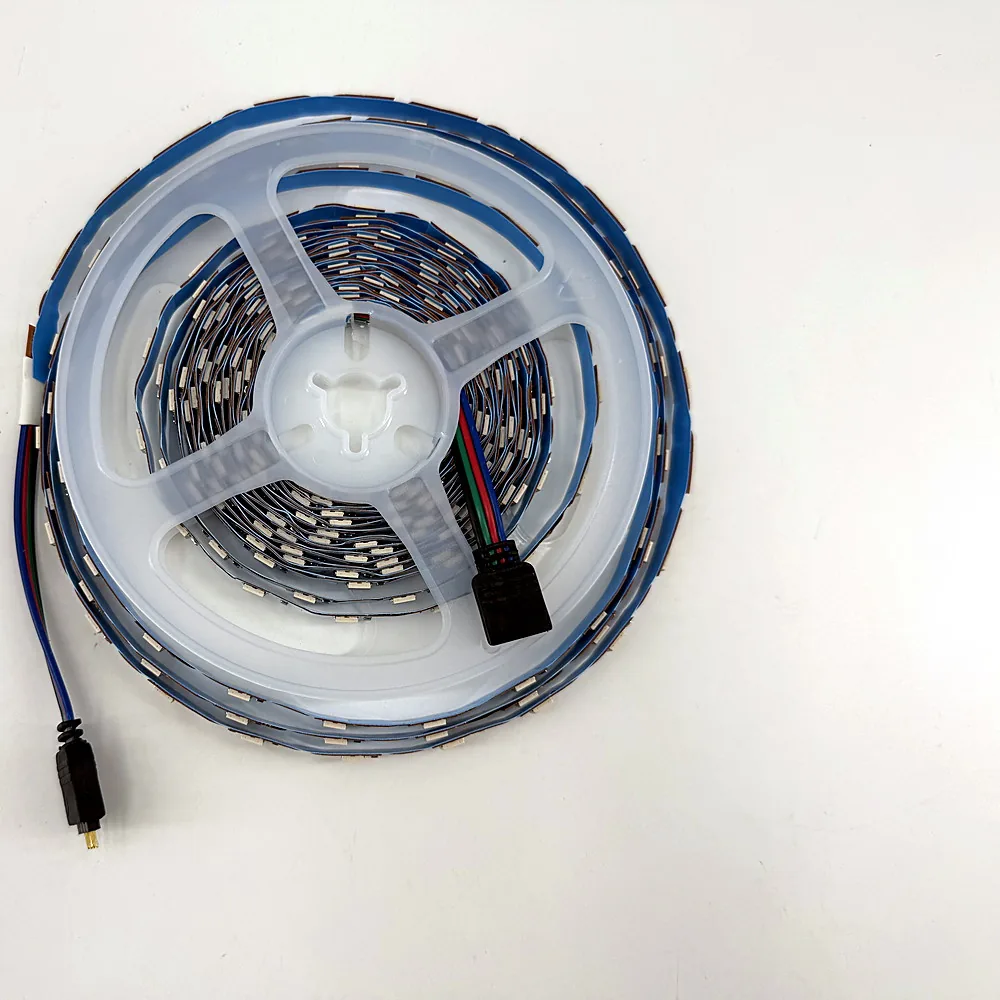

DC24V 5050 RGB S-Shape LED Strip
5050 S-Shaped Addressable RGB LED Strip
Addressable RGB S-shaped LED strip with SPI control, 60 LEDs/m, a 3-LED cutting unit and an 8mm PCB width.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
Engineered for the real install.
This S-shaped strip is the addressable RGB configuration, not an RGBW or tunable-white strip. Its SPI control uses what the supplier describes as the WS2815 dual-signal protocol; the exact fitted IC is to be confirmed for the ordered version.
The standard supply has 60 LEDs per meter, a cutting unit of 3 LEDs and an 8mm PCB width. Cut spacing and controllable pixel grouping are separate specifications: confirm LEDs per pixel rather than deriving them from the cutting unit.

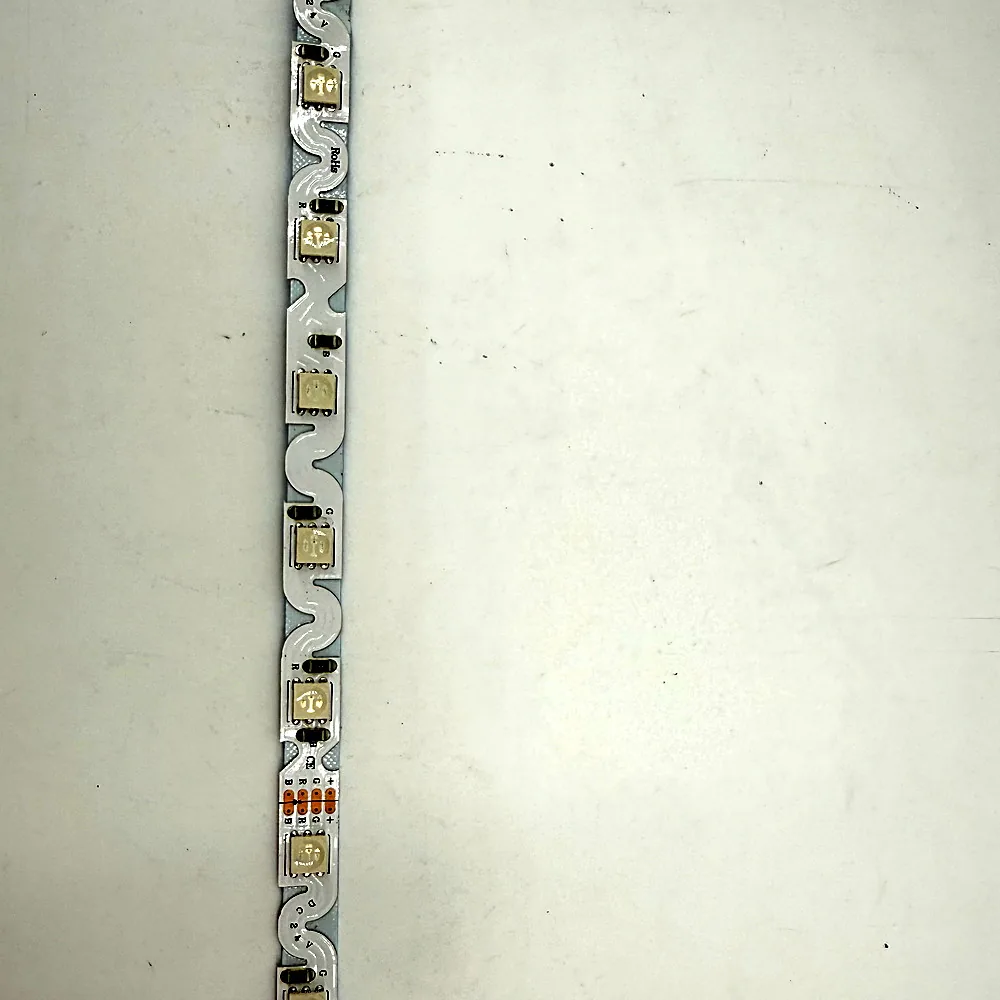

The S-shaped board supports flexible layout along the board. Confirm the permitted bend direction, installation method and minimum radius before installation; do not fold sharply. Specify the DC24V configuration and the required run lengths in the quotation request.
Highlighted features
- RGB
- SPI
- 60 LEDs/m
- Cut every 3 LEDs
- 8mm PCB width
Technical parameters
- Working Lifetime
- 50000 Hours
- Color
- RGB
- Beam Angle
- 120 Degree
- Ip Rating
- IP20/IP65
- PCB width
- 8mm
- Lamp Power
- 14w/m
- Type
- DC24V SMD 5050RGB Flex LED Strips
- Material
- FPC
- Voltage
- DC24V
- LED density
- 60 LEDs/m
- Cutting unit
- 3 LEDs
- Control interface
- SPI
- Supplier protocol description
- WS2815 dual-signal protocol; fitted IC to be confirmed
Representative specs — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.
OEM & ODM — built to your spec.
Specify run lengths, controller and installation path; confirm pixel grouping and bend limits for the ordered version.
