LED Point Light · PI-100ICRGB

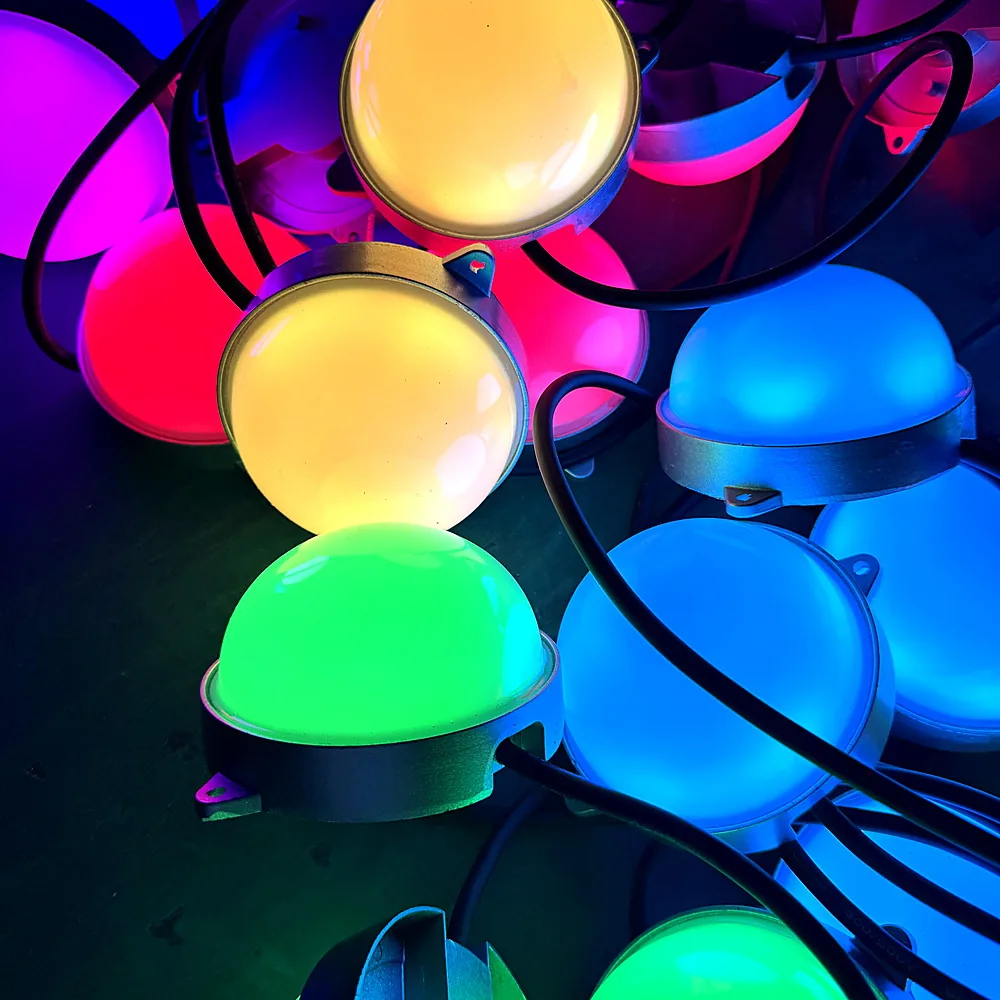

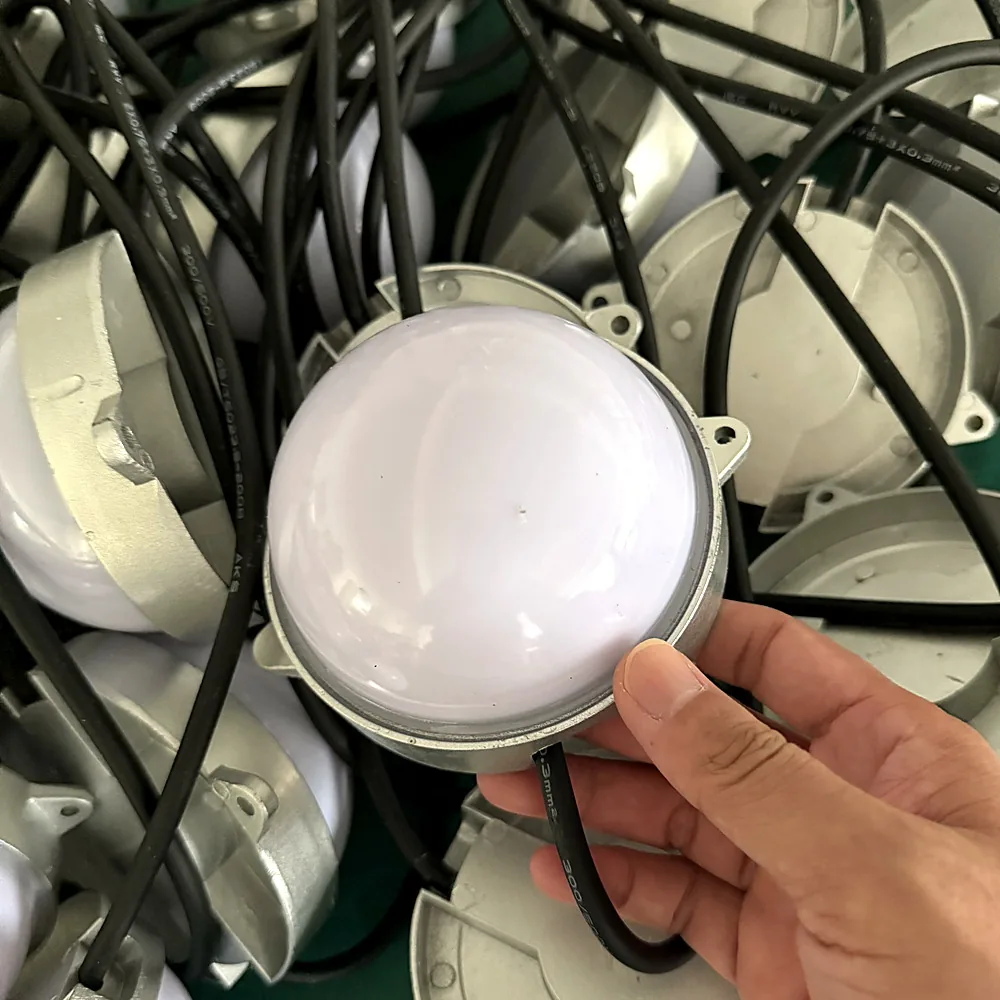

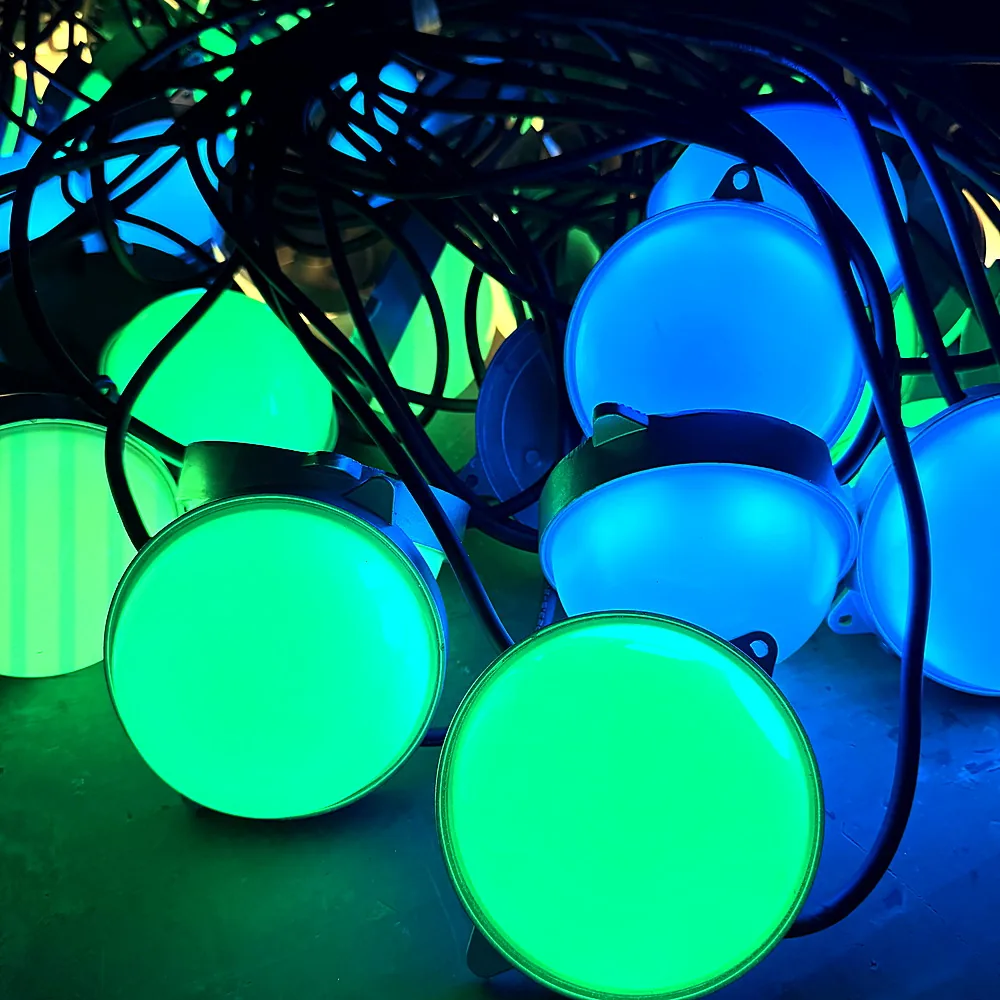

100mm Aluminum RGB LED Point Light
100mm DMX512 RGB Point Light — IP67
DC24V, IP67 RGB point light with DMX512 control, 3 channels per node and a 5-pin M12 waterproof connector.
- Certification
- CE · ROHS · BIS
- MOQ
- 1 piece
- Delivery
- 5–7 days
- Warranty
- 2 years
Reply within 8 hours · Free sample for qualified projects
Overview
Engineered for the real install.

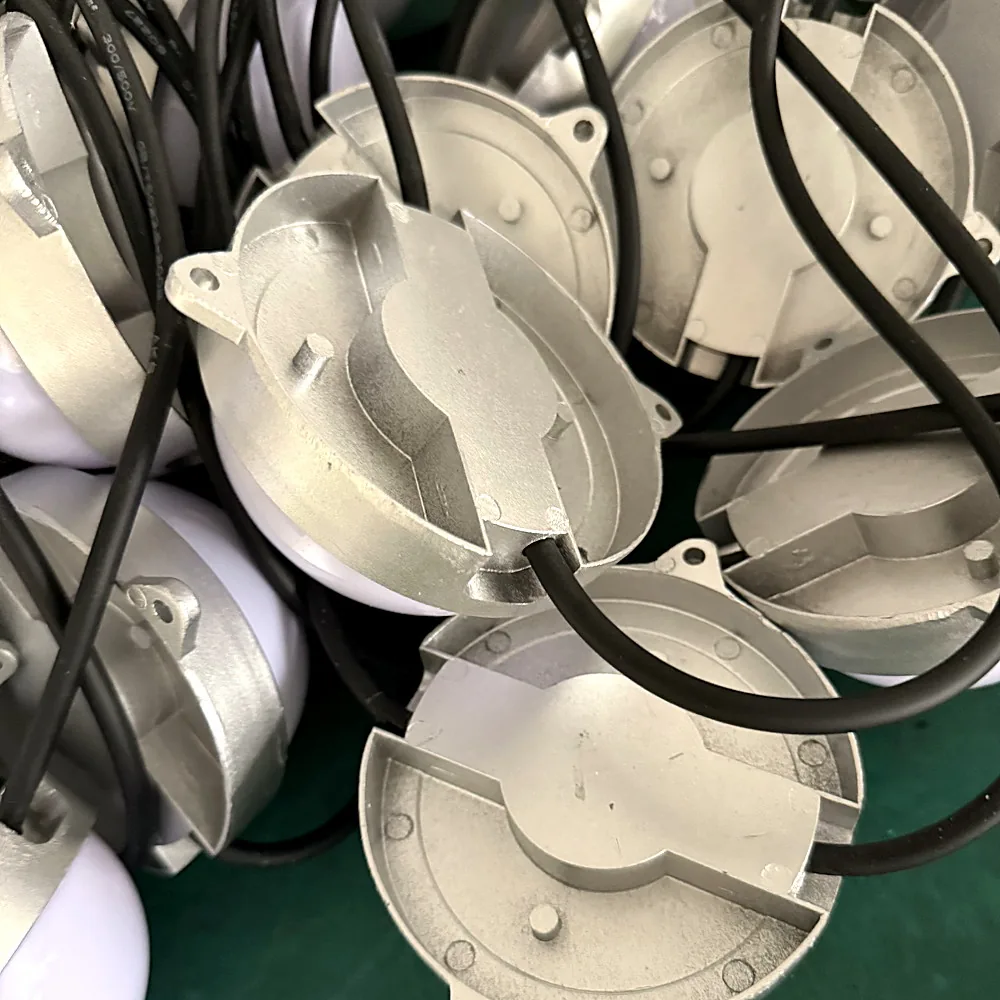

The PI-100ICRGB is a 100mm aluminum-and-PC RGB point light for building facades. The confirmed configuration uses DC24V, DMX512 control and IP67 protection.
Each node is one independently controlled RGB pixel occupying 3 channels. Addresses are assigned using a DMX address writer. DMX512 identifies the protocol, not the fitted driver-IC part number.
The fixture uses a 5-pin M12 waterproof connector. Obtain the complete pinout, mating view and addressing compatibility for the exact fixture/writer pairing before connection. A matching pin count alone does not prove compatibility; the fifth pin and pin sequence must not be guessed.
Highlighted features
- DC24V
- DMX512
- IP67
- 1 independently controlled RGB pixel per node
- 3 channels per node
Technical parameters
- Color
- IC RGB
- LED Quantity
- 6PCS
- Power
- 9W
- Size
- Φ100mm
- IP Rating
- IP67
- Working Temperature
- -40℃-60℃
- Material
- Aluminum Profiles + PC
- Input voltage
- DC24V
- Control interface
- DMX512
- Channels per node
- 3 (RGB)
- Pixels per node
- 1
- Address setting
- DMX address writer
- Connector
- 5-pin M12 waterproof connector
Representative specs — configurable per order. Request the full datasheet.
- Payment
- T/T
- Supply
- Large factory stock
- Origin
- Shenzhen, China
- OEM / ODM
- Welcome
Built for these venues.
OEM & ODM — built to your spec.
Provide fixture quantity, layout, controller and cable requirements. Confirm the full 5-pin M12 wiring and the supported address writer before ordering.
